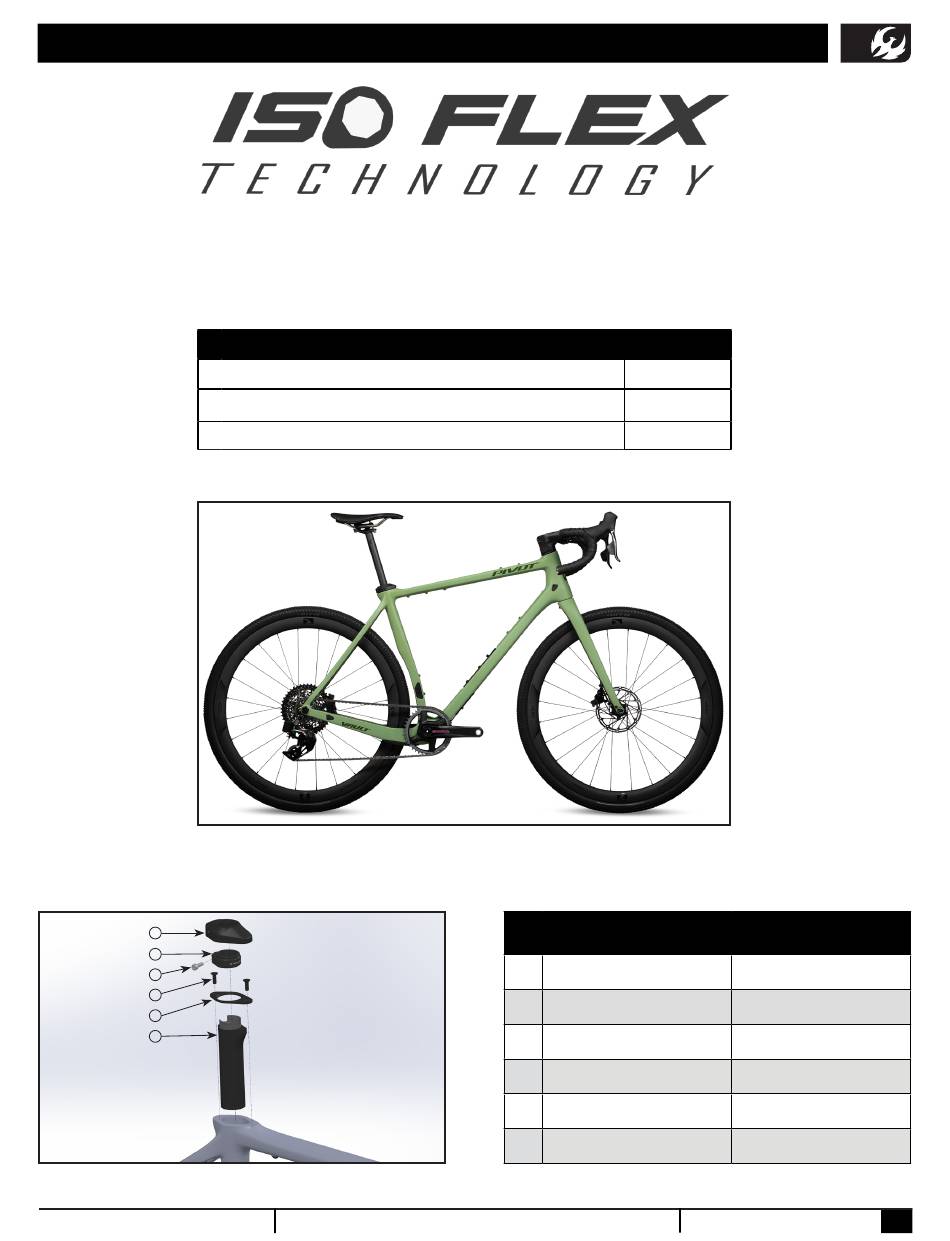

The Vault uses Pivot's patented ISO FLEX Technology. This frame feature completely isolates the seat-
post from the frame for extraordinary comfort without compromising the frames stiffness and control.
This guide will walk you through the steps to remove and install the insert for maintenance.
1. ISO FLEX Schematic and Parts
2. ISO FLEX Removal
3. ISO FLEX Installation
Exploded view of the ISO FLEX Technology and the corresponding individual parts.
1
2
3
4
5
6
pivotcycles.com
TABLE OF CONTENTS
info@pivotcycles.com
PAGE
1
2
3
#
Part Number
1
F P -IS OF L E X- RUB - CA P -V 1
2
F P - CL M - F L X P O S T-27.2-V 2- R 1
3
F P - S C W- S CK- M5* 1 5
4
F P - S C W- F LT- M5* 1 5
5
F P -IS OF L E X-TOP - P LT-V
6
F P - S LV- S T P O S T-27.2-V 2- R 1
1.877.857.4868
Description
Seat Post Clamp Rubber Cap
27.2mm Seat Post Clamp
Seat Post Clamp Screw
M5x15 Flat Head Top Cap bolts
Seat Post Top Plate
27.2mm Seat Post Insert
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vault and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pivot Vault

Summary of Contents for Pivot Vault

  • Page 1 The Vault uses Pivot's patented ISO FLEX Technology. This frame feature completely isolates the seat- post from the frame for extraordinary comfort without compromising the frames stiffness and control. This guide will walk you through the steps to remove and install the insert for maintenance.
  • Page 2 VAULT ISO FLEX REMOVAL 1.) Slide the Seat Post Clamp Cap off of the seat 2.) Loosen the Seat Post Clamp Screw with a post clamp and up the seat post to give you 4mm hex wrench and remove the seat post.
  • Page 3 VAULT ISO FLEX INSTALLATION 1.) Grease the insert with a rubber or silicone 2.) Gently press down on the ISO FLEX insert to safe grease. place it down into the frame. 3.) Grease the Top Cap Bolts' threads and heads.
  • Page 4 VAULT ISO FLEX INSTALLATION 8.) Apply some grease to the seat tube and 7.) Slide the Seat Post Clamp Rubber Cap onto insert the seat post into the frame. the seatpost if it was removed. 9.) Slide the Seat Post Clamp Rubber Cap down 10.) There is an opening in the Rubber Cap to...
