3 1/2-Inch SCSI Disk Drive Installation Instructions
EK–SC3DR–IN. A01
November 1992

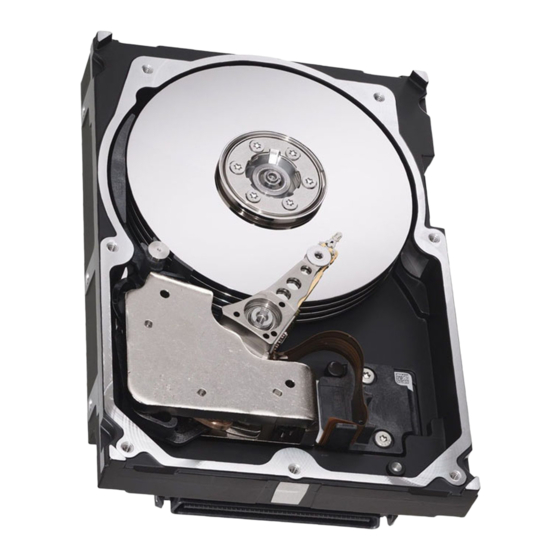

This document illustrates how to install all 3 1/2-inch RZ-Series SCSI drives into
the DEC 4000 AXP™ Model 600 Series system.
© Digital Equipment Corporation 1992. All rights reserved.
S2125
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Digital Equipment RZ-series
Summary of Contents for Digital Equipment RZ-series
- Page 1 3 1/2-Inch SCSI Disk Drive Installation Instructions EK–SC3DR–IN. A01 November 1992 This document illustrates how to install all 3 1/2-inch RZ-Series SCSI drives into the DEC 4000 AXP™ Model 600 Series system. © Digital Equipment Corporation 1992. All rights reserved.
- Page 2 1 RZ-Series 3 1/2-Inch Fixed Disks Figure 1 SCSI Terminators and Resistor Packs for 3 1/2-Inch Drives SCSI Drive Resistor Packs (3) Power Termination Jumpers (2) RZ Drive Bottom MLO-009435 Caution When adding a SCSI 3 1/2-inch disk drive to the DEC 4000 AXP system, remove the three resistor packs and two power termination jumpers shown in Figure 1 to avoid bus problems.
- Page 3 Figure 2 RZ-Series 3 1/2-Inch Storage Assembly SCSI Data Cable Pull handle to remove connector from drive. SCSI Half-Height Half-Height Terminator SCSI Drive SCSI Drive Bezel Assembly Assembly Tray Release SCSI ID Latch Select Cable SCSI ID Module SCSI Data Cable...
- Page 4 Figure 3 RZ-Series 3 1/2-Inch Fast SCSI Storage Assembly SCSI Data Cable Pull handle to remove connector from drive. Half-Height Fast SCSI Drive Half-Height Bezel Assembly Fast SCSI Drive Assembly SCSI ID Module SCSI ID Select Cable 4 8 V >...
- Page 5 Figure 4 RZ-Series 3 1/2-Inch Drive Selection 3 1/2-Inch Fixed-Media Storage Tray Bus Node ID Bus Node ID Bus Node ID Bus Node ID Front Panel MLO-009819...
