Summary of Contents for Digital Equipment TLZ06
- Page 1 TLZ06 Cassette Tape Drive Owner’s Manual Order Number: EK-TLZ06-OM. 004 Digital Equipment Corporation...
- Page 2 July 1993 The information in this document is subject to change without notice and should not be construed as a commitment by Digital Equipment Corporation. Digital Equipment Corporation assumes no responsibility for any errors that may appear in this document.
- Page 3 Für Bundesrepublik Deutschland For Federal Republic of Germany Pour la République féderal d’Allemagne BESCHEINIGUNG DES HERSTELLERS/IMPORTEURS Dieses Gerät ist in Übereinstimmung mit den Bestimmungen der BMPT Vfg.243/1991 und Vfg.46/1992 in Verbindung mit EN55022:1987 (DIN VDE 0878-3:11.89), oder Vfg.1046/1984 mit Vfg. 483/1986, funkentstört. Es trägt als Nachweis der EMV-Konformität entweder eine Konformitätskennzeichnung oder das VDE-Funkschutzzeichen.
-
Page 5: Table Of Contents
TLZ06 Models ........ - Page 6 Cassette LED ........5–1 TLZ06 Cassette Tape ........5–2 Indicators .
- Page 7 3–3 5–1 TLZ06 LED Status ....... . . 5–3 6–1 Problem Solving .
- Page 8 TLZ06 Cassette Tape Drive Specifications ....A–1 TLZ06-DA Noise Declaration ......A–2 A–2...
-
Page 9: Tlz06 Cassette Tape Drive Product Description
2. The 4.0 GB measurement is typical for a 2-to-1 data compression ratio, but the actual ratio is dependent on the data. The maximum time to backup (read or write) on a TLZ06 cassette tape in a continual (streaming) mode is system dependent. The efficient use of streaming mode is determined by your operating system. -
Page 10: System Support
1.1.1 System Support As of this printing, the TLZ06 drive is supported by VAXstation systems and DECstation systems. Your particular system must have a standard SCSI (small computer system interconnect) port, or a KZQSA (Q–bus to SCSI adapter). VAXstation systems can use the VMS or ULTRIX operating systems. -
Page 11: Tlz06 Models
Model TLZ06-AA — a 3 1/2-inch, half-height drive that mounts internally (Figure 1–2). • Model TLZ06-BA — consists of a 3 1/2-inch drive in a 5 1/4-inch, half- height form factor allowing the drive to be mounted internally (Figure 1–2). •... -

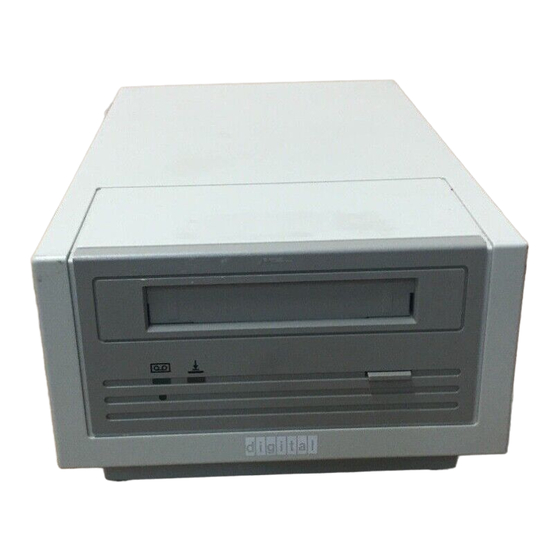

Page 12: Model Tlz06-Da (Tabletop)
Figure 1–1 Model TLZ06-DA (Tabletop) Front View Power On Indicator Tape Unload Button Tape/Activity Indicator Write Protect Rear View Indicator SCSI Connectors − SCSI ID Switch On/Off Switch Power Connector 1–4 TLZ06 Cassette Tape Drive Product Description... -
Page 13: Model Tlz06-Aa (3 ½-Inch Chassis) And Tlz06-Ba (5 ¼-Inch Form Factor)
Figure 1–2 Model TLZ06-AA (3 ½-inch Chassis) and TLZ06-BA (5 ¼-inch Form Factor) Front View Write Protect Tape Unload Tape Unload Tape Unload Tape Unload Tape Unload Tape Unload Button Button Button Button Button Button Tape/Activity Indicator SCSI Connector Remote ID Pins... -
Page 14: Checking Your Shipment For Model Tlz06-Da
One 50-pin to 50-pin SCSI signal cable (PN 17-01351-01) for drive to drive connections only • Power cable • One blank cassette tape (4 mm x 90 m), (PN TLZ06-CA) • One head cleaning cassette (PN TLZ04-HA) • SCSI terminator (PN 12-30552-01) If your shipment is incomplete, please contact your Digital sales representative. -
Page 15: Installing The Tabletop Drives
Installing the Tabletop Drives 2.1 General This chapter shows you how to install the TLZ06-DA tabletop cassette tape drive or TLZ6L-DA tabletop auto loader on systems with an external SCSI connector. Read the following sections to complete the installation. 2.2 Shut Down, Halt, and Power Off the System... -
Page 16: Selecting The Scsi Address
1. Locate the SCSI address switch at the rear of the drive. 2. Select the SCSI address for the drive: • TLZ06-DA — Press the + or - button until the desired address (0 through 7) appears in the window. •... -
Page 17: Connecting A Scsi Signal Cable - Drive To System
Make sure that the last SCSI device on the bus is terminated correctly. 2.4 Connecting a SCSI Signal Cable — Drive to System If you are connecting a TLZ06-DA drive or TLZ6L-DA auto loader directly to your system, you should use the SCSI signal cable supplied as part of your system installation kit. -
Page 18: Adding Another Tabletop Drive - Drive To Drive
The tabletop drives have an autoranging power supply. Refer to Table A–1 for voltage specifications. To connect the power cable, proceed as follows: 1. Be sure that the TLZ06-DA drive or TLZ6L-DA auto loader power switch is off (0). 2. Connect the power cable to the TLZ06-DA drive or TLZ6L-DA auto loader power connector. -
Page 19: Installing The Tlz06-Aa/Ba Cassette Tape Drive
Read the following sections to complete the installation. 3.2 Shut Down, Halt, and Power Off the System If you are installing a TLZ06 drive on a running system, have your system manager perform the following steps: 1. Shut down the operating system. -
Page 20: Selecting The Scsi Address For The Tlz06-Aa/Ba Drive
Your system uses a SCSI ID switch (Figure 1–2) to identify, or address, the TLZ06-AA/BA. The SCSI ID is factory set at 0. If you are installing the TLZ06-AA/BA on a system that is already using SCSI ID 0, use any available SCSI ID. -
Page 21: Scsi Address Switches
S5 Parity (ON,Enabled) S6 Compression (ON, Disabled) (OFF, Reserved for future use) S8 Self−Test (ON, Enabled) NOTE: The drive must be powered down and then powered up for new switch settings to take effect. Installing the TLZ06-AA/BA Cassette Tape Drive 3–3... -
Page 22: Other Optional Switch Settings
If the default settings are correct for your system, go to the next section. NOTE Although S6 is the default on (compression disabled), you may turn compression on and off with a software switch. Consult Appendix B for the command format. 3–4 Installing the TLZ06-AA/BA Cassette Tape Drive... -
Page 23: Connecting A Scsi Signal Cable - Drive To System
3.4 Connecting a SCSI Signal Cable — Drive to System If you are connecting a TLZ06 drive directly to your system, you should use a SCSI signal cable supplied as part of your system installation kit. If you do not have this cable, contact your Digital sales representative. You should use a cable supplied by Digital Equipment Corporation. -
Page 25: Verifying Tlz06 Cassette Tape Drive Installation
Verifying TLZ06 Cassette Tape Drive Installation 4.1 General To verify successful installation of the TLZ06 drive, execute the power-on self-test (POST). 4.1.1 POST To execute POST: 1. For a tabletop unit, press the power switch to the ON or | position (Figure 1–1). - Page 26 After successful execution of POST, have your system manager restart the system and assign a device name to your TLZ06 drive. Optionally, you can run a full system or SCSI bus test. See your system owner’s manual for specific instructions.
-
Page 27: Using The Tlz06 Cassette Tape Drive
(Figure 1–1). It also shows you how to use cassette tapes. 5.2 Power Switch For a tabletop unit, press the power switch to turn the TLZ06 drive on or off. If you are not using the TLZ06 drive for prolonged periods of time, check with your system manager for the correct procedure to shut down your system or power off the drive. -
Page 28: Tlz06 Cassette Tape
Slide the tab to the left to write-protect the tape. • Slide the tab to the right to write-enable the tape. NOTE The tab is not visible when the cassette tape is loaded in the TLZ06 drive. Figure 5–1 TLZ06 Cassette Tape WRITE−PROTECT... -
Page 29: Tlz06 Led Status
Flashes green until test complete (1 to 4 minutes). Same as normal activity indication. Test complete, Resume normal operation, no failure. write-protected. Test failure, drive fault. Flashes amber, 2 Hz. Flashes green, 2 Hz. Using the TLZ06 Cassette Tape Drive 5–3... -
Page 30: Using The Cassette Tape
5.8 Using the Cassette Tape Digital Equipment Corporation recommends that you use DDS certified tapes. The following sections describe how to: • Handle and store tape (Section 5.8.1) • Write-protect tape (Section 5.8.2) • Insert and remove tape (Section 5.8.3) WARNING Always place the tape label in the recessed area on the cassette. -
Page 31: Setting The Write-Protect Tab On The Cassette Tape
The write-protect tab position is shown on the front panel Write-Protect indicator. 5.8.3 Inserting a Cassette Tape into the Drive Insert the TLZ06 cassette tape into the drive with the cassette’s write-protect tab on the right, facing you. Using the TLZ06 Cassette Tape Drive 5–5... -
Page 33: Preventive Maintenance And Problem Solving
6.1 Cleaning the Heads This section shows you how to perform TLZ06 head cleaning. The heads are the components that physically read and write data to and from the media (in this case, a cassette tape). - Page 34 CAUTION Never attempt to clean the heads in a manner other than described herein. Doing so will void the product warranty. To clean the heads, use the head cleaning cassette as follows: 1. Press the power switch ON to apply power to the drive. 2.
-
Page 35: Problem Solving
6.2 Problem Solving Table 6–1 describes drive problems and possible solutions. Table 6–1 Problem Solving Symptom Probable Cause Possible Solution Unable to back up or copy data Cassette write-protected. 1. Set write- to cassette tape. protect tab on cassette to write- enabled. -
Page 36: System-Based Diagnostics
6.2.1 System-Based Diagnostics Your system has system-based diagnostics that can be used to test the TLZ06 drive. System-based diagnostics are usually referred to in your system owner’s manual as console-based diagnostics, self-tests, or system exercisers. Refer to your system documentation for information about these diagnostics. -
Page 37: Decservice
6.3.3 DECservice DECservice offers a premium, on-site service for producing committed response to remedial service requests made during contracted hours of coverage. Remedial maintenance will be performed continuously until the problem is resolved, which makes this service ideal for customers requiring maximum service performance. -
Page 39: Tlz6L Auto Loader
Command Set as defined by SCSI-2. It is packaged in an industry standard 5.25-inch full-high form factor with an embedded TLZ06 tape drive. The TLZ6L auto loader model is not a field upgrade option for the TLZ06 tape drive; it must be purchased as a single unit. -
Page 40: Model Tlz6L-Aa, Front View
Figure 7–1 Model TLZ6L-AA, Front View Cassette Write Protect Eject Slot Select Dot Matrix Display Reserved LJ-03001-TI0 Figure 7–2 Model TLZ6L-AA, Top View Switchpack 1 Switchpack 2 LJ-03002-TI0 7–2 TLZ6L Auto Loader... -
Page 41: Model Tlz6L-Da, Front View
Figure 7–3 Model TLZ6L-DA, Front View Cassette Write Protect Eject Slot Select LJ-03387-TI0 TLZ6L Auto Loader 7–3... -
Page 42: Model Tlz6L-Da, Back View
Figure 7–4 Model TLZ6L-DA, Back View ID Select On/Off Switch SCSI Connector LJ-03386-TI0 7–4 TLZ6L Auto Loader... -
Page 43: Dot Matrix Display
7.3 Dot Matrix Display The indicators (Section 7.2) and the dot matrix display support the same four languages. The dot matrix display shows two types of messages: activity and status. 7.3.1 Activity Messages The dot matrix display has several activity messages: READ when the drive is reading, REWIND when it is rewinding, and so forth. -
Page 44: Operation
7.4 Operation The TLZ6L auto loader can be operated two ways: automatically or manually. It has two modes: Sequential and Random Access. 7.4.1 Automatic Operations During automatic operations, the TLZ6L auto loader can function in Sequential and Random Access modes at the same time. In Sequential mode, upon receipt of a SCSI unload command, the loader unloads the current cassette and automatically cycles to the next cassette in the magazine. -
Page 45: Single Cassette Operation
7.4.3 Single Cassette Operation If a magazine is in the drive, eject the magazine. When the mouth of the loader is empty, you can load a single cassette in the drive. The drive should accept the cassette and load it. To eject the cassette, press the eject button. -
Page 46: Switchpack 2
Table 7–3 SW1-1 and SW1-2 Settings Language SW1-1 SW1-2 English French German Spanish SW1-3 You select the Continuous Cycle mode by setting switch SW1-3. When you set this switch to on, the auto loader loads the first cassette after unloading the last cassette in Sequential mode. -
Page 47: Routine Maintenance
7.6 Routine Maintenance 7.6.1 Cleaning the Rollers Digital Equipment Corporation recommends that you clean the rollers about once every 6 months or after 10,000 load/unload cycles. Follow these steps: 1. Open the drawer and remove the magazine. -
Page 49: A Cassette Tape Drive Specifications
Cassette Tape Drive Specifications The following tables list the TLZ06 and TLZ6L cassette tape drive specifications. Table A–1 TLZ06 Cassette Tape Drive Specifications Characteristic Specification(s) Mode of operation Streaming, and start/stop Drive interface Small computer system interconnect (SCSI) Dimensions 22.5 mm 12 mm 29.5 mm... -
Page 50: Tlz06-Da Noise Declaration
Table A–1 (Cont.) TLZ06 Cassette Tape Drive Specifications Characteristic Specification(s) Internal SCSI cable length 130 mm (TLZ06-DA) Passes per cassette tape Power consumption Tabletop 12 W Drive Power requirements Tabletop (TLZ06-DA) 100 to 240 Vac, 0.3 A Drive (TLZ06-AA/BA) +5 Vdc, 0.89 A Drive (TLZ06-AA-BA) +12 Vdc, 0.2 A... -
Page 51: Tlz6L Cassette Tape Drive Specifications
Table A–3 TLZ6L Cassette Tape Drive Specifications Characteristic Specification(s) Mode of operation Start/stop Drive interface SCSI 2 Dimensions Industry standard 5¼-inch form factor Media See Table A–1 Bit density See Table A–1 Transfer rate See Table A–1 Recording format See Table A–1 Cassette capacity (typical) See Table A–1 Magazine capacity, 4-cartridge (typical) -
Page 52: Tlz6L-Da Noise Declaration
Table A–4 TLZ6L-DA Noise Declaration Acoustics - declared values per ISO 9296 and ISO 7779: LwAd LpAm (bystander positions) Idle 6.2 B 47 dBA Operating 6.2 B 47 dBA Schallemissionswerte - Werteangaben nach ISO 9296 und ISO 7779/DIN EN27779: LwAd LpAm (Zuschauerpositionen) Leerlauf 6,2 B... -
Page 53: B Enabling/Disabling Data Compression Under Ultrix And
Under ULTRIX and VMS B.1 ULTRIX TLZ06 Compression and Noncompression Modes The default mode for the TLZ06 tape drive is noncompression mode. To use the TLZ06 tape drive in compression mode, specify the device as: /dev/rmt?h or /dev/rmt?m To use the TLZ06 tape drive in noncompression mode, specify the device as: /dev/rmt?1 or /dev/rmt?a B.2 ULTRIX DUMP Utility... -
Page 54: Vms Tlz06 Compression And Noncompression Modes
B.3 VMS TLZ06 Compression and Noncompression Modes The default mode for the TLZ06 tape drive is noncompression mode. To use the TLZ06 tape drive in compression mode, specify: MEDIA_FORMAT=COMPACT software switch To use the TLZ06 tape drive in noncompression mode, specify:... -
Page 55: Index
5–2 installation verification, 4–1 location of buttons, switches connectors, 3–2 Inserting a cassette tape into the drive, 5–5 location of buttons, switches, connectors, Installing the TLZ06-AA/BA cassette tape 2–2 drive, 3–1 power button, 5–1 specifications, A–1 unload button, 5–1 using, 5–1... -
Page 56: Tlz06 Cassette Tape
TLZ06 cassette tape drive (cont’d) write-protect LED, 5–1 TLZ6L cassette tape drive specifications, A–1 Unload button, 5–1 Write-protect LED, 5–1 Write-protect tab, 5–5 Index–2...
