Summary of Contents for ICARO paragliders Sitta

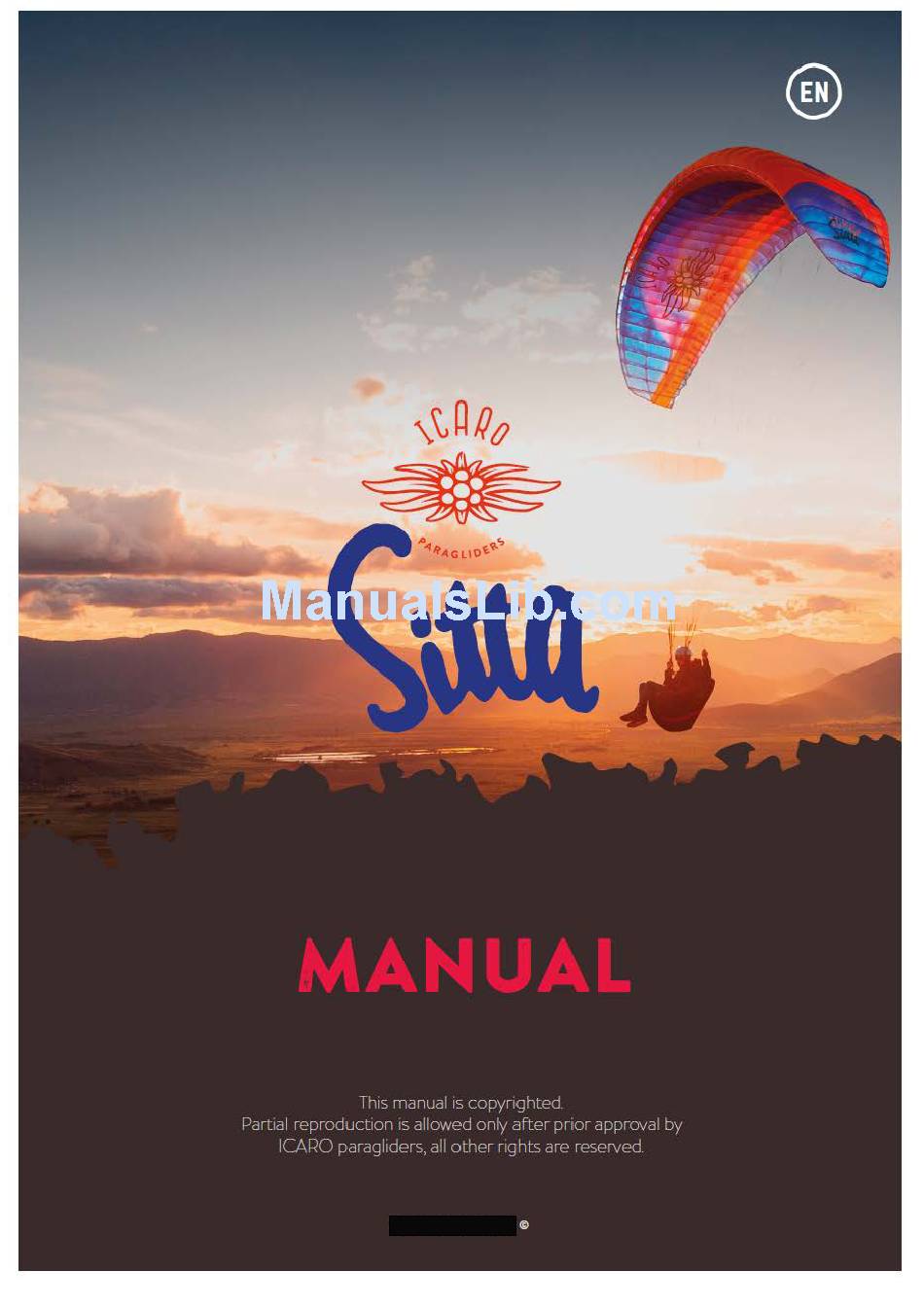

- Page 1 Page 1 VERSION 2.0/2015...
-
Page 2: Verification Of Checks And Repairs
Page 2 Verification of Checks and repairs SITTA Serial number: ……………………….…………… …………………………. Name/ Stamp First check by ICARO / date: ….………………… Check (C) Which repair/ Check? Performed by/ date Repair (R) Check valid until? Measured porosity data Measured data of the lines... -
Page 3: Table Of Contents
Page 3 TABLE OF CONTENTS VERIFICATION OF CHECKS AND REPAIRS ............2 FOREWORD ......................4 TO GET TO KNOW YOUR SITTA ................. 6 FLYING WITH THE SITTA..................9 ........................... 9 ARNESS ......................10 LIGHT PREPARATION ........................... 10 AUNCH ........................11 CTIVE FLYING .................... -
Page 4: Foreword
The small size of the SITTA and thereby the high wing loading make certain demands for the pilot. The glider is very predictable in its reactions but sometimes it requires fast and sensitive brake inputs. - Page 5 Our products are made with great care and state of the art. Each paraglider before it is delivered to the dealer or flight school is checked by ICARO paragliders but test flights are made only on a random basis. On that score an approved ICARO dealer or teacher of the flight school must inflate a new ICARO paraglider in the wind or should carry out the first flight before the wing is handed over to you.
-
Page 6: To Get To Know Your Sitta
Page 6 To get to know your SITTA Allowed for training Allowed /certified for aerobatics no/ no Allowed /certified for flying with passengers no/ no Allowed /certified for towing no / no Allowed /certified for flying with motor drive no / no... - Page 7 Velcro. Lines SITTA is a hybrid 3- line glider. Depending on the line level, we use different line diameters. The end control of all line lengths is documented for all paragliders produced by ICARO paragliders. The length of all lines is set correctly at the factory and should not be changed.
- Page 8 Page 8 1. Slide back the neoprene on the loop of the riser. Undo the loop to knot. 2. Untie the knot of the loop and move steps in mm opposed to the lines. Close the loop to knot and pull it tight. 3.
-
Page 9: Flying With The Sitta
Flying with the SITTA Harness The SITTA is certified for use with harnesses GH type and light weight harnesses (Attention to a corresponding protection Practically all modern harnesses are GH type harnesses. Older harnesses with fixed cross belts (GX type) are not certified and should not be used. ICARO does not recommend XC or competition harnesses for flying this glider model. -
Page 10: Flight Preparation
With the chest strap in a more closed position the glider also has more tendency to maintain a stable spiral, lengthening of the chest strap gives more feedback from the glider but decreases stability. ICARO paragliders recommends following settings: Take-off weight < 80kg 80 kg -100 kg >... -
Page 11: Active Flying
Page 11 When there is no pull from the lines use slight pressure on the brake. After a few accelerating steps and at the same time let go of the brakes gently, you will take off. Then use slight pressure again on the brakes to fly at a speed with minimal sink rate. -
Page 12: Turning
In this case you have to release the brake line! Landing The SITTA is faster than gliders with normal sizes but also easy to land. Always stand up in the harness in the landing position very early in order to be able to react as fast as possible to sudden events. -
Page 13: B-Line-Stall
When entering a spiral dive keep the brake on the outer curve released. Spiral dive with the SITTA must be finished actively! Bring your weight into a neutral position, release the brakes of the inner curve side and brake gently on the outer curve side until you notice that the wing starts to level out. -
Page 14: Wingover
Page 14 Wingover The SITTA is a very agile glider, and it is quite easy to get to an excessively high angle of bank in just a few turns. Practice wingovers gently at first, as there is a chance of quite large collapses at high bank angles. -
Page 15: Symmetric Collapse
If the collapsed part of the canopy is very big, you have to break the open side very dosed (not too much!) to avoid a stall. Symmetric Collapse Your SITTA normally re-inflates promptly in a symmetric collapse without pilot input. Applying the brakes symmetrically will speed things up. Emergency Steering Should it no longer be possible to steer your glider, for example due to a broken line, the glider may be steered by gently pulling on either rear riser. -
Page 16: Care Instructions, Repairs, Inspection
• Flying all the descent exercise will not normally pose a structural problem but aerobatic training does accelerate the ageing process dramatically. • There is no special method packing your glider. ICARO paragliders commends the “Cell to Cell-method bag because the reinforcements of the leading edge... -
Page 17: Repairs
Inspection It is important to have your SITTA inspected by a trained ICARO technician but it is also allowed to check your glider for yourself. In the annex you find the regulations for checks of certified gliders and items in order to perform a paraglider inspection you need. - Page 18 Page 18 CHANGING THE LINES IS ALLOWED ONLY ACCORDANCE WITH DESCRIPTION (PICTURES). WRONG CHANGING IS VERY DANGEROUS!! BEFORE PULL NEOPRENE BACK OVER THE LOOP CHECK AGAIN LOOP CLOSED CORRECTLY. PAY ATTENTION: SHOULD THE LOOP BE FIXED WRONG, SAFETY IS NO LONGER GIVEN! THE LINE MUST BE ATTACHED TO THE MIDDLE OF THE LOOP!
-
Page 19: Terms Of The Guarantee
• ICARO paragliders needs to be informed immediately after the discovery of a defect and the defective product must be sent to us for testing. -
Page 20: Annex
Technical specifications about your glider (type, serial number, size and year of production). Please call ICARO paragliders for information. A three week course at ICARO paragliders, specified to a glider type together with a legal flight license is the necessary prerequisites for permission to... -
Page 21: Inspection Instructions
The technician must report any unusual faults to ICARO paragliders within 3 days. Inspection Reference Only an authorized technician who has been trained by ICARO paragliders is authorized to sign and date the glider type label and sign the manual. -
Page 22: Lineplan
Page 22... -
Page 23: Description Of The Risers
Page 23 Description of the risers Mainline A´ Loop connecting riser and mainlines Brummelhook Handle Snap fastener handle accellerator Return pulley Riser main suspension Description of the canopy sail Cells, upper Lower sail Brake line Top line Middle line Main line Stable line Schematic picture of the canopy and lines... - Page 24 Page 24 Dispatch protocol/ Delivery content Inner bag Compression band Manual Outer rucksack Gift Sticker ……………………… …………………………………….. Date Signature...
