5. Software Control – Lightware Device Controller

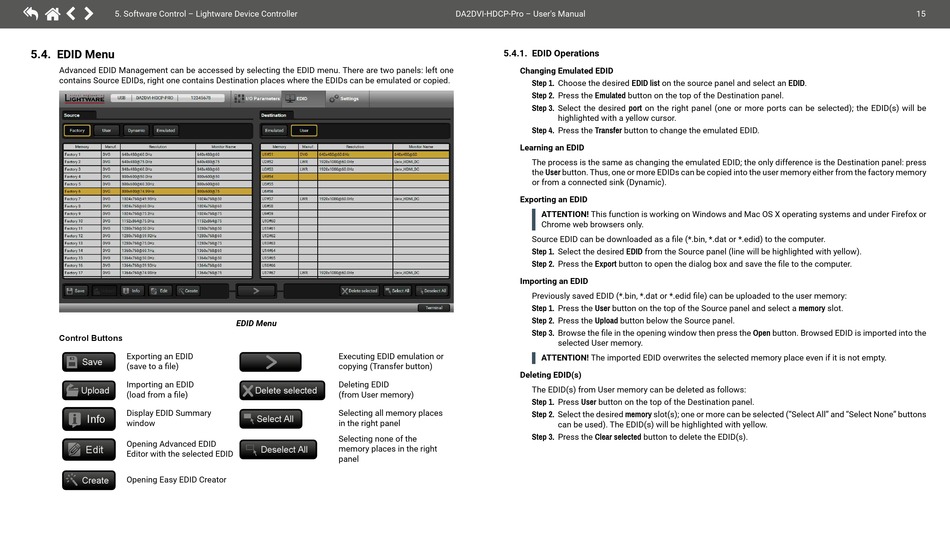

5.4. EDID Menu
Advanced EDID Management can be accessed by selecting the EDID menu. There are two panels: left one
contains Source EDIDs, right one contains Destination places where the EDIDs can be emulated or copied.
A
Control Buttons
A
Exporting an EDID
Save
(save to a file)
A
Importing an EDID
Upload
(load from a file)
A
Display EDID Summary
Info
window
A
Opening Advanced EDID
Edit
Editor with the selected EDID
Opening Easy EDID Creator
Create
EDID Menu
A
A
Executing EDID emulation or
copying (Transfer button)
A
Deleting EDID
Delete selected
(from User memory)
A
Selecting all memory places
Select All
in the right panel
Selecting none of the
memory places in the right
Deselect All
panel
DA2DVI-HDCP-Pro – User's Manual
5.4.1. EDID Operations
Changing Emulated EDID
Step 1. Choose the desired EDID list on the source panel and select an EDID.
Step 2. Press the Emulated button on the top of the Destination panel.
Step 3. Select the desired port on the right panel (one or more ports can be selected); the EDID(s) will be
highlighted with a yellow cursor.
Step 4. Press the Transfer button to change the emulated EDID.
Learning an EDID
The process is the same as changing the emulated EDID; the only difference is the Destination panel: press
the User button. Thus, one or more EDIDs can be copied into the user memory either from the factory memory
or from a connected sink (Dynamic).
Exporting an EDID
ATTENTION! This function is working on Windows and Mac OS X operating systems and under Firefox or
Chrome web browsers only.
Source EDID can be downloaded as a file (*.bin, *.dat or *.edid) to the computer.
Step 1. Select the desired EDID from the Source panel (line will be highlighted with yellow).
Step 2. Press the Export button to open the dialog box and save the file to the computer.
Importing an EDID
Previously saved EDID (*.bin, *.dat or *.edid file) can be uploaded to the user memory:
Step 1. Press the User button on the top of the Source panel and select a memory slot.
Step 2. Press the Upload button below the Source panel.
Step 3. Browse the file in the opening window then press the Open button. Browsed EDID is imported into the
selected User memory.
ATTENTION! The imported EDID overwrites the selected memory place even if it is not empty.
Deleting EDID(s)
The EDID(s) from User memory can be deleted as follows:
Step 1. Press User button on the top of the Destination panel.
Step 2. Select the desired memory slot(s); one or more can be selected ("Select All" and "Select None" buttons
can be used). The EDID(s) will be highlighted with yellow.
Step 3. Press the Clear selected button to delete the EDID(s).
15
