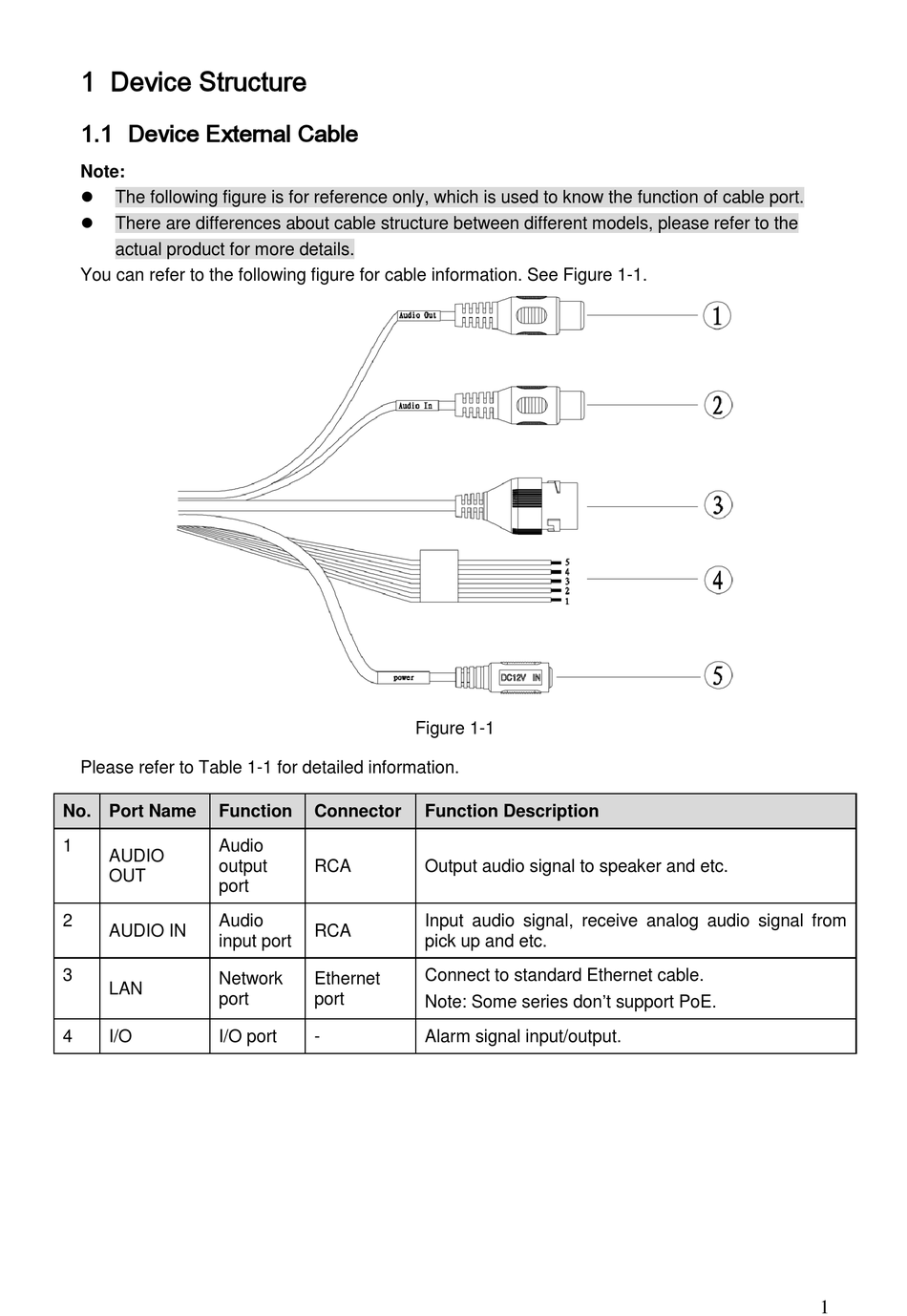

1 Device Structure

1.1 Device External Cable

Note:

The following figure is for reference only, which is used to know the function of cable port.

There are differences about cable structure between different models, please refer to the
actual product for more details.
You can refer to the following figure for cable information. See Figure 1-1.
Please refer to Table 1-1 for detailed information.
No. Port Name Function
1 Audio
AUDIO
output
OUT
port
2 Audio
AUDIO IN
input port
3
Network
LAN
port
4 I/O I/O port
Figure 1-1
Connector Function Description
RCA Output audio signal to speaker and etc.
Input audio signal, receive analog audio signal from
RCA
pick up and etc.
Connect to standard Ethernet cable.
Ethernet
port
Note: Some series don't support PoE.
- Alarm signal input/output.
1
