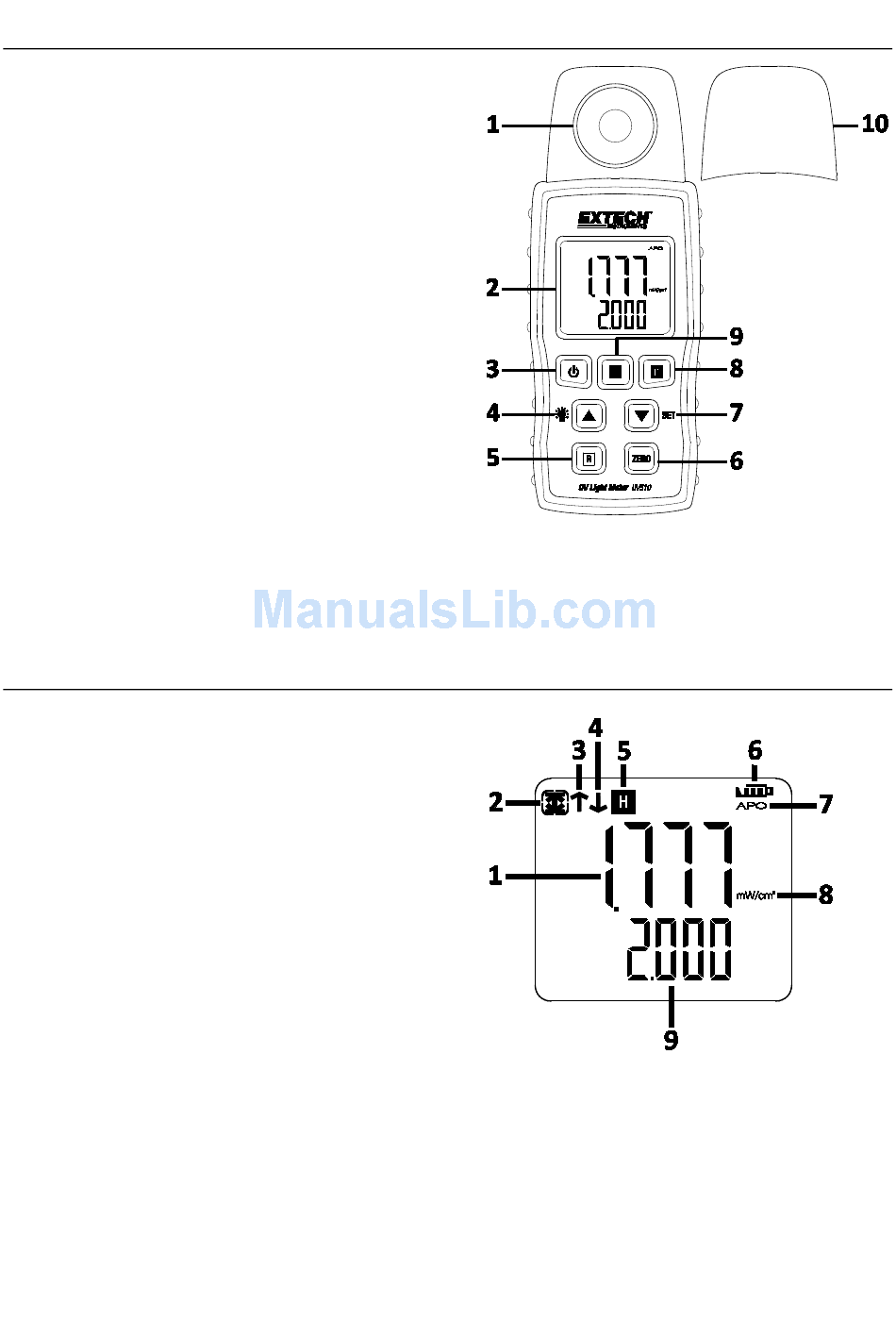

Meter Description
1.
Light Sensor
2.
LCD Display
3.
ON-OFF button
LCD Backlight button and ▲ button
4.
5.
Range button
6.
Zero button
SET and ▼ button
7.
8.
Record button (max/min)
9.
Hold button
10. Light sensor cover
Note: Battery compartment and tripod mount on rear of meter
LCD Description
1.
Primary Display
2.
MAX/MIN Record Icon
3.
MAX Icon
4.
MIN Icon
5.
Display Hold Icon
6.
Battery Indicator
7.
Auto Power OFF
8.
Unit of measure (mW/cm
9.
Selected Range Display
2
)
3
UV510-en-GB_V1.0 5/17
