AXIOMTEK GOT3156T-832 User Manual

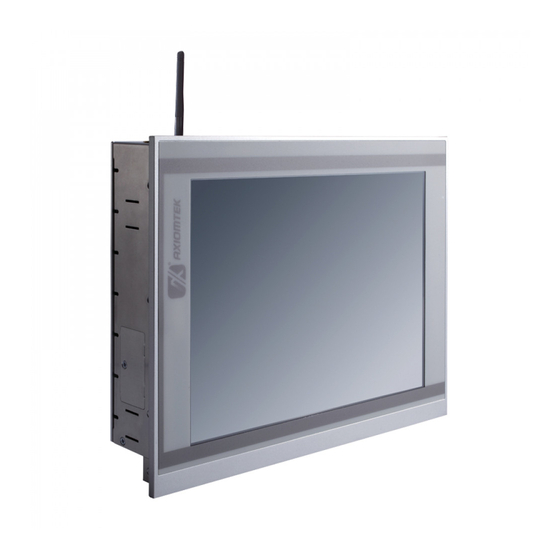

All-in-one 15” xga tft fanless compact-size panel pc
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
GOT3156T-832
All-in-One
15" XGA TFT Fanless
Compact-Size PANEL PC
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GOT3156T-832 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AXIOMTEK GOT3156T-832

Summary of Contents for AXIOMTEK GOT3156T-832

  • Page 1 GOT3156T-832 All-in-One 15” XGA TFT Fanless Compact-Size PANEL PC User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Disconnect the power cords from the GOT3156T-832 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the GOT3156T-832 Series is properly grounded.

  • Page 4: Table Of Contents

    Table of Contents CHAPTER 1 INTRODUCTION ................1 CHAPTER 2 HARDWARE AND INSTALLATION ............7 ....................8 PEN BACK COVER ..................9 CARD NSTALLATION ................10 UMPER AND WITCH ETTINGS ................... 12 PORT ONNECTOR ....................... 13 THERNET / VESA ..............13 OUNTINGS ANEL HDD I...
  • Page 5 This page is intentionally left blank.

  • Page 7: Chapter 1 Introduction

     I/O Outlets  Package List General Description The GOT3156T-832 adopts a 15-inch XGA TFT LCD with 450-nit brightness and ® an Intel Atom processor N2600 1.6 GHz to provide excellent computing performance and thermal resistance. This fanless platform is especially designed for operating under heavy-duty environment including steel refinery, oil pipe, ship, machine maker operating systems and many more.

  • Page 8: Specifications

    WLAN Antenna Supported (optional) GOT3156T-832 has a PCI Express Mini Card slot for optional add-ons such as wireless LAN card for 802.11 b/g connections & 3G/GPRS application, graphics-enhanced video card, universal analog TV/FM tuner/AV capture card, and more.

  • Page 9: System Specification

    GOT3156T-832 User’s Manual Back  Ethernet  Two Gigabit Ethernet  Audio  One Line-out  Expansion  One Mini card  Storage  One slot for CF card  One SATA  Power connector  Phoenix power connector System Specification ...
  • Page 10 GOT3156T-832 User’s Manual Back Dimensions and Outlines The following diagrams show the dimensions and outlines of GOT3156T-832. Introduction...
  • Page 11 GOT3156T-832 User’s Manual Back I/O Outlets Please refer to the following illustration for I/O locations of the GOT3156T-832. Function Function POWER SWITCH (ATX) COM 1 (RS-232/422/485) Power Input connector (phoenix) COM 2 (RS-232) type) COM 4 (RS-232) Ethernet (RJ-45) COM 3 (RS-232) Dual USB 2.0 ports...

  • Page 12: Packing List

    When you receive the GOT3156T-832, the bundled package should contain the following items:  GOT3156T-832 unit  Driver CD  Phoenix connector  Panel mount kit  Screws for HDD If you cannot find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...

  • Page 13: Hardware And Installation

    Back Chapter 2 Hardware and Installation The GOT3156T-832 provides rich I/O ports and flexible expansions for you to meet different demand, for example CF card. The chapter will show you how to install the hardware. It includes: Open back cover ...

  • Page 14: Open

    GOT3156T-832 User’s Manual Back Open back cover This section tells users how to open back cover. Please follow the steps below. Step 1 Unscrew 14 screws on the back cover. Please refer the photo below. Step 2 Remove the back cover.

  • Page 15: Cf Card Installation

    GOT3156T-832 User’s Manual Back CF card Installation ™ The GOT3156T-832 provides one CF slot for users to install CompactFlash card. Please refer to the following instructions for installation: Step 1 Unscrew a screw on the cover of CF card slot on left side of GOT.

  • Page 16: Jumper And Switch Settings

    2 jumper pins to close. And remove jumper clip from 2 jumper pins to open. The following illustration shows how to set up jumper. Before applying power to GOT3156T-832, please make sure all of the jumpers and switch are in factory default position. Below you can find a summary table and onboard default settings.
  • Page 17 2.3.1 COM1 Configuration The COM1~4 are a standard DB-9 connector. Those connectors are equipped with The GOT3156T-832 has four serial ports. COM1 is RS-232/422/485, while COM2 to COM4 are RS-232. The following table shows you set COM1 port mode: Description...

  • Page 18: Com Port Connector

    GOT3156T-832 User’s Manual Back 2.3.3 Auto Power On (JP4) If JP4 is enabled for power input, the system will be automatically power on without pressing soft power button. If JP4 is disabled for power input, it is necessary to manually press soft power button to power on the system.

  • Page 19: Ethernet

    GOT3156T-832 User’s Manual Back 2.5 Ethernet The GOT3156T-832 is equipped with a high performance Plug and Play Ethernet interface, full compliant with IEEE 802.3 standard, and can be connected with a RJ-45 LAN connector. Please refer to detailed pin assignment list below:...
  • Page 20 GOT3156T-832 User’s Manual Back VESA mount: Hardware and Installation...

  • Page 21: Hdd Installation

    GOT3156T-832 User’s Manual Back 2.6.2 Panel-mount Kit Assembly The GOT3156T-832 is designed for panel mount application. To mount the GOT3156T-832, the standard set of mounting kit (included in the system packaging) is needed. HDD Installation The GOT3156T-832 provides a convenient Hard Disk Drive (HDD) bracket for users to install 2.5”...
  • Page 22 GOT3156T-832 User’s Manual Back Step 3 Fix the HDD on bracket by 4 screws. Hardware and Installation...

  • Page 23: Dram Installation

    Fix the HDD bracket into the system, and plug the data and power cable to HDD. Installation completes. DRAM Installation The GOT3156T-832 provides one 204-pin DDR3 SODIMM socket that support system memory up to 2GB. Please follow steps below to install the memory modules: Step 1 Refer to section 2.1 to open the back cover and find out DIMM socket on main...
  • Page 24 GOT3156T-832 User’s Manual Back Step 2 Stick the thermal pad on the back cover and rip the red mylar from it. Step 3 Insert the DRAM to the DIMM socket, and then push it down firmly until it is clipped by the socket.

  • Page 25: Wireless Lan Card Installation

    Back Step 4 Installation completes. Wireless LAN Card Installation The GOT3156T-832 provides one Mini card slot for user to install one wireless LAN card. When installing the wireless LAN card, refer to the following instructions and illustration: Step 1 Refer to section 2.1 to open the back cover and find out mini-card slot on main board.
  • Page 26 GOT3156T-832 User’s Manual Back Step 2 Insert the wireless LAN card to the slot. Push it down firmly until it is clipped by the slot.  Step 3 Find the Antenna cable and connect it wireless LAN card.  Step 4...

  • Page 27: Power Input

    GOT3156T-832 User’s Manual Back 2.10 Power Input GOT3156T-832 equips with a phoenix type power connector. It adopts 10VDC to 30VDC. Please follow the signs on power connector to connect DC power source. －:Power negative +: Power positive G: Safety ground Note: The safety ground must be connected to ensure the unit working appropriately.
  • Page 28 GOT3156T-832 User’s Manual Back This page is intentionally left blank. Hardware and Installation...

  • Page 29: Ami Bios Setup Utility

    GOT3156T-832 User’s Manual Back Chapter 3 AMI BIOS Setup Utility This chapter provides users with detailed description how to set up basic system configuration through the AMIBIOS BIOS setup utility. Starting To enter the setup screens, follow the steps below: Turn on the computer and press the <Del>...

  • Page 30: Main Menu

    GOT3156T-832 User’s Manual Back Main Menu When you first enter the Setup Utility, you will enter the Main setup screen. You can always return to the Main setup screen by selecting the Main tab. There are two Main Setup options. They are described in this section. The Main BIOS Setup screen is shown below ...

  • Page 31: Advanced Menu

    GOT3156T-832 User’s Manual Back Advanced Menu  Launch Storage OpROM This item can enable or disable boot option for legacy mass storage devices with option ROM. The Advanced menu also allows users to set configuration of the CPU and other system devices.
  • Page 32 GOT3156T-832 User’s Manual Back  ACPI Settings You can use this screen to select options for the ACPI Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 33 GOT3156T-832 User’s Manual Back  CPU Configuration This screen shows the CPU Configuration, and you can change the value of the selected option. Hyper-Threading Use this item to enable or disable Hyper-Threading Technology, which makes a single physical processor perform multi-tasking function as two logical ones.
  • Page 34 GOT3156T-832 User’s Manual Back  IDE Configuration SATA Controller(s) The optional settings are: [Disabled]; [Enabled]. Configure SATA as The optional settings are: [IDE]; [AHCI]. AMI BIOS Setup Utility...
  • Page 35 GOT3156T-832 User’s Manual Back  USB Configuration You can use this screen to select options for the USB Configuration, and change the value of the selected option. A description of the selected item appears on the right side of the screen.
  • Page 36 GOT3156T-832 User’s Manual Back  NCT6627UD Super IO Configuration You can use this screen to select options for the Super IO Configuration, and change the value of the selected option. A description of the selected item appears on the right side of...
  • Page 37 GOT3156T-832 User’s Manual Back  PC Health Status This screen shows the Hardware Health Configuration, and a description of the selected item appears on the right side of the screen. AMI BIOS Setup Utility...

  • Page 38: Chipset Menu

    GOT3156T-832 User’s Manual Back Chipset Menu The Chipset menu allows users to change the advanced chipset settings. You can select any of the items in the left frame of the screen to go to the sub menus: ► Host Bridge Host Bridge For items marked with “”, please press <Enter>...
  • Page 39 GOT3156T-832 User’s Manual Back  Memory Information This item is for memory frequency and timing settings. Press <Enter> to go to the sub menu. AMI BIOS Setup Utility...

  • Page 40: Boot Menu

    GOT3156T-832 User’s Manual Back Boot Menu The Boot menu allows users to change boot options of the system.  Boot Settings Configuration Setup Prompt Timeout Use this item to set number of seconds to wait for setup activation key. Bootup NumLock State Use this item to select the power-on state for the NumLock..

  • Page 41: Security Menu

    GOT3156T-832 User’s Manual Back Security Menu The Security menu allows users to change the security settings for the system. Administrator Password This item indicates whether an administrator password has been set. If the password has been installed, Installed displays. If not, Not Installed displays.

  • Page 42: Save & Exit Menu

    GOT3156T-832 User’s Manual Back Save & Exit Menu The Save & Exit menu allows users to load your system configuration with optimal or fail-safe default values. Save Changes and Exit When you have completed the system configuration changes, select this option to leave Setup and reboot the computer so the new system configuration parameters can take effect.
  • Page 43 GOT3156T-832 User’s Manual Back Discard Changes Select this option to quit Setup without making any permanent changes to the system configuration. Select Discard Changes from the Save & Exit menu and press <Enter>. Select Yes to discard changes. Restore Defaults It automatically sets all Setup options to a complete set of default settings when you select this option.
  • Page 44 GOT3156T-832 User’s Manual Back This page is intentionally left blank. AMI BIOS Setup Utility...

  • Page 45: Chapter 4 Drivers Installation

    Chapter 4 Drivers Installation System GOT3156T-832 supports Windows 7 32-bit and WES 7. To facilitate the installation of system driver, please carefully read the instructions in this chapter before start installing. Insert Driver CD and select the “\Driver”. Step 1 Step 2 Select all files and follow the installing procedure.
  • Page 46  Driver Installation- Windows 7 The GOT3156T-832 provides a touch screen driver that users can install it under the operating system Windows 7. To facilitate installation of the touch screen driver, you should read the instructions in this chapter carefully before you attempt installation.

  • Page 47: Embedded O.s

    Press OK. Note: For the better system performance, please close the Windows AERO or change to Windows Basic mode. Embedded O.S. The GOT3156T-832 provides the Windows 7 Embedded. The O.S. is supported devices which are listed below.  WES 7...
  • Page 48 GOT3156T-832 User’s Manual Back PenMount Touch screen Before you can use and calibrate it, here is what you should do: Set up Penmount touch device driver by executing C:\Penmount\ Windows 2000-XP V5.0\setup.exe. When the installation is finished, an icon “PM” appears on the Taskbar.
