Ameriwood 5943220T Assembly Instructions Manual

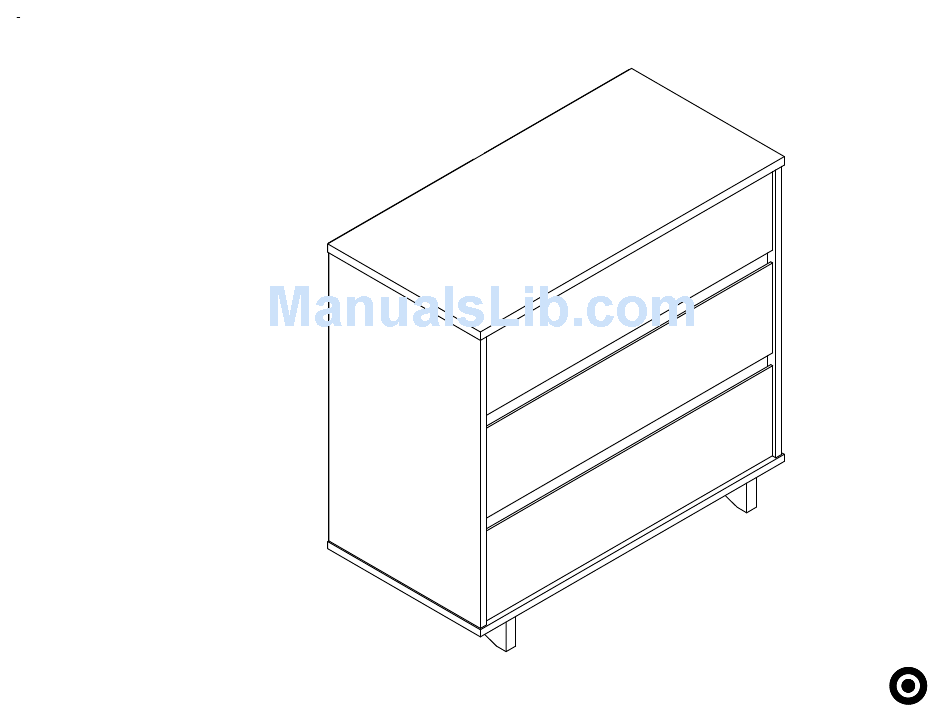

Modern 3 drawer dresser

Advertisement

Modern
3 drawer dresser
style # 5943220T (Espresso)
style # 5943306T (White)
DPCI # 249-05-0490 (Espresso)
DPCI # 294-05-0486 (White)
>> assembly instructions
B345943220T 00
TM

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5943220T and is the answer not in the manual?

Questions and answers

Summary of Contents for Ameriwood 5943220T

  • Page 1 Modern 3 drawer dresser style # 5943220T (Espresso) style # 5943306T (White) DPCI # 249-05-0490 (Espresso) DPCI # 294-05-0486 (White) >> assembly instructions B345943220T 00...
  • Page 2: Introduction

    Congratulations on your latest Target purchase. Now what? Don't start sweating over the box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your room in no time.
  • Page 3: Table Of Contents

    table of contents introduction hardware parts list how to use the cam lock system assembly 8-28 Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and DPCI number QUESTIONS? ready when calling.
  • Page 4: Hardware

    hardware (1) x16 (2) x16 (3) x8 (4) x6 (5) x6 (6) x28 cam lock cam bolt wood dowel connector housing connector bolt nail #A22570 #A22510 #A21660 #A22900 (white) #A22910 #A21110 #A22920 (black) (9) x4 (7) x18 (8) x12 #8x1-3/4" pan head screw #6x1-1/4"...
  • Page 5: Parts List

    Parts shown are the base cabinet of your model. Please note, 5943220T (Espresso) PARTS LIST most parts are labeled with a sticker or have a letter stamped Parts List on a raw edge. Parts F, M, P may not be labeled.
  • Page 6 Parts shown are the base cabinet of your model. Please note, 5943306T (White) PARTS LIST most parts are labeled with a sticker or have a letter stamped Parts List on a raw edge. PART NUMBER DESCRIPTION Parts F, M, P may not be labeled. 35943306010 LEFT PANEL This piece is paperboard construction.
  • Page 7: How To Use The Cam Lock System

    how to use the cam lock system Tighten to fully seat. Do not over tighten. Proper orientation of cam. ½ turn to fully lock. Lock...
  • Page 8: Assembly

    step Proper orientation of CAM LOCK finished edge marked with an "L" (2) x2 (3) x2 (1) x2 (11) x9 (14) x3 cam bolt cam lock wood dowel #6x7/16" screw left cabinet slide 1. Screw-in cam bolts must be screwed down flush. 2.
  • Page 9 step Proper orientation of CAM LOCK finished edge marked with an "R" (2) x2 (3) x2 (1) x2 (11) x9 (14) x3 cam bolt wood dowel cam lock #6x7/16" screw right cabinet slide 1. Screw-in cam bolts must be screwed down flush. 2.
  • Page 10 step do not tighten screw (13b) finished edge (13) x1 (2) x4 bracket & screw cam bolt (safety bracket kit) 1. Screw-in cam bolts must be screwed down flush. 2. Refer to page 7 for instructions on how to use the cam lock system.
  • Page 11 step (5) x6 connector bolt...
  • Page 12 step (3) x4 (1) x4 wood dowel cam lock 1. Refer to page 7 for instructions on how to use the cam lock system.
  • Page 13 step Note: These edges will be flush with each other. finished edge (9) x2 #8x1-3/4" pan head screw finished edge 1. Finished edges will face down.
  • Page 14 step UNLOCK LOCK finished edge finished edge finished edge 1. Refer to page 7 for instructions on how to use the cam lock system.
  • Page 15 step raw edge finished edge (9) x2 #8x1-3/4" pan head screw UNLOCK LOCK 1. Attach the right panel (B) to braces (E) first. 2. Refer to page 7 for instructions on how to use the cam lock system.
  • Page 16 step UNLOCK LOCK finished edge 1. Refer to page 7 for instructions on how to use the cam lock system.
  • Page 17 step IMPORTANT! THE BACK PANEL IS A STRUCTURAL PART OF THIS UNIT AND MUST BE INSTALLED PROPERLY. WARNING Assure that the unit is square. Please make sure that the Back Panel is attached securely. All nails must be driven into the parts straight and centered. Distance from corner to corner must be Failure to do so could cause instability, product collapse, and/or serious injury.
  • Page 18 step Proper orientation of CAM LOCK (1) x2 (2) x2 (4) x6 You will need to tap the connector (4) with a hammer cam lock cam bolt connector housing to fully insert. Be sure the connector is positioned as shown before pushing into holes. 1.
  • Page 19 step UNLOCK LOCK 1. Refer to page 7 for instructions on how to use the cam lock system.
  • Page 20 step Turn connector screw clockwise to lock in place.
  • Page 21 step Bracket Orientation Bracket Orientation (12) x6 drawer bracket 1. Lay the drawer sides down on a flat hard surface. Carefully line up the drawer bracket with the holes in the drawer side as shown. Using a hammer, tap each drawer bracket stem part way into each hole. Repeat this process until the drawer bracket is fully seated on the drawer side.
  • Page 22 step line up all grooves during assembly left drawer side (marked "LEFT") left drawer side (marked "LEFT") right drawer side (marked "RIGHT") right drawer side (marked "RIGHT") (8) x12 (2) x6 #8x7/16" pan head screw cam bolt 1. Screw-in cam bolts must be screwed down flush. 2.
  • Page 23 step Proper orientation of CAM LOCK (1) x6 cam lock 1. Refer to page 7 for instructions on how to use the cam lock system. UNLOCK LOCK...
  • Page 24 step raw surface drawer bottom raw surface drawer bottom...
  • Page 25 step (7) x18 #6x1-1/4" flat head screw...
  • Page 26 step marked with an "L" marked with an "R" 3 drawers (14) x3 (11) x12 (14) x3 #6x7/16" flat head screw left drawer slide right drawer slide...
  • Page 27 step IMPORTANT: THIS UNIT MUST BE SECURED TO A WALL TO HELP PREVENT TIPOVER. FOLLOW THESE INSTRUCTIONS TO INSTALL THE ANTI-TIPPING SAFETY BRACKET PROVIDED WITH THIS PRODUCT. WARNING hole stud option 2 Serious or fatal crushing injuries can occur from furniture tipover. To prevent tipover: •...
  • Page 28 step roller cabinet member drawer runner roller 1. Notice, the drawer bracket holes are slotted. Drawer fronts can be adjusted by loosening screws, making needed adjustments and retightening screws.
  • Page 29 MAXIMUM LOADS This unit has been designed to support the maximum loads shown. Exceeding these each drawer load limits could cause sagging, instability, 25 lbs. product collapse, and/or serious injury. Warning: Risk of injury to persons - do not place a television on this furniture. 50 lbs.
  • Page 30 Certificate of Conformity 1. This certificate applies to the Ameriwood Industries Inc. product identified by this instruction manual. 2. This certificate applies to compliance of this product with the CPSC Ban on Lead-Containing Paint (16 CFR 1303). 3. This product is distributed by: Ameriwood Industries Inc.
  • Page 31 ©2016 Target. The Bullseye Design is a trademark of Target Brands inc. All rights reserved.
