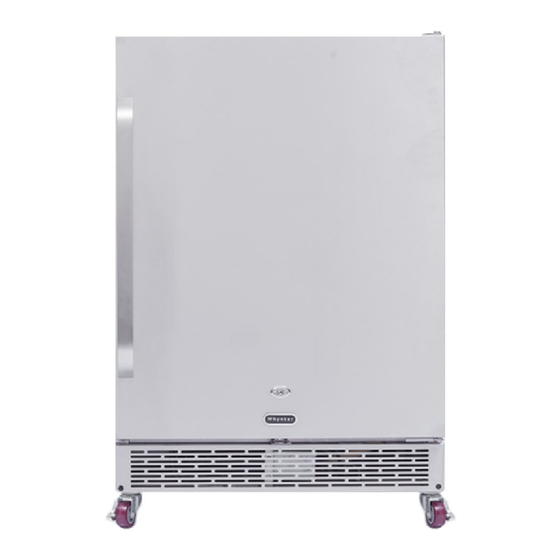

Whynter 24" Built-in Outdoor 5.3 cu.ft. Beverage Refrigerator Cooler
Full Stainless Steel Exterior with Lock and Caster Wheels
Model # : BOR-53024-SSW
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.
Advertisement
Table of Contents
Related Manuals for Whynter BOR-53024-SSW
Summary of Contents for Whynter BOR-53024-SSW
- Page 1 Full Stainless Steel Exterior with Lock and Caster Wheels Model # : BOR-53024-SSW INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
Table of Contents PAGE Safety Precautions 3 - 4 Parts Product Features Important Safety Instructions Installation 8 - 9 Operation and Controls 10 - 12 Care and Maintenance 13 - 14 Troubleshooting Warranty Information... -
Page 3: Safety Precautions
Safety Precautions APPLIANCE SAFETY Your safety and the safety of others are very important to us. To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions This is the Safety Alert Symbol. This symbol alerts you to potential hazards that may result in serious injury. -
Page 4: Safety Precautions
Safety Precautions • In the event of leakage: Avoid open flames and anything which creates a spark Disconnect from the mains Air the room in which the appliance is located for several minutes and contact the Service Department for advice •... -
Page 5: Parts
Parts Item Description Internal Fan Control Panel Refrigerator Door Wire Shelves (3) Leveling Legs (4) Door Lock Latch Door Light Switch Front Vent Door Handle Door Lock Front Caster Wheels with lock (2) Rear Caster Wheels (2) (optional accessory, installation not required) Door Keys... -
Page 6: Product Features
Product Features Ideal for your outdoor kitchen or a patio bar, this Whynter Built-in Outdoor 5.3 cu. ft. Beverage Refrigerator Cooler can just as easily be the featured in your indoor entertainment space. Manufactured with premium components and materials, this well-appointed refrigeration unit enhances any setting and is built to maintain temperature requirements under a wider range of ambient conditions. -
Page 7: Important Safety Instructions
Installation IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic pre- WARNING cautions: Read all instructions before using the appliance. DANGER or WARNING: An empty appliance can be a hazardous for children or small pets. If disposing of the appliance, remove gasket seals, latches, lids or the entire door to ensure the appliance is harmless. -
Page 8: Installation
¼ WARNING: Improper use of the grounded plug can result in the risk of electrical shock. If the power cord is damaged, have it replaced by a qualified electrician or contact Whynter Service Department ELECTRICAL CONNECTION This appliance requires a standard 115/120 Volt AC ~/60Hz electrical ground outlet with three-prong. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. -
Page 9: Installation
Installation REVERSING THE DOOR SWING OF YOUR BEVERAGE OUTDOOR REFRIGERATOR Tools needed: Flathead screwdriver, Phillips screwdriver IMPORTANT: Before you begin, unplug the refrigerator or disconnect power. To remove door from hinges: 1. Using a flathead screwdriver, separate the hinge axis from hinge #1. Set aside. 2. -
Page 10: Operation And Controls
If you find that the surface is not level, rotate the feet until the appliance becomes level .You may need to make several adjustments to level it. We recommend using a carpenter’s level to check the machine. NOTE: The Whynter BOR-53024-SSW has 4 leveling legs. - Page 11 Operation and Controls 1. 1. Place a carpenter’s level on top of the product to see if the appliance is level from front to back and side to side. 2. 2. Adjust the height of the feet as follows: Turn the leveling feet to the right to lower that side of the refrigerator.
-
Page 12: Operation And Controls
Operation and Controls To remove the shelves, pull the shelf forward until the notch aligns with the plastic post. Lift the shelf and contin- ue to pull the shelf forward until it is completely removed from the internal compartment. NORMAL SOUNDS The unit is cooled by a compressor. -
Page 13: Care And Maintenance
Care and Maintenance CLEANING YOUR APPLIANCE • Turn off the power, unplug the appliance, and remove all contents from the appliance and store them in a suitable place. • Clean the inside, the door seal and the inside of the glass with a clean, damp cloth. •... -
Page 14: Care And Maintenance
Care and Maintenance When the beverage refrigerator is used for the first time or restarted after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the dis- play. -
Page 15: Troubleshooting
"LI" code indicates that the actual For "LI" code, decrease or increase the temperature is much lower than your ambient (room) temperature. set temperature. • • "EI" and "HI" codes indicates that Contact Whynter Customer Support. temperature sensor has malfunctioned. -
Page 16: Warranty Information
All defective products and parts covered by this warranty will be repaired or replaced on a mail-in basis to Whynter’s Service Center. This warranty is not transferable. After the expiration of the warranty, the cost of labor and parts will be the responsibility of the original owner.
