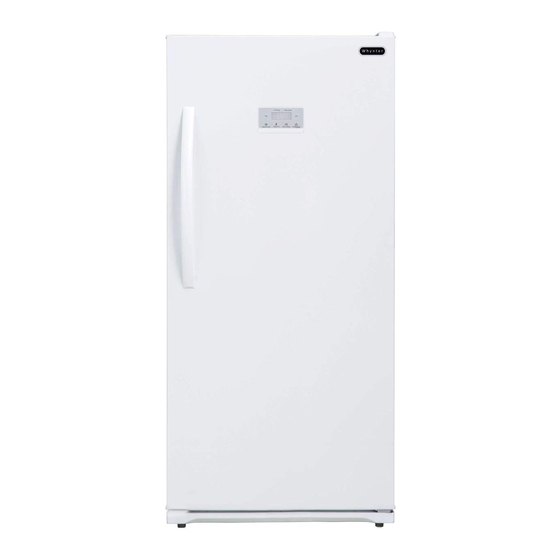

13.8 cu.ft. energy star digital upright deep freezer
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Whynter 13.8 cu.ft. Energy Star Digital Upright Deep Freezer -
White
Model # : UDF-138DW
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.

Advertisement

Table of Contents
loading

Related Manuals for Whynter UDF-138DW

Summary of Contents for Whynter UDF-138DW

  • Page 1 Whynter 13.8 cu.ft. Energy Star Digital Upright Deep Freezer - White Model # : UDF-138DW INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.

  • Page 2: Table Of Contents

    Table of Contents PAGE Safety Precautions 3 - 4 Parts and Accessories Product Features / Technical Data Installation 7 - 8 Operation and Controls 9 - 10 Cleaning and Maintenance 11 - 12 Troubleshooting 13 - 14 Warranty Information...

  • Page 3: Safety Precautions

    Safety Precautions TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN WARNING USING YOUR UPRIGHT FREEZER, FOLLOW THESE BASIC PRECAUTIONS:  Read all instructions before using the appliance.  Never clean appliance parts with flammable fluids. The fumes can create a fire hazard. Do not use an exces- sively wet cloth, industrial solvents, and oil-based products to clean this appliance.
  • Page 4 Safety Precautions  Transport the appliance in an upright position only.  Always place the appliance on even and hard and level surface.  Close the freezer door immediately after putting in any items to maintain the internal temperature of the unit. ...

  • Page 5: Parts And Accessories

    Parts and Accessories BOTTOM REAR SECTION 9. Sliding Cabinet 1. Door Handle 5. Leveling Leg 13. Wheel Rollers (2) Shelves (4) 2. Control Panel 6. Light Switch 10. Air Outlet 14. Compressor 11. Slide-out Freezer 3. Door Hinge Cover 7. Light 15.

  • Page 6: Product Features / Technical Data

    Product Features / Technical Data Get the storage space you need and features you need with the Whynter Energy Star 13.8 cu. ft. Upright Freezer! With its powerful fan-circulated compressor ensures the precise airflow for efficient temperature distribution, and the convenient frost-free design ends the need to manually defrost this upright freezer.

  • Page 7: Installation

    Installation Excessive Weight Hazard Two or more people should move and install upright freezer. Failure to do so can result in back or other injury. REMOVE PACKAGING MATERIALS IMPORTANT: Do not remove any permanent instruction labels or the data label on your upright freezer REMOVE TAPE AND CLUE FROM YOUR UPRIGHT FREEZER BEFORE USING ...
  • Page 8 Installation  A standard electrical supply (115 VAC only, 60 Hz, 10A), properly grounded in accordance with National Electrical Code and local codes and ordinances is required.  IMPORTANT: Do not kink or pinch the power supply cord between the upright freezer and wall or cabinet. MOVEMENT OF YOUR APPLIANCE ...

  • Page 9: Operation And Controls

    Operation and Controls CONTROL PANEL GUIDE To obtain the best possible results for your upright freezer, it is important that you operate it properly. Your up- right freezer uses a electronic digital control system for adjusting the thermostat. 1. “Quick Freeze” Button Quick Freeze enables the compressor to run continuously to help cool large quantities of warm (room tem- perature) foods faster.

  • Page 10: Operation And Controls

    Operation and Controls NOTE: If the appliance is unplugged, encounter power interruption, or turned off, you must wait 3 -5 minutes before restarting the appliance. If attempted to restart before this time delay, the appliance may not start. TEMPERATURE MEMORY FUNCTION In the event of a power interruption (power surge, breaker switch, etc.), the upright freezer restarts at the previously set function mode and settings when power is restored FREEZER LIGHT...

  • Page 11: Cleaning And Maintenance

    Cleaning and Maintenance NO DEFROSTING You never have to defrost your new Frost-Free freezer. It has been preset at the factory to defrost itself auto- matically. During defrosting, a slight noise may be noticed if the door is opened while the freezer is in the automatic defrosting cycle.
  • Page 12 Cleaning and Maintenance ENERGY SAVING TIPS The upright freezer should be located in the coolest area of the room, away from heat-producing appliances or heating ducts, and out of direct sunlight. Let hot foods cool to room temperature before placing in the up- right freezer.

  • Page 13: Troubleshooting

     The system is blocked  Contact Whynter Service Department via email at service@whynter.com The upright freezer  Freezer door being opened fre-  Refrain from opening the upright freezer door re-...
  • Page 14  Contact Whynter Service Department via email at  Operational error service@whynter.com Control panel beeps. “Hi  Freezer temperature is too high  Contact Whynter Service Department via email at -Temp” is lit service@whynter.com  Press Alarm Reset to mute audible alarm Control panel beeps.

  • Page 15: Warranty Information

    CHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. WHYNTER SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY.
