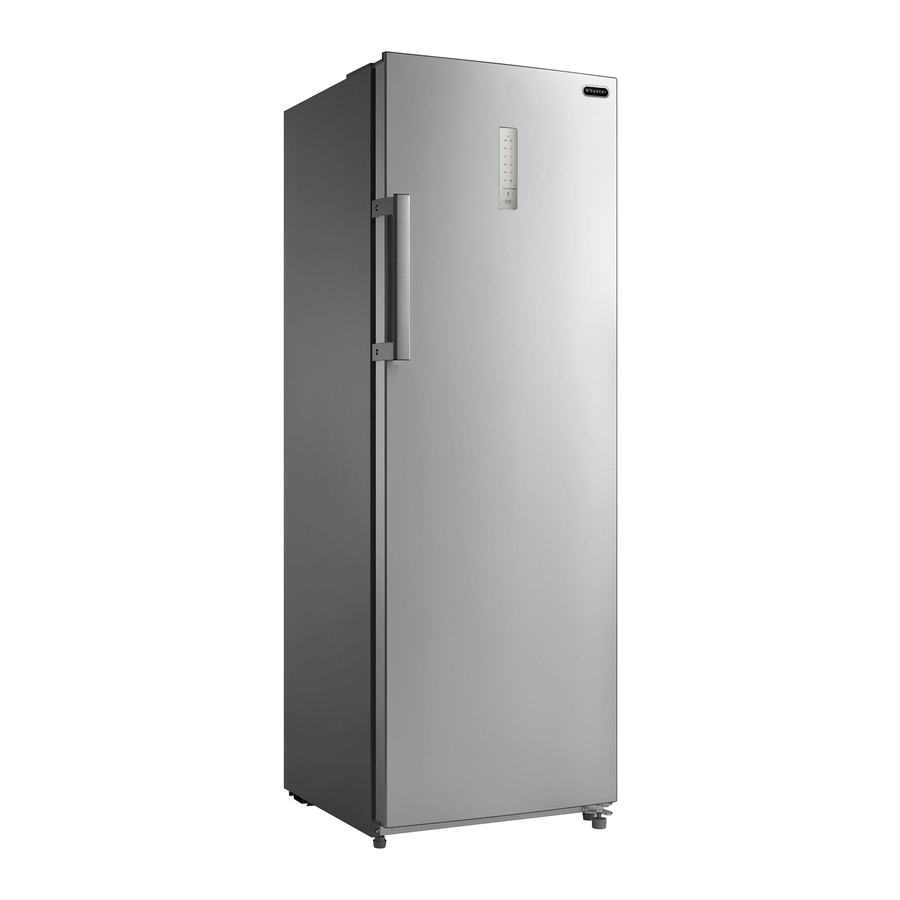

Whynter 8.3 cu.ft. Energy Star Digital Upright Stainless Steel Deep Freezer/Refrigerator
Model # : UDF-0831SS
INSTRUCTION MANUAL
Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before
using this product. Keep this manual in a safe place for future reference.
Advertisement
Related Manuals for Whynter UDF-0831SS
Summary of Contents for Whynter UDF-0831SS
- Page 1 Whynter 8.3 cu.ft. Energy Star Digital Upright Stainless Steel Deep Freezer/Refrigerator Model # : UDF-0831SS INSTRUCTION MANUAL Congratulations on your new Whynter product. To ensure proper operation, please read this Instruction Manual carefully before using this product. Keep this manual in a safe place for future reference.
-
Page 2: Table Of Contents
Table of Contents PAGE Safety Precautions 3 - 4 Parts and Accessories Product Features / Technical Data Installation 7 - 8 Operation and Controls 9 - 11 Cleaning and Maintenance 12 - 13 Troubleshooting 14 - 15 Warranty Information... -
Page 3: Safety Precautions
Safety Precautions TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK, OR INJURY WHEN WARNING USING YOUR APPLIANCE, FOLLOW THESE BASIC PRECAUTIONS: • Read all instructions before using the appliance. • Never clean appliance parts with flammable fluids. The fumes can create a fire hazard. Do not use an exces- sively wet cloth, industrial solvents, and oil-based products to clean this appliance. - Page 4 Safety Precautions • Transport the appliance in an upright position only. • Always place the appliance on even and hard and level surface. • Close the freezer door immediately after putting in any items to maintain the internal temperature of the unit. •...
-
Page 5: Parts And Accessories
Parts and Accessories BOTTOM REAR SECTION 9. Slide-out Wire 1. Door Handle 5. Door Hinge Cover Basket (1) 10. Compressor 2. Control Panel 6. Door Handle 11. Drip tray 3. Leveling Leg 7. Air Outlet 8. Sliding Cabinet 4. Leveling Leg Shelves (6) -
Page 6: Product Features / Technical Data
Product Features / Technical Data Get the storage space and features you need with the stainless steel Whynter 8.3 cu.ft. Energy Star Digital Upright upright Deep Freezer / Refrigerator. With its powerful fan-circulated compressor, it ensures the precise airflow for efficient temperature distribution. Additionally, the convenient frost-free design ends the need to manually defrost this upright refrigerator/deep freezer. -
Page 7: Installation
Installation Excessive Weight Hazard Two or more people should move and install upright refrigerator/deep freezer. Failure to do so can result in back or other injury. REMOVE PACKAGING MATERIALS IMPORTANT: Do not remove any permanent instruction labels or the data label on your upright refrigerator/ deep freezer REMOVE TAPE AND CLUE FROM YOUR UPRIGHT FREEZER BEFORE USING •... - Page 8 Installation • A standard electrical supply (115 V AC only, 60 Hz, 10A), properly grounded in accordance with National Electrical Code and local codes and ordinances is required. • IMPORTANT: Do not kink or pinch the power supply cord between the upright refrigerator/deep freezer and wall or cabinet.
-
Page 9: Operation And Controls
Operation and Controls CONTROL PANEL GUIDE To obtain the best possible results for your upright refrigerator/deep freezer, it is important that you operate it properly. Your upright refrigerator/deep freezer uses a electronic digital control system for adjusting the ther- mostat. ①... - Page 10 Operation and Controls In the occurrence of a failure, the corresponding icons will flash the error codes on the display. The errors are shown as follows: Refrigerator: Error Code Error Description Display Temperature sensor error Icon" " & icon"35" illuminate at same time Defrosting sensor error "...
- Page 11 Operation and Controls NORMAL SOUNDS Your new upright refrigerator/deep freezer may make sounds that are not familiar to you. Hard surfaces like the floor, walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them. •...
-
Page 12: Cleaning And Maintenance
Cleaning and Maintenance NO DEFROSTING You never have to defrost your upright refrigerator/deep freezer. It has been preset at the factory to defrost itself automatically. During defrosting, a slight noise may be noticed if the door is opened while the upright refrigerator/deep freezer is in the automatic defrosting cycle. - Page 13 Cleaning and Maintenance ENERGY SAVING TIPS The upright refrigerator/deep freezer should be located in the coolest area of the room, away from heat- producing appliances or heating ducts, and out of direct sunlight. Let hot foods cool to room temperature before placing in the upright refrigerator/deep freezer.
-
Page 14: Troubleshooting
• The system is blocked • Contact Whynter Service Department via email at service@whynter.com The upright refrig- • Freezer door being opened fre- • Refrain from opening the upright refrigerator/... - Page 15 Troubleshooting Many common upright refrigerator/deep freezer problems are easily resolved. Try the troubleshooting suggestions below to see if the problems can be resolved before having to contact the service department. Problem Possible Causes Solutions Freezer external sur- • This is normal while the compressor works to trans- •...
-
Page 16: Warranty Information
ONE YEAR LIMITED WARRANTY This Whynter product is warranted, to the original owner within the 48 continental states, for one year from the date of purchase against defects in material and workmanship under normal use and service. When making a warranty claim, please have the original bill or invoice of purchase with purchase date available.
