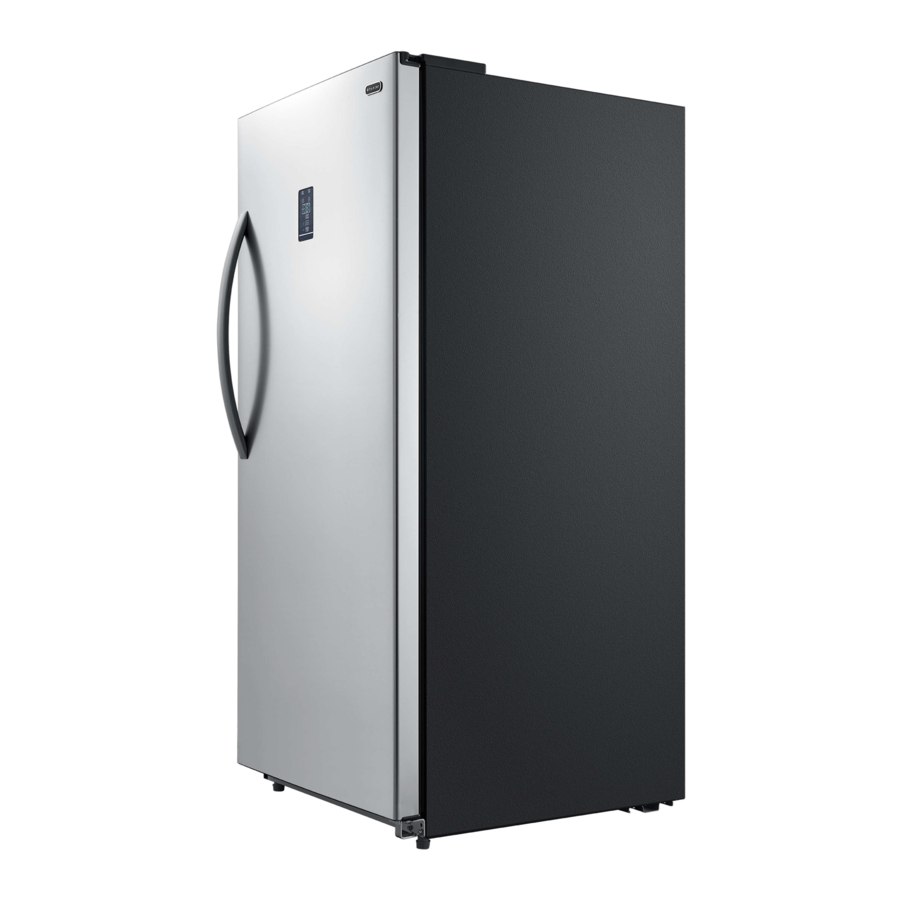

Whynter UDF-139SS - Deep Freezer Manual

Parts and Accessories

1. Door Handle
2. Control Panel
3. Door Hinge Cover
4. Leveling Leg

5. Leveling Leg
6. Door Light Switch
7. Light
8. Sliding Cabinet Shelves (4)

9. Air Outlet
10. Temperature Sensor
11. Slide-out Wire Basket (1)
12. Removable Door Rack Shelves (4)

13. Wheel Rollers (2)
14. Compressor
15. Drip Tray

Product Features / Technical Data

Get the storage space and features you need with the stainless steel Whynter 13.8 cu.ft. Energy Star Digital Upright Convertible Deep Freezer / Refrigerator. With its powerful fan-circulated compressor, it ensures the precise airflow for efficient temperature distribution. Additionally, the convenient frost-free design ends the need to manually defrost this convertible refrigerator/deep freezer.

• Stainless steel door with a textured steel exterior
• Operates as a refrigerator or freezer
• Powerful compressor cooling
• "Quick Freeze" mode rapidly cools to -11°F
• Electronic temperature control - easy temperature management, with an LED display that can read in Celsius or Fahrenheit
• Frost-Free - saves you maintenance by preventing icy buildup and never have to empty the contents to manually defrost
• Soft interior lighting - offers an attractive yet energy efficient look inside
• Wheel rollers - lets you easily transport or move your freezer whenever the need arises
• 4 sliding cabinet shelves and 1 sliding bulk storage basket - offers versatility and flexibility to organize your favorite foods for quick and easy access
• 4 removable freezer door rack shelves - for quick access and easy selection
• Audible alarms - for high temperature fluctuations and open door alerts
• Temperature memory function - memorizes desired temperature setting for consistent results
• Freestanding setup (clearance around the unit is needed)

TECHNICAL DATA

Installation

Excessive Weight Hazard
Two or more people should move and install convertible refrigerator/deep freezer. Failure to do so can result in back or other injury.

REMOVE PACKAGING MATERIALS

Do not remove any permanent instruction labels or the data label on your convertible refrigerator/ deep freezer

REMOVE TAPE AND CLUE FROM YOUR UPRIGHT FREEZER BEFORE USING

• To remove any remaining tape or glue, rub the area briskly with your thumb. Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.
• Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your convertible refrigerator/deep freezer.

CLEANING BEFORE USE

• After you remove all of the packaging materials, clean the inside of your convertible refrigerator/deep freezer before using it.

INSTALLATION CLEARANCES
Your convertible refrigerator/deep freezer should be conveniently located for day-to-day use in a dry, wellventilated room. Do not install the convertible refrigerator/deep freezer where the temperature will go below 50°F or above 90°F, because it will not maintain proper temperatures. Be sure to install your convertible refrigerator/ deep freezer on a floor strong enough to support it when it is fully loaded.

FREESTANDING INSTALLATION
A freestanding installation will allow you to install the convertible refrigerator/deep freezer in any place you desire provided that the required clearance space around the appliance is respected. In every setting, there must be adequate ventilation and access for service. Never install or operate the unit in an enclosed area, such as a closed cabinet.

• Before connecting the convertible refrigerator/deep freezer to the power source, let it stand upright for approximately 4 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
• The normal operation of the convertible refrigerator/deep freezer depends on heat radiation from the condenser. Allow at least 6 inches of space between the back and sides of the appliance, which allows the proper air circulation to cool the compressor and condenser. The installation should allow the convertible refrigerator/ deep freezer to be pulled forward for servicing if necessary.
• This unit MUST be installed in an area protected from the elements, e.g., wind, rain, water spray or drips. Do NOT use the convertible refrigerator/deep freezer in outdoor setting.
• The convertible refrigerator/deep freezer should not be located next to ovens, grills or other high heat resources.
• Too much humidity in the air will cause frost to form quickly on the evaporator requiring more frequent defrosting of the convertible refrigerator/deep freezer.
• Avoid locating the appliance in area that may be exposed to excessive moisture.
• The convertible refrigerator/deep freezer must be installed with all electrical requirements followed.
• The unit should be located on a hard and level surface that can support the unit when it is full. It is important for the convertible refrigerator/deep freezer to be level in order to work properly. If needed, you can adjust the height of the convertible refrigerator/deep freezer by turning the feet. See the "Leveling the Upright Freezer" section.
• A standard electrical supply (115 VAC only, 60 Hz, 10A), properly grounded in accordance with National Electrical Code and local codes and ordinances is required.
•
  Do not kink or pinch the power supply cord between the convertible refrigerator/deep freezer and wall or cabinet.

PLACEMENT OF YOUR APPLIANCE

• Position the convertible refrigerator/deep freezer in a dry and well-ventilated place. Keep the convertible refrigerator/deep freezer away from direct sunlight, heaters, and corrosive gases or chemicals.
• Clean the interior surface with lukewarm water using a soft cloth.
• Place your appliance on a hard and level floor that is strong enough to support it when it is fully loaded.
• The convertible refrigerator/deep freezer can be easily moved from one room to another by using the preinstalled wheel rollers.
  If the appliance is needed to be lifted, two or more people should move convertible refrigerator/deep freezer. Failure to do so can result in back or other injury.
• We do not recommend installing the appliance on carpet.

DOOR INSTALLATION
This appliance includes a door handle that is not required for operation. To install the handle, please follow the instructions below:

1. Install the two screws onto the door holes as shown. Make sure that the screws are securely installed.
2. Carefully line up the door handle to the installed screws.
3. Secure the door handle in place by tightening the pre-installed recessed screws using the wrench provided.

LEVELING THE UPRIGHT FREEZER
It is important for the convertible refrigerator/deep freezer to be leveled in order to work properly. It can be raised or lowered by turning the two feet on the bottom of the machine. If the convertible refrigerator/deep freezer is not leveled during installation. The doors may not close or seal properly, causing cooling, frost, or moisture problems. It is very important that the convertible refrigerator/deep freezer is at level in order to function properly.
NOTE: This convertible refrigerator/deep freezer comes with 2 leveling legs and 2 wheel rollers
We recommend using a carpenter's level to check the machine.

1. Place a carpenter's level on top of the product to see if the convertible refrigerator/deep freezer is level from front to back and side to side.
2. Adjust the height of the feet as follows:

• Turn the leveling feet to the right to lower that side of the convertible refrigerator/deep freezer
• Turn the leveling feet to the left to raise that side of the convertible refrigerator/deep freezer

Operation and Controls

CONTROL PANEL GUIDE
To obtain the best possible results for your convertible refrigerator/deep freezer, it is important that you operate it properly. Your convertible refrigerator/deep freezer uses a electronic digital control system for adjusting the thermostat.

1. Up Button
   Press the Up button to increase the set temperature by 1°C or 1°F
2. Down Button
3. Quick Freeze Button
   Press the Down button to decrease the set temperature by 1°C or 1°F Quick Freeze enables the compressor to run continuously to help cool large quantities of warm (room temperature) foods faster.
   Press and hold the 'LOCK' button for three seconds to unlock the control panel. Press the Quick Freeze button to run on this mode. The Quick Freeze mode will then cancel automatically after 24 hours has elapsed. To manually cancel, while in Quick Freeze mode, press the 'LOCK' button to unlock the control panel and press the Quick Freeze button.
   Note: For energy saving purposes, we recommend to run the Quick Freeze with a total duration time of 6 hours
4. Lock Button
   The convertible refrigerator/deep freezer locks automatically the control panel after 30 seconds if buttons are not pressed. To deactivate the control lockout, press and hold the 'LOCK' button for three seconds and an audible chime will be heard confirming that the control lockout is deactivated.
   NOTE: Opening the convertible refrigerator/deep freezer door does not deactivate the control lockout.
5. Freezer/Refrigerator Button
   This convertible refrigerator/deep freezer has an advanced design feature that lets you change it from a freezer to a refrigerator and vice-versa. Freezer/Refrigerator light on the control panel indicates the current mode. Press and hold convertible refrigerator / deep freezer for three seconds to unlock the control panel. Press and hold the Freezer/Refrigerator button for three seconds to change modes. The panel beeps and the indicator changes to the new mode.
6. Temperature Indicator
   Temperature display can be changed from °F to °C or °C to °F. Press and hold LOCK for three seconds to unlock the control panel. Press and hold the Up and Down buttons for three seconds. Press and hold the Up and Down buttons again to change it back to the previous temperature conversion.
7. Hi-Temp Indicator / Hi-Temp Alarm
   If the internal temperature rises to a level above 18°F (-8°C) in Freezer mode and 59°F (15°C) in Refrigerator mode, the "Hi-Temp" display indicator will illuminate and the control panel will start beeping. You may stop the beeping by pressing any button. The "Hi-Temp" display indicator will continue to be illuminated until the problem is determined, corrected and temperature once again drops to a level below 11°F (-12°C).
   NOTE: Make sure to close the door properly as outside air may cause temperature inside the freezer cabinet to rise.
8. Door Open Indicator / Door Open Alarm
   The audible door alarm will activate and the "Door Open" indicator will illuminate if the door is open for more than five minutes. Close the door to turn the audible alarm and the "Door Open" indicator off.

DISPLAY SCREEN

• The display screen shows the temperature level from –11° to 10°F(-24° to -12°C) in Freezer Mode and 35°F to 46°F (2° to 8°C) in Refrigerator Mode.
• After setting the desired temperature, the set temperature will stay on for about 30 seconds then it will disappear.
• The display screen will show the current set temperature every time the door is opened.

TEMPERATURE MEMORY FUNCTION
In the event of a power interruption (power surge, breaker switch, etc.), the convertible refrigerator/deep freezer restarts at the previously set function mode and settings when power is restored.
NOTE: If the appliance is unplugged, encounter power interruption, or turned off, you must wait 3 -5 minutes before restarting the appliance. If attempted to restart before this time delay, the appliance may not start.

TEMPERATURE OUT OF RANGE ALARM
Refrigerator Mode
If the internal temperature is at least 59°F (15°C) different than the set temperature 36 hours after closing the door, an audible alarm will activate for 10 seconds for every two minutes. This audible alarm sequence will continuously run until it is deactivated.

Freezer Mode
If the internal temperature is at least 18°F (-8°C) different than the set temperature 36 hours after closing the door, an audible alarm will activate for 10 seconds for every two minutes. This audible alarm sequence will continuously run until it is deactivated.
The alarm can be deactivated by pressing any button on the control panel.
Some possible causes are:

• Ambient room temperature is too warm or cold. Adjust the room's temperature.
• The ventilation openings are blocked or dusty. Make sure to remove any obstructions.
• There is too much frost build up. Defrost the convertible refrigerator/deep freezer.
• There are door seal gaps. Make sure that the door is properly closed and door seals are not cracked or broken.

FREEZER LIGHT
This convertible refrigerator/deep freezer comes equipped with energy saving light, which helps in lighting up the interior effectively. This convertible refrigerator/deep freezer light comes on automatically when the convertible refrigerator/deep freezer door is opened. The convertible refrigerator/deep freezer light will shut off once the convertible refrigerator/deep freezer door is completely closed.

NORMAL SOUNDS
Your new convertible refrigerator/deep freezer may make sounds that are not familiar to you. Hard surfaces like the floor, walls can make the sounds seem louder than they actually are. The following describes the kinds of sounds that might be new to you and what may be making them.

• Ratting noises may come from the flow of the refrigerant or the water line, items stored on top of the convertible refrigerator/deep freezer can also make noises.
• The surface temperature of the compressor can reach 158 - 194°F when running.
• The high efficiency compressor may make a pulsating or high-pitched sound.
• The noise emitted by the cooling fan on the condenser is a normal function.
• It is normal for the fan in the power supply to run all the time.
• As each cycle ends, you may hear a gurgling sound due to the refrigerant flowing in your convertible refrigerator/deep freezer.

STORING FROZEN FOOD
For safe food storage, allow 4 hours for the convertible refrigerator/deep freezer to cool down completely. The convertible refrigerator/deep freezer will run continuously for the first several hours. Foods that are already frozen may be placed in the convertible refrigerator/deep freezer after the first few hours of operation.

• Unfrozen food should NOT be placed until it has operated for 4 hours. Allow several hours after each one-step adjustment for the temperature to stabilize.
• When loading, freeze only 3 pounds of fresh food per cubic foot of space at a time. Distribute packages evenly throughout the cabinet.
• Storage recommendation printed on the packaging of frozen food by the manufacturers should be always be followed.

FREEZING FRESH FOOD
Ensure that your freezing operations are carried out under the most hygienic conditions as freezing alone does not sterilize the food.

• It is advisable to freeze the food by packing it into separate meal portions and not in bulk form. Never put hot or warm food stuffs into the convertible refrigerator/deep freezer.
• Prior to storing the frozen food, pack it in plastic bags, aluminum sheets or freezing containers and place into the convertible refrigerator/deep freezer.
• Fresh foods should not be stored together with frozen foods.
• When the temperature is set below 32°F, do not keep glass-bottled drinks such as beer and lemonade or soda cans, as the glass and cans might shatter.
• Do not use this deep freezer as a refrigerator when the ambient temperature is below 41°F as food can become frozen.
  Note: For best performance, leave enough space inside the convertible refrigerator/deep freezer cabinet for air to circulate around the packages.

Cleaning and Maintenance

NO DEFROSTING
You never have to defrost your convertible refrigerator/deep freezer. It has been preset at the factory to defrost itself automatically. During defrosting, a slight noise may be noticed if the door is opened while the convertible refrigerator/deep freezer is in the automatic defrosting cycle.

CLEANING
Outside/Exterior

• Wipe with a clean cloth lightly dampened with appliance polish wax or mild liquid dishwashing detergent. Dry and polish with a clean, soft cloth.
• Do not wipe the convertible refrigerator/deep freezer with a soiled dishwashing cloth or wet towel. Do not use scouring pads, powdered cleaners, bleach, or cleaners containing bleach.

Inside

• Use warm water and baking soda solution–about a tablespoon of baking soda to a quart of water. Rinse thoroughly with water and wipe dry.
• Do not use cleaning powders or other abrasive cleaners. An open box of baking soda in the convertible refrigerator/deep freezer will absorb stale freezer odors. Change the box every three months.
• An open box of baking soda in the convertible refrigerator/deep freezer will absorb stale odors. Change the box every three months.

CHANGING THE LIGHT BULBS
To change the light bulb, make sure to unplug freezer or disconnect unit from power supply before removing the bulb. Replace the bulb with a 40-watt appliance bulb. Please note that not all bulbs will fit your freezer. Be sure to replace the bulb with one of the same size and shape. Plug in the freezer or reconnect freezer to power supply after bulb replacement.

PROLONGED OFF PERIODS
If the convertible refrigerator/deep freezer is not to be used for a long period of time, disconnect convertible refrigerator/deep freezer from main power supply. Clean and dry the inside as instructed. Leave the convertible refrigerator/deep freezer door open to prevent any mold and mildew growth.

Usage Tips:

• Keep the convertible refrigerator/deep freezer's door closed as much as possible. Try not to open the door too frequently, especially when weather is hot and humid
• Ensure that the unit has sufficient clearance for ventilation
• For normal household use, it is recommended to set the thermostat in the middle setting.
• Before loading the convertible refrigerator/deep freezer with an item, make sure they are cooled to ambient temperature.  Ice and frost layer increase energy consumption, defrost when frost is 3-5 mm thick.

PREPARING FOR VACATION
To maintain convertible refrigerator/deep freezer in operation during vacations, be sure your house power is not turned off. For extended vacations or absences, you may prefer to move your frozen foods to a storage locker temporarily. If your convertible refrigerator/deep freezer is to be left empty, disconnect power cord plug from power source. To prevent formation of odors, place open box of baking soda in convertible refrigerator/deep freezer and leave convertible refrigerator/deep freezer door open.

IN CASE OF EXTENDED POWER FAILURE

• Keep convertible refrigerator/deep freezer door closed. This will keep food frozen or refrigerated for up to 24 hours provided warm air is not admitted.
• If convertible refrigerator/deep freezer is out of operation for 24 hours or more, add dry ice. Leave ice in large pieces. Add more ice as required.
• If dry ice is not available, move food to frozen locker temporarily—until power is restored
  NOTE: Handling of dry ice can cause freezing of the hands—gloves or other protection is recommended.

ENERGY SAVING TIPS
The convertible refrigerator/deep freezer should be located in the coolest area of the room, away from heatproducing appliances or heating ducts, and out of direct sunlight. Let hot foods cool to room temperature before placing in the convertible refrigerator/deep freezer. Overloading the convertible refrigerator/deep freezer forces the compressor to run longer. Foods that freeze too slowly may lose quality or spoil. Be sure to wrap foods properly, and wipe containers dry before placing them in the convertible refrigerator/deep freezer. This cuts down on frost buildup inside the convertible refrigerator/deep freezer.
Freezer shelves should not be lined with aluminum foil, wax paper or paper toweling. Liners interfere with cold air circulation, making the convertible refrigerator/deep freezer less efficient. Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

Troubleshooting

Many common convertible refrigerator/deep freezer problems are easily resolved. Try the troubleshooting suggestions below to see if the problems can be resolved before having to contact the service department.

ALARM FUNCTION TABLE

Safety Precautions

ELECTRICAL CONNECTION
The power cord of this appliance is equipped with a 3-prong (grounding) plug which mates with a standard 3prong (grounding) wall outlet to minimize the possibility of electric shock hazard from this appliance. Have the wall outlet and circuit checked by a qualified electrician to make sure the outlet is properly grounded. Where a standard 2-prong wall outlet is encountered, it is your personal responsibility and obligation to have it replaced with a properly grounded 3-prong wall outlet. Do not use an adapter. The freezer should always be plugged into its own individual electrical outlet which has a voltage rating that matches the rating plate.
A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical supply is required. This provides the best performance and also prevents overloading house wiring circuits which could cause a fire hazard from overheated wires. Never unplug your freezer by pulling on the power cord. Always grip plug firmly and pull straight out from the outlet. Repair or replace immediately all power cords that have become frayed or otherwise damaged. Do not use a cord that shows cracks or abrasion damage along its length or at either end. When moving the freezer away from the wall, be careful not to roll over or damage the power cord

EXTENSION CORD
Because of potential safety hazards, it is strongly recommended that you do not use an extension cord with this appliance. However, if you must use an extension cord, it is absolutely necessary that it be a UL/CUL-Listed, 3wire grounding type appliance extension cord having a grounding type plug and outlet and that the electrical rating of the cord be 15 amperes and 115 volts. Failure to follow these instructions can result in fire, electric shock, or death.
THE MANUFACTURER DISCLAIMS ANY RESPONSIBILITY IF THE ABOVE INSTRUCTIONS ARE NOT FOLLOWED.
