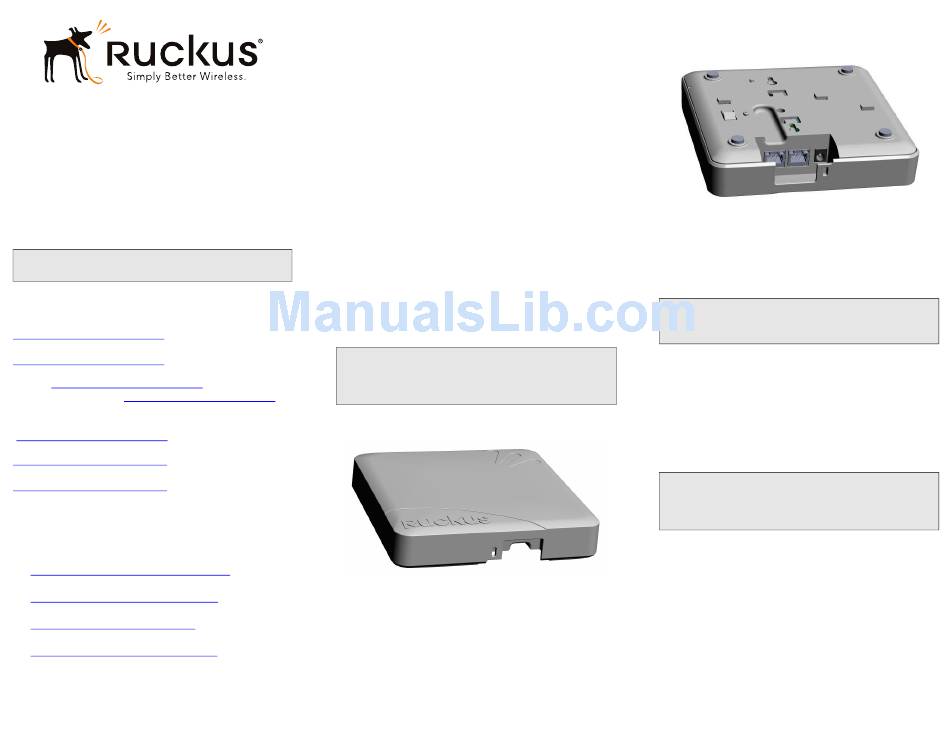

Ruckus Wireless ZoneFlex 7352 Quick Setup Manual

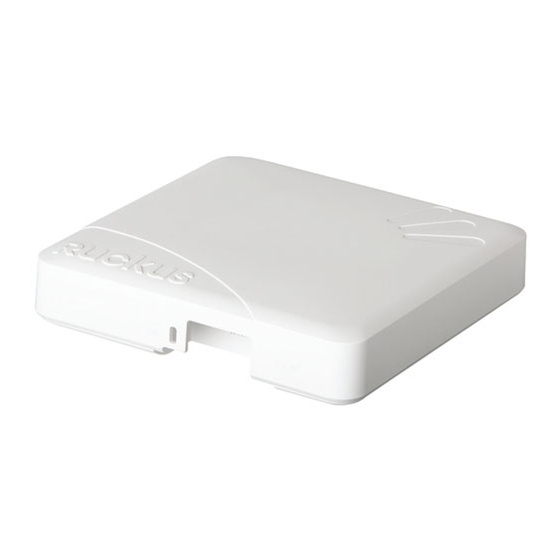

ZoneFlex 7352/7372 802.11n
Multimedia Wi-Fi Access Point

Quick Setup Guide

This Quick Setup Guide provides step-by-step instructions on
how to set up your Ruckus Wireless ZoneFlex Access Point. After
completing the steps described in this Guide, you will be able to
place the Access Point (AP) at your site and provide wireless
network access to users.
The ZoneFlex 7352/7372 requires a minimum of
NOTE:
ZoneFlex firmware version 9.6 and above to operate.
T G O L
HIS UIDE IN THER ANGUAGES
请从以下网站获得该指南的简体中文版
https://support.ruckuswireless.com.
請造訪以下網址，取得此手冊的繁體中文版本
https://support.ruckuswireless.com.
Vous trouverez la version française de ce guide à l'adresse
suivante https://support.ruckuswireless.com.
こ の ガ イ ド の⽇本語版は
https://support.ruckuswireless.com
で ご 覧 く だ さ い。
이 가이드의 한국어 버전은 웹 사이트
(https://support.ruckuswireless.com) 에서 확인하시기 바랍니다 .
Veja a versão em português (Brasil) deste guia em
https://support.ruckuswireless.com.
Puede ver la versión en español (América Latina) de esta guía en
https://support.ruckuswireless.com.
B Y B
EFORE OU EGIN
Before deploying Ruckus Wireless products, please check for the
latest software and the release documentation.
• User Guides and Release Notes are available at
http://support.ruckuswireless.com/documents.
• Software Upgrades are available at
http://support.ruckuswireless.com/software.
• Open Source information is available at
http://opensource.ruckuswireless.com.
• Software License and Limited Warranty available at
http://support.ruckuswireless.com/warranty.
Copyright © 2013 Ruckus Wireless, Inc.
Published June 2013, Part Number 800-70415-001 Rev G
P C
ACKAGE ONTENTS
• ZoneFlex 7352/7372 Access Point
• Mounting screws and anchors (2)
• Security screw (1)
• 15/16-inch T-bar clips (2)
• Alignment spacer (1)
• Regulatory flyer
• Declaration of Conformity (country-dependent)
• Product Warranty Statement
• This Quick Setup Guide
S R
ETUP EQUIREMENTS
• A computer running Windows 7 (procedures for other OS's
are similar)
• One or more of the following:
• A modem (DSL or cable), broadband router, or other
device provided by your Internet Service Provider that
brings Internet access to your site.
• A network switch or a DSL/Internet gateway device.
• Two Ethernet cables (Cat5e or better for PoE in)
• An AC power adapter (sold separately), or
• An 802.3af or 802.3at -compliant Power over Ethernet (PoE)
switch or PoE injector
IMPORTANT!
If the AP is deployed with a ZoneDirector, follow the
ZoneDirector Quick Setup Guide, and connect the AP to your
local network.
S 1: C AP Y
TEP ONNECT THE TO OUR
1 After removing your Ruckus Wireless AP from its package,
place it next to your computer.
2
Using an Ethernet cable, connect your computer's network
port to the 10/100/1000 port on the AP.
3 Using the AC adapter (sold separately), connect the AP to a
convenient (and protected) power source.
• Alternatively, connect the 10/100/1000 port to a PoE
injector or PoE switch for both power and network con-
nectivity.
4 Verify that the Power LED on the external enclosure is a
steady green.
S 2: P
TEP REPARE
S
ETUP
NOTE:
The following procedures assume Windows 7 as the operating
system. Procedures for other OS's are similar.
1
On your Windows 7 computer, configure your network
adapter from the Local Area Connection settings as follows:
• Start > Control Panel > Network and Sharing
Center > Change Adapter Settings
2
Edit the TCP/IPv4 address settings as follows:
C
OMPUTER
• Local Area Connection > Properties > Internet
Protocol Version 4 (TCP/IPv4) > Properties
The TCP/IPv4 Properties dialog box appears.
IMPORTANT!
Write down all of the currently active settings so you can
restore your computer to its current configuration later (when
this process is complete).
Use the following IP address
3 Select
selected) and then make the following entries:
IP address
•
192.168.0.x network)
Subnet mask
•
Default gateway
•
Leave the
4 OK
Click to save your changes.
Your changes are put into effect immediately.
Y C AP
OUR OMPUTER FOR
(if it is not already
: 192.168.0.22 (or any address in the
: 255.255.255.0
: 192.168.0.1
DNS server
fields empty.
Page 1 of 4
