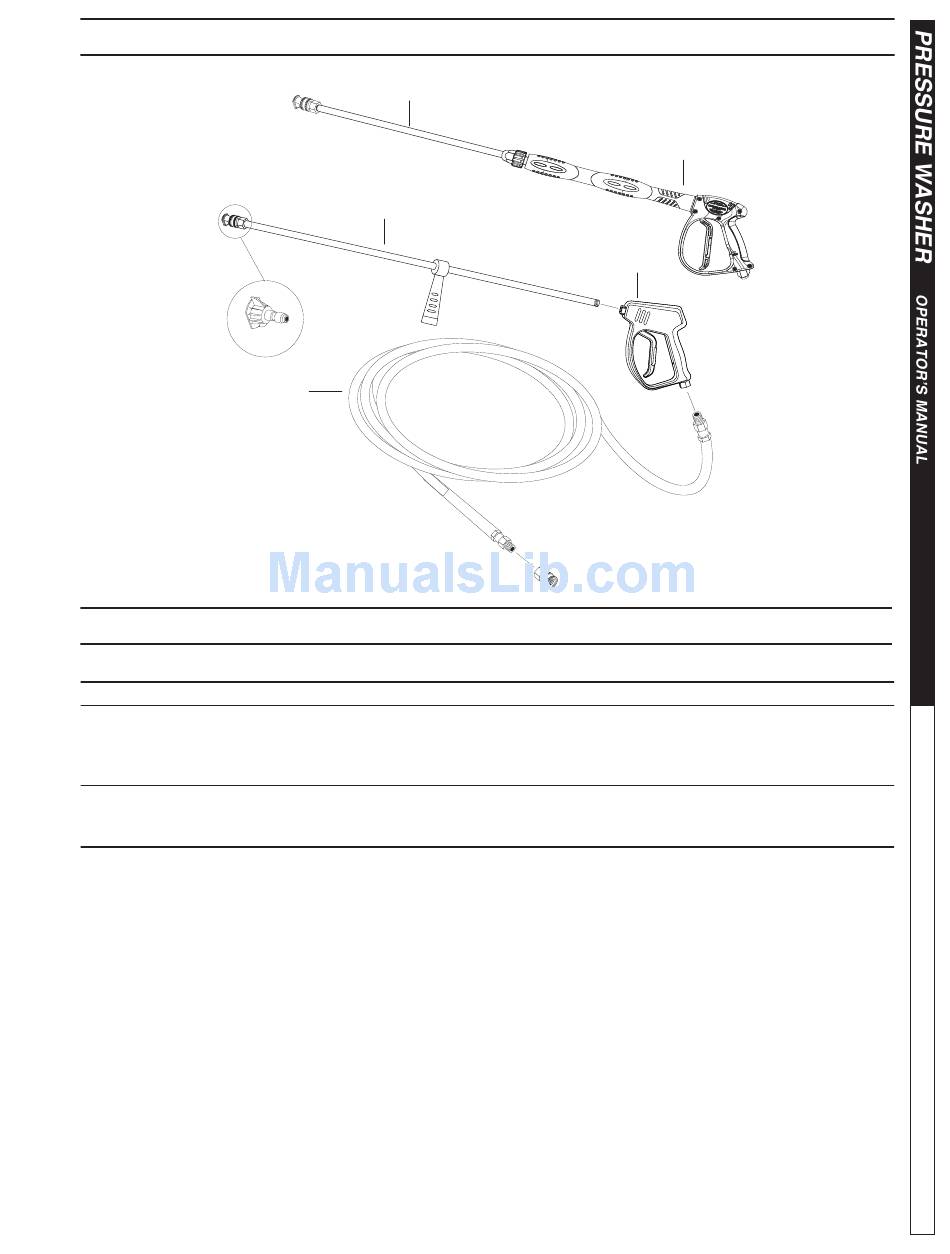

HOSE & SPRAY GUN EXPLODED VIEW
HOSE & SPRAY GUN EXPLODED VIEW PARTS LIST
ITEM
PART NO.
DESCRIPTION
1
Hose High Pressure, See Specifications page 6
2
8.754-769.0
MV925 GUN (HD & DG, Except 4000 PSI Models)
9.802-223.0
Gun, Sk2, 3/8" Inlet, Lance 22mm, Coupler (PC Models, Except 4000 PSI Models)
8.751-269.0
AL12 Eagle3 Trigger Gun (DB , Except 4000 PSI Models)
8.750-247.0
Gun, M407 (All 4000 PSI Models Only)
3
9.802-219.0
Wand Assy, Side Grip w/1/4" Coupler (All HD & DG Models, Except 4000 PSI modesls)
9.802-220.0
Wand, 18" M22 x 1/4" QC (PC3, PC4 & DB Models, Except 4000 PSI Models)
8.783-040.0
Wand, 44" Zinc Plated, Handle & Coupler (All 4000 PSI Models)
s Not shown
3
3
1
CART SERIES • 9.801-629.0 • Rev. 07/17
2
2
QTY
1
1
1
1
1
1
1
1
7
