8.754-696.0
UNLOADER, VBT BANJO 1/2M 3/8M, 3000PSI (SPARE)
VBT UNLOADER EXPLODED VIEW PARTS LIST
ITEM PART #
DESCRIPTION
1*
8.754-929.0 Stem
2*
9.803-912.0 Backup Ring
3*
8.754-930.0 O-ring, Ø2.62 x 6.02
4
8.730-882.0 Stem Connector
5*
9.803-193.0 O-ring, Ø2.62 x 20.24
6*
9.803-908.0 Backup Ring
7
9.803-907.0 Guide Bushing
8*
9.803-906.0 O-ring, Ø1.78 x 14
9*
8.754-959.0 Ball SubAssembly
10*
8.754-933.0 Seat
11*
8.754-934.0 O-ring, Ø1.78 x 12.42
12
8.754-935.0 Valve Body
13
9.802-893.0 Seal Washer 3/8
14
9.803-919.0 Banjo Bolt 3/8
15*
8.754-936.0 O-ring, Ø2.62 x 10.78
16
9.803-920.0 Banjo Bolt, 1/2, w/1/4" Port

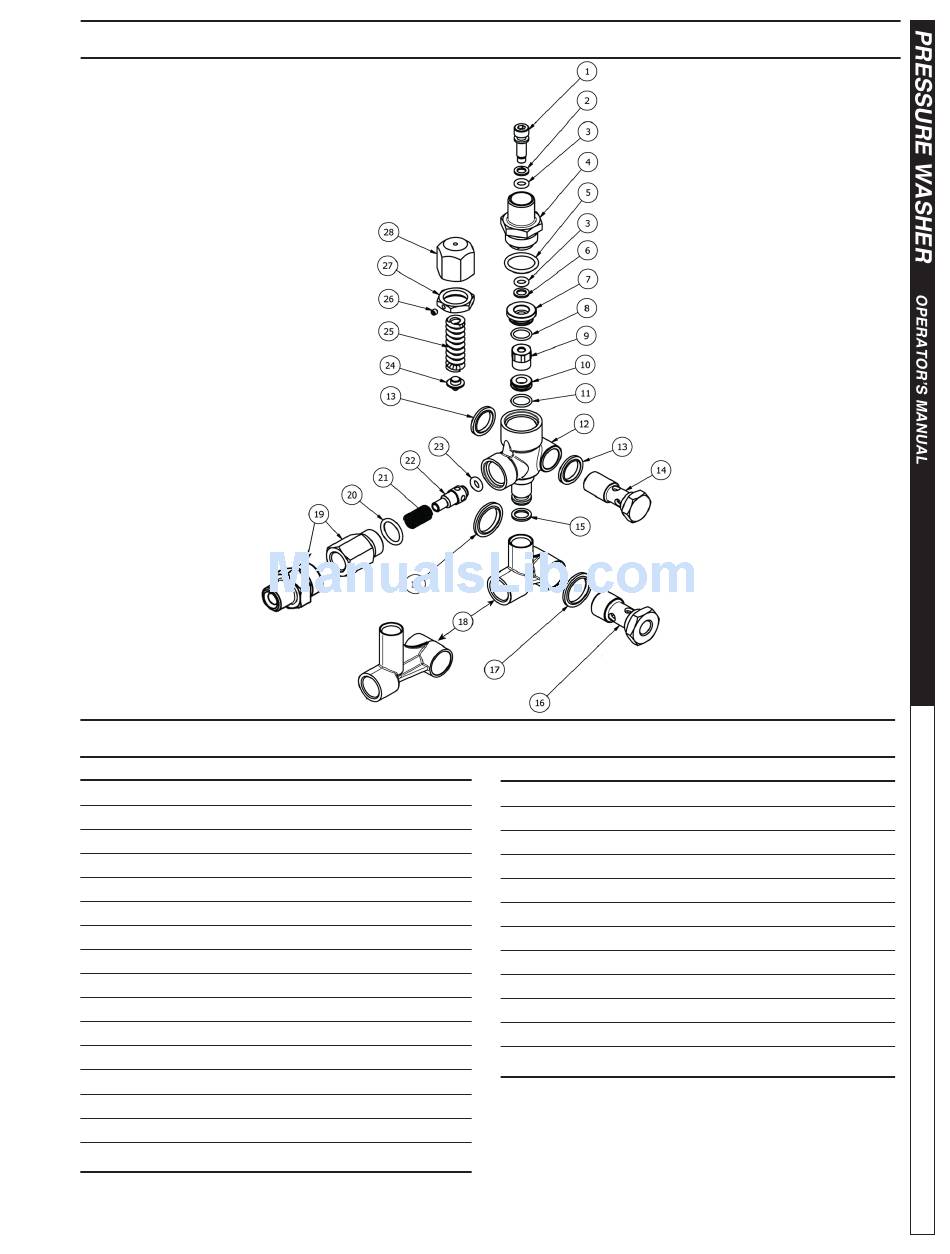

VBT UNLOADER EXPLODED VIEW
KIT QTY
C
A
A
A
A
A
C
C
A,C
A
CART SERIES • 9.801-629.0 • Rev. 07/17
ITEM PART #
1
17
9.803-914.0 Seal Washer 1/2)
1
18
8.754-937.0 Bypass Manifold
2
19
9.802-892.0 Outlet Connector 3/8 MPT
1
20*
9.803-191.0 O-ring, Ø2.62 X 17.13
1
21*
8.933-017.0 Poppet Spring
1
22*
8.754-939.0 Poppet
1
23*
8.754-940.0 O-ring, Ø3 x 6
1
24*
8.754-961.0 Plate
1
25*
8.933-018.0 Spring 1500-4000 PSI
1
26
8.933-021.0 Set Screw
1
27
9.803-925.0 Nut
1
28
9.803-926.0 Knob, Brass, Unloader
1
1
1
Kit A 8.754-941.0 O-Ring Repair Kit
Kit B 8.754-942.0 Outlet Repair Kit
1
Kit C 8.754-957.0 Stem Repair Kit
DESCRIPTION
* Included in Kit
KIT QTY
1
1
1
A,B
1
B
1
B
1
A,B
1
C
1
C
1
1
1
1
13
