Installation

Mount Controller

A

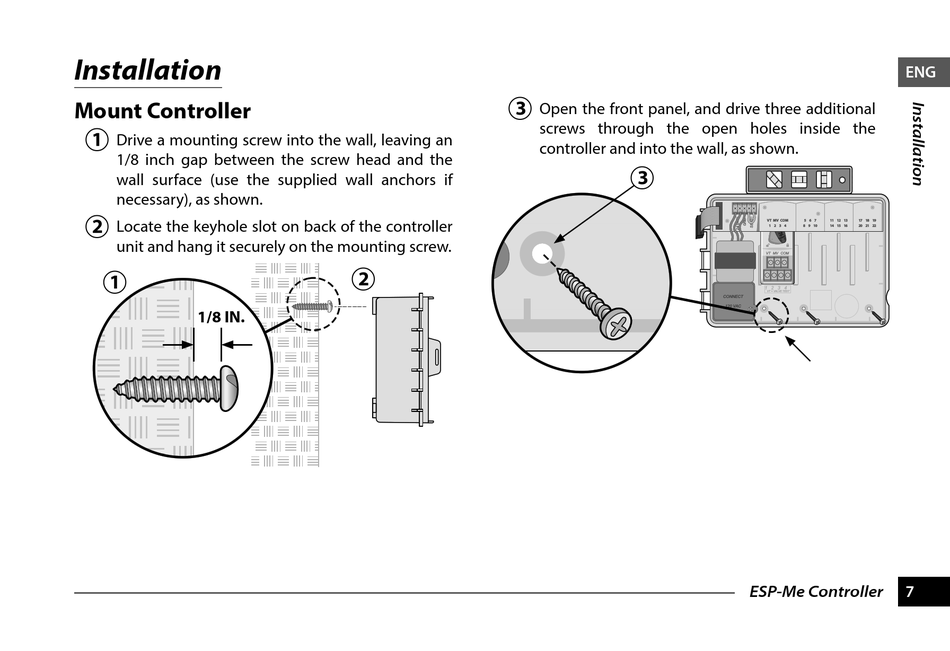

Drive a mounting screw into the wall, leaving an
1/8 inch gap between the screw head and the
wall surface (use the supplied wall anchors if
necessary), as shown.
B
Locate the keyhole slot on back of the controller
unit and hang it securely on the mounting screw.
A
1/8 IN.
C
B
Open the front panel, and drive three additional
screws through the open holes inside the
controller and into the wall, as shown.
C
