General Guide

The numbers in parentheses indicate the pages where each item is explained.

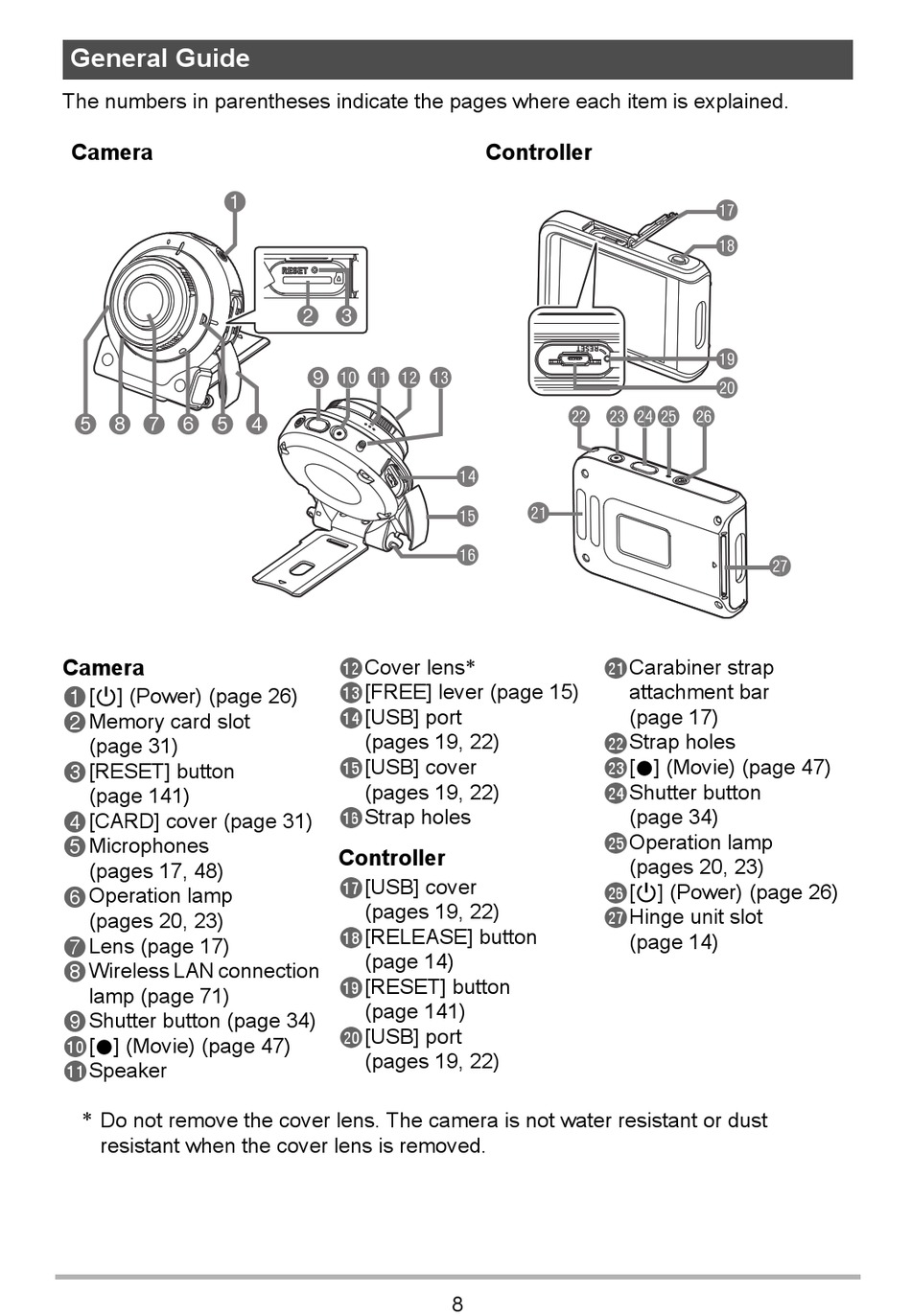

Camera
1
5 8 7 6 5
Camera
[ ] (Power) (page 26)

Memory card slot

(page 31)
[RESET] button

(page 141)
[CARD] cover (page 31)

Microphones

(pages 17, 48)
Operation lamp

(pages 20, 23)
Lens (page 17)

Wireless LAN connection

lamp (page 71)
Shutter button (page 34)

[0] (Movie) (page 47)

Speaker

*
Do not remove the cover lens. The camera is not water resistant or dust
resistant when the cover lens is removed.
2 3
9 bk bl bm bn
4
Cover lens*

[FREE] lever (page 15)

[USB] port

(pages 19, 22)
[USB] cover

(pages 19, 22)
Strap holes

Controller
[USB] cover

(pages 19, 22)
[RELEASE] button

(page 14)
[RESET] button

(page 141)
[USB] port

(pages 19, 22)
Controller
cm cncocp cq
bo
cl
bp
bq







8
br
bs
bt
ck
cr
Carabiner strap
attachment bar
(page 17)
Strap holes
[0] (Movie) (page 47)
Shutter button
(page 34)
Operation lamp
(pages 20, 23)
[ ] (Power) (page 26)
Hinge unit slot
(page 14)
