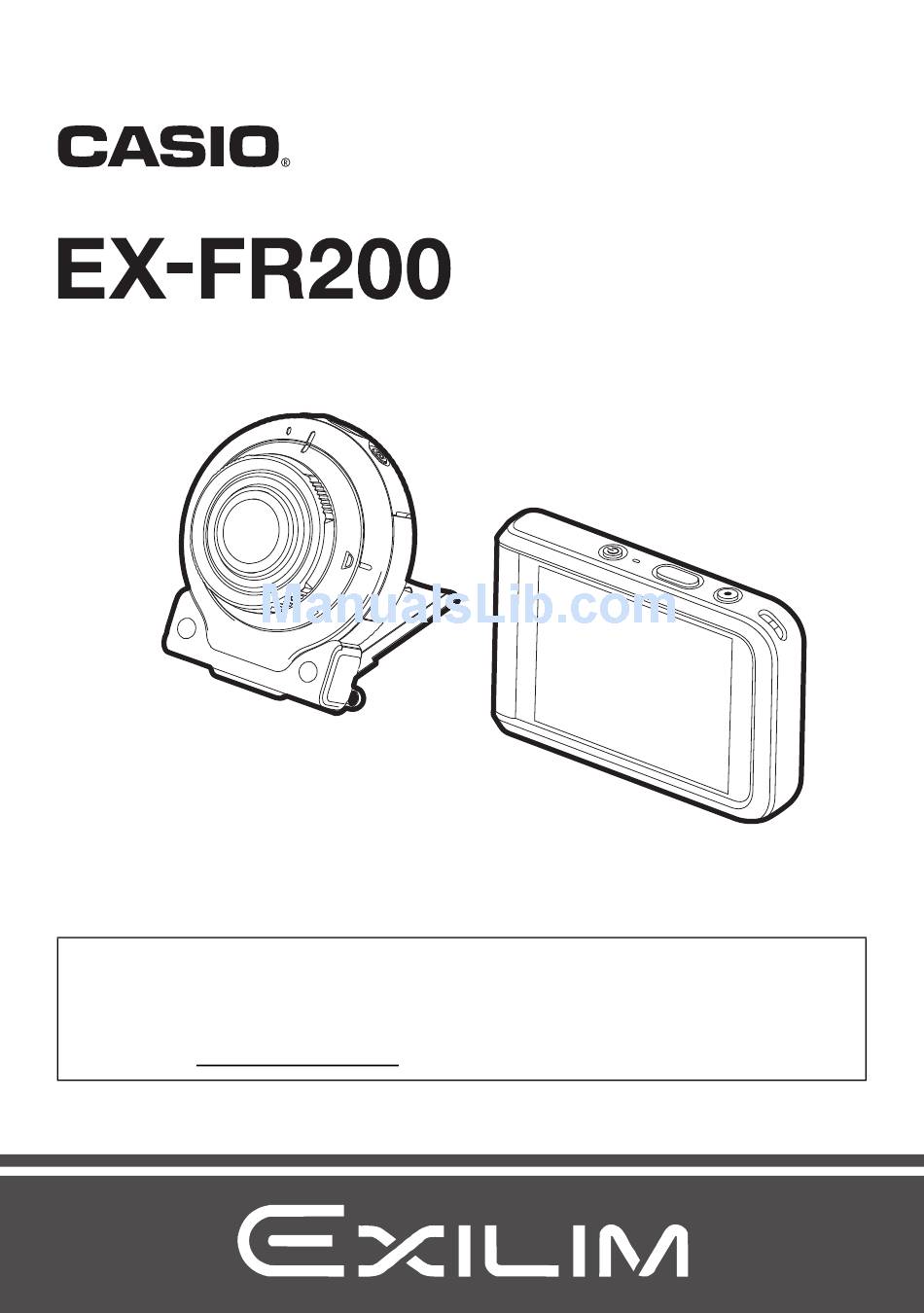

Digital Camera

User's Guide
Thank you for purchasing this CASIO product.
• Before using it, be sure to read the precautions contained in this User's Guide.
• Keep the User's Guide in a safe place for future reference.
• For the most up-to-date information about this product, visit the official EXILIM
Website at http://www.exilim.com/

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EX-FR200 and is the answer not in the manual?

Questions and answers

Related Manuals for Casio EX-FR200

Summary of Contents for Casio EX-FR200

  • Page 1: Digital Camera

    Digital Camera User’s Guide Thank you for purchasing this CASIO product. • Before using it, be sure to read the precautions contained in this User’s Guide. • Keep the User’s Guide in a safe place for future reference. • For the most up-to-date information about this product, visit the official EXILIM...

  • Page 2: Accessories

    Accessories As you unpack your camera, check to make sure that all accessories shown below are included. If anything is missing, contact your original retailer. Hinge Unit Camera Controller • The hinge unit comes (EX-FR200CA) (EX-FR200CT) pre-attached to the camera. Lens cap •...

  • Page 3: Read This First

    CASIO COMPUTER CO., LTD. is forbidden under copyright laws. • CASIO COMPUTER CO., LTD. shall not be held liable for any damages or lost profits suffered by you or any third party due to the use or malfunction of this product.

  • Page 4: Table Of Contents

    Quick Start Basics What you can do with your CASIO camera ......12 Using the Attachment ......... . . 14 Controller .
  • Page 5  Advanced Recording Settings Using the REC Menu ..........49 Shooting by Touching the Monitor Screen .
  • Page 6 Configuring Wireless Connection Settings ......75 Having Images Shot with the Camera Sent  to a Smartphone Automatically .
  • Page 7 Specifying the Display Language ..... . (Language) . 106 Specifying the Controller Sleep State Trigger Time ... . (Sleep) . 106 Formatting Built-in Memory or a Memory Card .

  • Page 8: General Guide

    General Guide The numbers in parentheses indicate the pages where each item is explained. Camera Controller 9 bk bl bm bn cncocp cq Camera Cover lens* Carabiner strap   [FREE] lever (page 15) attachment bar  ] (Power) (page 26) ...

  • Page 9: Monitor Screen Contents And How To Change Them

    Monitor Screen Contents and How to Change Them The monitor screen uses various indicators, icons, and values to keep you informed of the camera’s status. • The sample screens in this section are intended to show you the locations of all the indicators and figures that can appear on the monitor screen in various modes.

  • Page 10: Movie Recording

    . Movie Recording  Movie quality (page 50)  Movie recording time (page 47)  NOTE • If you do not perform any operation for about three seconds during snapshot recording or movie recording, icons will become transparent. . Snapshot Viewing bp bo Camera battery level indicator Current image number/total number of...

  • Page 11: Movie Playback

    NOTE • The folder name and file name in the upper right corner of the monitor screen has the meaning described below (page 101). Example: 100-0023: 23rd image file in the folder named “100CASIO”. . Movie Playback Movie recording time (page 58) ...

  • Page 12: Quick Start Basics

    Quick Start Basics What you can do with your CASIO camera Your CASIO camera is packed with a powerful selection of features and functions to make recording of digital images easier, including the following main functions. . Shooting Shoot without worrying about the angle of view The camera is equipped with a 185°...

  • Page 13: Time Lapse

    . Viewing Time Lapse Creates a movie of snapshots you shot. *See page for more information. . Sharing Wireless Connection Turns your smartphone into a camera remote controller and allows you to select one or more snapshot and/or movie file in camera memory and send a copy to a smartphone.

  • Page 14: Using The Attachment

    Using the Attachment You can configure the camera to suit your specific needs by attaching the hinge unit, which enables attachment of the controller, and other included and optionally available attachments. This way you can configure the camera to suit your specific needs.

  • Page 15: Hinge Unit

    Hinge Unit . To use the hinge unit as a stand . To change the shooting direction by 90 degrees While pulling down on the camera’s [FREE] [FREE] lever lever, rotate the camera clockwise 90 degrees Microphones until you hear a click. •...

  • Page 16: Tripod Nut

    Remove the hinge unit from the camera. . To attach the hinge unit to the camera Align the A mark with the C mark on the hinge unit. Rotate the camera clockwise about 15 degrees until the A mark is aligned with the D mark on the hinge unit.

  • Page 17: Carabiner Strap

    Carabiner Strap Pass the carabiner strap belt around the controller’s carabiner strap attachment bar. Pass the belt through the buckle to flap secure it. Pull on the belt until the belt flap is passed all the way through the buckle. Hook the flap on the buckle.

  • Page 18: Using The Touch Panel

    Using the Touch Panel The monitor screen of the camera is a touch panel. Monitor Screen This means you can perform the following operations by touching the screen with your fingers. Touch Momentarily touching the screen with your finger. Touch the screen to select an icon or menu item, and to configure settings.

  • Page 19: First, Charge The Battery Prior To Use

    NOTE • Applying a commercially available LCD protective sheet will reduce the operation sensitivity of the monitor screen. First, charge the battery prior to use. The camera and the controller each have a built-in rechargeable lithium ion battery. The batteries are not charged when you purchase the camera, so you will need to charge both the camera and controller before using them.
  • Page 20 . Operation Lamp Indications While power is off Operation Lamp Status Meaning Lit red Charging Charging stopped due to abnormal internal Flashing red temperature, USB-AC adaptor problem, battery problem (page 133), timer operation. Unlit Charging complete While power is on •...
  • Page 21 IMPORTANT! • A battery that has not been used for a long time and/or ambient temperature can cause charging to take longer than normal. These conditions may also cause the operation lamp to flash red. If this happens, refer to page 133. •...
  • Page 22 . To charge using a USB connection to a computer While the camera and controller are turned off, connect in the sequence shown below   [USB] port Computer (power turned on) USB port Micro USB cable [USB] cover (included with camera) When plugging in the connectors, orient this marking as described below.
  • Page 23 . Operation Lamp Indications While power is off Operation Lamp Status Meaning Lit red Charging Charging stopped due to abnormal internal Flashing red temperature, USB-AC adaptor problem, battery problem (page 133), timer operation. Unlit Charging complete While power is on •...
  • Page 24 IMPORTANT! • The first time you connect the camera or controller to your computer with the USB cable, an error message may appear on your computer. If this happens, disconnect and then reconnect the USB cable. • A battery that has not been used for a long time, certain types of computers, and connection conditions can cause charging to take longer than normal.
  • Page 25 Checking the Current Battery Level As battery power is consumed, a battery indicator on the monitor screen indicates its current level as shown below. Level High Camera Battery Indicator Controller * White Indicator Color White indicates battery power is low. Charge the battery as soon as possible. indicates that the battery is about to go dead.

  • Page 26: Turning Power On And Off

    Turning Power On and Off . Camera-Controller Wireless Connection (Bluetooth) The camera and controller communicate over a Bluetooth wireless technology connection. Once you perform the “pairing” operation required for Bluetooth wireless technology connection, the camera and controller will automatically connect to each other whenever you turn them on.
  • Page 27 • The maximum range for shooting with the controller’s shutter button is around 10 meters (32.8'). The maximum range for viewing the image on the controller’s monitor screen is around five meters (16.4'). • If the connection is poor, the controller operation lamp will flash green and “...

  • Page 28: Configuring Basic Settings The First Time You Turn On The Camera

    Toggling Between the REC Mode and PLAY Mode “ ” (Show Icons) In the REC mode, touch “ ” (PLAY). • If “ ” (PLAY) is not displayed on the screen, you can touching the To enter the Review image (page 57), or switch PLAY mode to the PLAY mode by touching “...
  • Page 29 Touch the date display format you want. Example: July 10, 2017 YY/MM/DD 17/7/10 DD/MM/YY 10/7/17 MM/DD/YY 7/10/17 Set the date and the time. • Touch the value you want to change (year, month, day, hour, minute) and then touch “ ”, “...

  • Page 30: Preparing A Memory Card

    Preparing a Memory Card Though the camera has built-in memory that can be used to store images and movies, you probably will want to purchase a commercially available memory card for greater capacity. The camera does not come with a memory card. Images recorded while a memory card is loaded are saved to the memory card.

  • Page 31: To Load A Memory Card

    • Never insert anything besides a supported memory card (page 30) into the memory card slot. • Should water or any foreign object ever get into the card slot, immediately turn off the camera, and contact your retailer or nearest CASIO authorized service center. Quick Start Basics...

  • Page 32: To Format (Initialize) A New Memory Card

    . To replace the memory card Press the memory card and then release it. This will cause it to pop out of the memory card slot slightly. Pull the card out the rest of the way and then insert another one. •...

  • Page 33: Shooting A Snapshot

    Shooting a Snapshot Your camera has a variety of different recording modes to suit various shooting conditions and objectives (page 39). This section explains how to use the Dome View recording mode. Selecting the Dome View Recording Mode This mode shoots a domed image that covers a much wider area than a conventional camera.

  • Page 34: To Shoot A Snapshot

    To shoot a snapshot Point the camera at the subject. Press the camera or controller shutter button. Camera The camera will automatically adjust exposure and Operation lamp focus, and then shoot the snapshot. • Normally, shooting a snapshot will cause the operation lamp to flash red once.

  • Page 35: Viewing Snapshots

    Viewing Snapshots Use the following procedure to view snapshots on the camera’s monitor screen. • For information about how to play back movies, see page 58. Touch “ ” (PLAY) to enter the PLAY mode. “ ” (PLAY) This will display one of the snapshots currently stored in memory.

  • Page 36: Deleting Snapshots And Movies

    Deleting Snapshots and Movies If memory becomes full, you can delete snapshots and movies you no longer need in order to free up storage and record more images. IMPORTANT! • Remember that a file (image) delete operation cannot be undone. .

  • Page 37: Snapshot Shooting Precautions

    Snapshot Shooting Precautions Operation • If unwanted light is shining onto the lens, shade the lens with your hand when shooting an image. Monitor Screen when Shooting Snapshots • Subject brightness conditions can cause monitor screen response to slow and can cause digital noise in the monitor screen image.

  • Page 38: Recording Images

    Recording Images Touching the monitor screen in the REC mode will display a screen for configuring REC mode settings. To configure REC mode settings Press [ ] (Power) to turn on the camera and enter the REC mode. • If the camera is in the PLAY mode, touch “ ”...

  • Page 39: Selecting A Recording Mode And Shooting A Snapshot

    Selecting a Recording Mode and Shooting a Snapshot The camera has a variety of different recording modes. In the REC mode, touch the “ ” (Show Recording mode icon Icons). Touch the recording mode icon. Touch the icon of the recording mode you want to use.

  • Page 40: Shooting A Panorama Image

    Shooting a Panorama Image (Panorama) You can use the procedure below to shoot a 360° panorama image without moving the camera. This is done by expanding a Full View image with the center of the lens as a reference point. The size of the recorded image is 7456 1994.

  • Page 41: Shooting A 4:3 Aspect Ratio Image

    Shooting a 4:3 Aspect Ratio Image (Super Wide Angle) Use the procedure below to record an image produced by cropping the center (4:3 aspect ratio) of the scene being picked up by the lens. The size of the recorded image is 3232 2424.

  • Page 42: Shooting Scenes Of An Activity At A Fixed Interval

    Shooting Scenes of an Activity at a Fixed Interval (Interval Shooting) You can use Interval Shooting to shoot snapshots and movies automatically at a specified interval. REC Screen Scene Description Icon Display Standard Shoots at a fixed interval. Hiking Shoots using a setup optimized for hiking. Cycling Shoots using a setup optimized for cycling.
  • Page 43 Touch an item and then change its setting. Allows selection of one of the shooting intervals below. Interval 5 sec, 15 sec, 30 sec, 1 min, 2 min t³: Shoots five snapshots followed by a five-second movie. ³ Only: Shoots a five-second movie. Audio is also recorded with Shooting Style this setting.
  • Page 44 NOTE • Anti-shake is applied in accordance with the current camera settings. However, image anti-shake is not applied. • The current shooting setup, including zoom, cannot be changed while shooting with this function. • The image after each recording operation is displayed only while “Type 1” is selected as the Review image type (page 57).
  • Page 45 . To stop an Interval Shooting operation On the controller, press any button to recover from the sleep state. Touch “ ” icon. Touch “Yes”. This stops the Interval Shooting operation. . To shoot images manually during an Interval Shooting operation You can shoot snapshots and movies manually even while an Interval Shooting operation is in progress.

  • Page 46: Shooting With Zoom

    Shooting with Zoom Digital zoom up to 4X is supported when shooting with the Super Wide Angle recording mode. Note that a digital process is used to enlarge the center of the image, so there is deterioration of image quality. Perform the required screen operation to change the zoom factor as desired.

  • Page 47: To Record A Movie

    To record a movie The following procedure explains how to record a movie. • You can change the movie quality setting when shooting with the Super Wide Angle recording mode. See page 50 for details. Press [0] (Movie). Recording time This will start recording.
  • Page 48 IMPORTANT! • Spending a long time using movie recording will cause the camera to become slightly warm to the touch. This is normal and does not indicate malfunction. • When the movie quality setting is something other than “HS120” or “HS240”, audio will be recorded along with the movie image.

  • Page 49: Advanced Recording Settings

    Advanced Recording Settings The following are menu operations you can use to configure various camera settings. Using the REC Menu . Example Menu Screen Operation In the REC mode, touch “ ” (Show Icons). Touch “MENU”. This will display the menu screen. •...

  • Page 50: Shooting By Touching The Monitor Screen

    Shooting by Touching the Monitor Screen (Touch Shooting) Procedure Enter the REC mode * MENU * “ r REC MENU” Tab * Touch Shooting When “On” is selected for this setting, you can shoot by touching the screen. NOTE • Touch Shooting cannot be used while the camera is configured with the setting below.

  • Page 51: Reducing Blur Due To Camera Movement During Movie Recording

    REC Mode Movie Quality Recording speed Movie size Panorama Panorama 30 fps 2880 Reducing Blur Due to Camera Movement During Movie Recording (Movie Anti Shake) Procedure Enter the REC mode * MENU * “ r REC MENU” Tab * Movie Anti Shake You can reduce blur due to camera movement during movie recording by selecting (Standard) or (Strong) setting.

  • Page 52: Shooting A Burst Of Images

    Shooting a Burst of Images (High Speed CS) Procedure Enter the REC mode * MENU * “ r REC MENU” Tab * High Speed CS Use the procedure below to shoot a burst of images. Touch an item that matches what you want to shoot. Setting Description 30 fps...

  • Page 53: Correcting Image Brightness

    Correcting Image Brightness (Brightness) Procedure Enter the REC Mode * MENU * “ r REC MENU” Tab * Brightness You can manually adjust an image’s exposure value (EV value) before shooting it. The exposure compensation value you set remains in effect until you change it or turn off the camera (which causes it to revert to “0.0”).

  • Page 54: Adjusting White Balance

    Adjusting White Balance (White Balance) Procedure Enter the REC Mode * MENU * “ r REC MENU” Tab * White Balance You can adjust white balance to match the source of light available where you are shooting and avoid the blue cast that results when shooting outdoors when it is cloudy, and the green cast that results when shooting under fluorescent lighting.

  • Page 55: Specifying Iso Sensitivity

    Specifying ISO Sensitivity (ISO) Procedure Enter the REC Mode * MENU * “ r REC MENU” Tab * ISO ISO sensitivity is a measure of sensitivity to light. Setting Description Auto Adjusts sensitivity automatically according to conditions Lower Slow shutter speed Less noise ISO80 sensitivity...

  • Page 56: Self-Shooting

    Self-shooting (Mirror Image) Procedure Enter the REC Mode * MENU * “ r REC MENU” Tab * Mirror Image Turning on this function displays the controller monitor image as a mirror image. This comes in handy when using the controller to compose self-shot images. The image is recorded in normal orientation (not mirror imaged).

  • Page 57: Turning On Image Review

    Turning on Image Review (Review) Procedure Enter the REC Mode * MENU * “ r REC MENU” Tab * Review While Review is turned on, the camera will display an image immediately after it is recorded. Type 1 Displays a full-screen view of the image for about one second. Displays a review image in the lower left corner (when the controller is in landscape orientation) or the upper left corner (in portrait orientation) Type 2...

  • Page 58: Viewing Snapshots And Movies

    Viewing Snapshots and Movies Viewing Snapshots See page 35 for the procedure for viewing snapshots. Viewing a Movie Touch “ ” (PLAY) to enter the PLAY mode. Image quality Flick left or right across the screen image to scroll through the movies until the one you want is displayed.

  • Page 59: Viewing A Panorama Snapshot

    Viewing a Panorama Snapshot In the PLAY mode, flick left or right to display the panorama snapshot you want to view. Touch “< >” to start playback of the panorama. Panorama playback causes the image to scroll left or right. •...

  • Page 60: Viewing The Image Menu

    Viewing the Image Menu The image menu shows multiple images on a single screen. In the PLAY mode, touch “ ” or squeeze your fingers on the screen. This displays the image menu. • Touch “ ”, “ ”, or flick upwards or downwards to scroll to the next page of images.

  • Page 61: Creating A Time Lapse Movie

    Creating a Time Lapse Movie (Time Lapse) This function creates a Time Lapse Movie up to 10 minutes long by combining snapshots shot with the camera on a particular date, in the order they were shot. In the PLAY mode, touch “ ”...
  • Page 62 NOTE • If the snapshots you are using are different from the aspect ratio of the Time Lapse Movie, there will be black bands along the top and bottom or left and right of the image. • When there is a large number of images, this function will stop processing when the Time Lapse Movie reaches a length of 10 minutes.

  • Page 63: Other Playback Functions (Play)

    Other Playback Functions (PLAY) The following are menu operations you can use to configure various camera settings. Using the PLAY Menu . Example Menu Screen Operation In the PLAY mode, touch “ ” (Show Icons). Touch “MENU”. This will display the menu screen. •...

  • Page 64: Rotating An Image

    Rotating an Image (Rotation) Procedure Enter the PLAY Mode * MENU * Rotation Flick left or right to display the image you want to rotate. Touch “ ”. This will rotate the image 90 degrees to the left. When the image is in the orientation you want, touch “ ”.

  • Page 65: Generating An Image From A Full View Image

    Generating an Image from a Full View Image (Generate Image) Procedure Enter the PLAY Mode * MENU * Generate Image You can use the procedure below to generate a cropped image or a panorama image from a Full View image or a Global View image. Flick the screen to the left or right to scroll through images until the Full View or Global view image you want is displayed.

  • Page 66: Connecting The Camera With A Smartphone (Wireless Connection)

    Connecting the Camera with a Smartphone (Wireless Connection) Controlling Your Camera with a Smartphone Your camera has both Bluetooth wireless technology and wireless LAN capabilities built in. After establishing a wireless connection with a smartphone, you can perform the operations described in the table below. Requires installation of the EXILIM Connect app on your smartphone.
  • Page 67 With this function: You can do this: View on phone View snapshots stored in camera memory on a smartphone, and copy snapshots and movies to a smartphone for viewing (page 74). IMPORTANT! • Inside an aircraft or anywhere else where use of wireless communication is restricted or prohibited, do not use this camera.

  • Page 68: Using A Wireless Mode

    • Note that to view the EXILIM Connect User’s Guide (PDF), you will have to install Adobe Reader. Consult CASIO authorized service center if you are unable to open to display the PDF format User’s Guide. • Note that EXILIM Connect User’s Guides may not be available in all languages. If you cannot find a EXILIM Connect User’s Guide in your native language, please...

  • Page 69: Getting Ready To Establish A Connection Between A Smartphone And Your

    For information about OS versions (Android and iOS) supported by the EXILIM Connect app, visit the Google Play or the App Store download site, or the Official CASIO Digital Camera Website (http://www.exilim.com/). . App operation guarantees No guarantees are made concerning the ability to operate the EXILIM Connect app on any particular smartphone or tablet.

  • Page 70: Establishing A Wireless Connection For The First Time

    Establishing a Wireless Connection for the First Time The first time you establish a wireless connection between the camera and a smartphone, you need to use the procedure below to configure wireless connection settings. This operation is required for the first connection only. .
  • Page 71 NOTE • “Auto Send” (page 75) will be turned on after you configure wireless connection settings on the camera and smartphone. • After the camera is paired, Bluetooth wireless technology operation will consume battery power even when the camera it turned off. Because of this, it is recommended that you charge the camera’s battery before you plan to use it.

  • Page 72: Using A Smartphone As A Camera Remote Controller (Shoot With Phone)

    . What to do if you are unable to establish a wireless LAN connection between the camera and a smartphone. This problem may be caused when the smartphone is already wirelessly connected to one of the networks or devices below. Go to your smartphone’s Wi-Fi settings and select this camera’s SSID.

  • Page 73: Sending A Snapshot Or Movie File From Camera Memory To A Smartphone

    For the smartphone’s Wi-Fi settings, select the SSID displayed on the camera and establish a wireless LAN connection between the camera and smartphone. On the smartphone, start up the EXILIM Connect app. Compose the image on the smartphone’s screen as you shoot. For information about how to use “Shoot with phone”, refer to the EXILIM Connect manual (page 68).

  • Page 74: Viewing Snapshots And Movies In Camera Memory On A Smartphone

    Viewing Snapshots and Movies in Camera Memory on a Smartphone (View on phone) View snapshots stored in camera memory on a smartphone, and copy snapshots and movies to a smartphone for viewing. . Bluetooth Wireless Technology Connection Perform one of the operations below. –...

  • Page 75: Configuring Wireless Connection Settings

    Configuring Wireless Connection Settings This section explains wireless mode operations and setting items. Touch the “ ” (Wireless) icon. This will display the wireless mode screen. • Pressing the shutter button will return to the screen that was displayed before the wireless mode screen.

  • Page 76: Specifying Images To Be Sent By Auto Send

    NOTE • Auto Send can be used only with a smartphone that supports Bluetooth Smart. Both a Bluetooth and wireless LAN connection are required between the camera and smartphone to auto send camera images. • You can specify the size of the image sent to the smartphone using “Resize When Sending”...

  • Page 77: Resizing Snapshots Before Sending Them To A Smartphone

    Resizing Snapshots before Sending Them to a Smartphone (Resize When Sending) Procedure ” (Wireless) * Wireless settings * Resize When Sending “ This feature can be use to resize snapshots before they are sent to a smartphone using “Shoot with phone” or “Send to phone”. Resizing only affects snapshots that satisfy the conditions below.

  • Page 78: Unpairing The Camera From A Smartphone

    NOTE • Changing the wireless LAN password will terminate the connection with the smartphone. To reconnect with the smartphone, configure wireless connection settings (page 70). If your smartphone does not support Bluetooth Smart, perform the operations below to change your smartphone’s Wi-Fi settings. –...

  • Page 79: Using Two Cameras At The Same Time (Multi Camera Mode)

    Using Two Cameras at the Same Time (Multi Camera Mode) What you can do with two cameras You can register two cameras on the controller and operate them both at the same time or individually. Feature Description Simultaneous shooting with You could point one camera at yourself and the two cameras other camera at a scene, and simultaneously...

  • Page 80: Preparing A Second Camera To Be Registered On The Controller

    – Separately available EX-FR100CA (available in Japan only) or EX-FR200CA digital camera – EX-FR100 or EX-FR200 camera Preparing a Second Camera to be Registered on the Controller Perform the steps below on the second camera before trying to register it on the controller.
  • Page 81 NOTE • Up to two cameras can be registered at one time. To add a new camera while two cameras are already registered, you will need to first unregister one of the registered cameras. • A message will appear if camera registration fails, and then the display will return to the screen that was shown before you touched the “...
  • Page 82 . Camera Connection Priority (Priority) Normally, when two cameras are registered on the controller, turning on the controller and cameras automatically makes the first camera detected Camera 1 (main camera) and the second camera detected Camera 2. You can also use the procedure below to define one of the cameras as Camera 1 (main camera).

  • Page 83: Multi Camera Mode

    Multi Camera Mode The controller is in the Multi Camera Mode while there are two cameras registered on it. Turning on the controller and the two cameras causes the controller to connect with Camera 1 (main camera) first. At this time, “ ”...
  • Page 84 . Exiting the Multi Camera Mode Exit the Multi Camera Mode whenever you want to use the controller with a single camera. Touch “ ” on the screen. Touch the screen of the camera you want to use. This exits the Multi Camera Mode and displays the image of the camera you selected above.

  • Page 85: Shooting With The Multi Camera Mode

    Shooting with the Multi Camera Mode This section provides an overview of how to shoot images using the Multi Image screen and the Single Image screen in the Multi Camera Mode. For more detailed information, see “Shooting a Snapshot” (page 33). Shooting with the Multi Image Screen You can use this screen to display images from the two cameras side by side (or above and below in the case of portrait orientation).
  • Page 86 . Shooting with a Single Camera You can use the operations below to shoot on either one of the cameras while viewing images of both cameras on the Multi Image screen. To shoot a snapshot Press the Camera 1 or Camera 2 shutter button. This shoots a snapshot on the camera whose shutter button you pressed.
  • Page 87 . Multi Image Screen Operations • You cannot configure camera REC mode settings while the Multi Image screen is displayed. To configure such settings, touch “ ” or “ ” to display the Single Image screen of the camera whose REC mode settings you want to configure, and then touch the REC Mode icon.

  • Page 88: Shooting With The Single Image Screen

    Shooting with the Single Image Screen You can use the operations below to shoot with either one of the cameras while viewing its image on the Single Image screen. Camera 1 or Camera 2 REC screen Switches to the Multi Image screen.
  • Page 89 . Single Image Screen Operations • Menu screen, REC mode screen, and wireless mode settings you configure for Camera 1 or Camera 2 on the Single Image screen are maintained when you return to Multi Image screen and even when you exit the Multi Camera Mode. •...

  • Page 90: Viewing Snapshots And Movies In The Multi Camera Mode

    Viewing Snapshots and Movies in the Multi Camera Mode This section provides an overview of how to view images using the Multi Image screen and the Single Image screen in the Multi Camera Mode. For more detailed information, see “Viewing Snapshots and Movies” (page 58). Multi Image Screen Operations You can use this screen to display the playback screens of the two cameras side by side (or above and below in the case of portrait orientation) and view snapshots and...
  • Page 91 . To playback movies or panorama images shot with both cameras simultaneously On the Camera 1 or Camera 2 screen, display the movie or panorama image you want to view. While there is a movie or panorama image displayed on the playback screen of both Camera 1 and Camera 2, “...

  • Page 92: Single Image Screen Operations

    Single Image Screen Operations You can use the operations below to view snapshots or movies of either Camera 1 or Camera 2 on the Single Image screen. Camera 1 or Camera 2 PLAY screen Switches to the Multi Image screen. Switches the Single Image screen between the two cameras.

  • Page 93: Printing

    Printing Professional Print Service You can take a memory card that contains the images you want to print to a professional print service and have them printed. Printing on a Home Printer You can use a printer equipped with a memory card slot to print images directly from a memory card.

  • Page 94: Using The Camera With A Computer

    Using the Camera with a Computer Things you can do using a computer... You can perform the operations described below while the camera is connected to a computer. Save images to a • Save images and view them manually computer and (USB connection) (pages 95, 98).

  • Page 95: Viewing And Storing Images On A Computer

    Viewing and Storing Images on a Computer You can connect the camera to your computer in order to view and store images (snapshot and movie files). Never use your computer to modify, delete, move, or rename any image files that are in the camera’s built-in memory or on its memory card. Doing so can cause problems with the camera’s image management data, which will make it impossible to play back images on the camera and can drastically alter remaining memory capacity.
  • Page 96 Double-click “Removable Disk”. • Your computer recognizes the memory card loaded in the camera (or built-in memory if there is no card) as a removable disk. Right-click the “DCIM” folder. On the shortcut menu that appears, click “Copy”. Windows 10, Windows 8.1 users: Click “Documents”. Windows 7, Windows Vista users: Click “Start”...

  • Page 97: Playing Movies

    Playing Movies To play back a movie, first copy it to your computer and then double-click the movie file. Some operating systems may not be able to play back movies. If this happens, you need to install separately available software. •...

  • Page 98: Using The Camera With A Macintosh

    Using the Camera with a Macintosh When you want to Operating Required Software do this: System Version page: Save images to your Macintosh and view OS X Installation not required. them there manually Save images to your Photos or iPhoto, which comes Macintosh OS X bundled with some Macintosh...
  • Page 99 . To connect the camera to your computer and save files On the camera, hold down [ [USB] port (Power) for about two seconds to turn off power. Next, use the micro USB cable that comes with the camera to connect it to your computer's USB port.

  • Page 100: Playing A Movie

    . To view copied images Double-click the camera’s drive icon. Double-click the “DCIM” folder to open it. Double-click the folder that contains the images you want to view. Double-click the image file you want to view. • For information about file names, see “Memory Folder Structure” on page 102. •...

  • Page 101: Files And Folders

    Files and Folders The camera creates a file each time you shoot a snapshot, record a movie, or perform any other operation that stores data. Files are grouped by storing them in folders. Each file and folder has its own unique name. •...

  • Page 102: Memory Card Data

    File System (DCF). . About DCF The following operations are supported for DCF-compliant images. Note, however, that CASIO makes no performance guarantees concerning these operations. • Transferring this camera’s DCF-compliant images to another manufacturer’s camera and view them. • Printing this camera’s DCF-compliant images on another manufacturer’s printer.

  • Page 103: Other Settings (Set Up)

    Other Settings (Set Up) This section explains menu items that you can use to configure settings and perform other operations in both the REC mode and PLAY mode. For information about menu operations, see page 49. Adjusting Monitor Screen Brightness (Screen) Procedure MENU * “...

  • Page 104: Locking The Camera Or Controller Screen Orientation

    Locking the Camera or Controller Screen Orientation (Rotation Lock) Procedure MENU * “ Setup” Tab * Rotation Lock You can use this setting to fix the orientation of the camera or controller screen image, or allow the orientation to be detected and automatically rotated as required. The camera detects its orientation when you are shooting, and stores orientation information along with the image data.

  • Page 105: Using The Vibration Function

    Using the Vibration Function (Vibration) Procedure MENU * “ Setup” Tab * Vibration While “On” is selected for this function, the controller will vibrate whenever any one of the events described below occurs. • When a preview of an image that what just shot appears on the controller screen •...

  • Page 106: Specifying The Display Language

    Specifying the Display Language (Language) Procedure MENU * “ Setup” Tab * Language . Specify the display language you want. Flick upwards and downwards until you find the language you want, and then touch to select it. • Camera models sold in certain geographic areas may not support display language selection.

  • Page 107: Formatting Built-In Memory Or A Memory Card

    Formatting Built-in Memory or a Memory Card (Format) Procedure MENU * “ Setup” Tab * Format If a memory card is loaded in the camera, this operation will format the memory card. It will format built-in memory if no memory card is loaded. •...

  • Page 108: Registering A Second Camera

    Registering a Second Camera (Multi Camera Mode) Procedure MENU * “ Setup” Tab * Multi Camera You can connect a second camera to the controller. See page 79 for details. Other Settings (Set Up)

  • Page 109: Appendix

    • The battery is intended for use with a CASIO Digital Camera only. Use with any other device creates the risk of the battery damage, or deterioration of battery performance and service life.
  • Page 110 DANGER • Failure to observe any of the following precautions creates the risk of battery overheating, fire, and explosion. – Never use or leave the battery near open flame. – Do not expose the battery to heat or fire. – Make sure the battery is oriented correctly when charging it. –...
  • Page 111 2. If you are using the USB-AC adapter to power the camera, unplug the power plug from the power outlet. 3. Contact your retailer or nearest CASIO authorized service center. . Keep Away From Fire • Never expose the camera to fire, which can cause it to explode and creates the risk of fire and personal injury.
  • Page 112 • Except when disposing of the camera, never try to take it apart or modify it in any way. Doing so creates the risk of electric shock, burn injury, and other personal injury. Be sure to leave all internal inspection, maintenance, and repair up to your retailer or nearest CASIO authorized service center. Appendix...

  • Page 113: Memory Cards

    2. If you are using the USB-AC adapter to power the camera, unplug the power plug from the power outlet. 3. Contact your retailer or nearest CASIO authorized service center. . Memory Cards • Memory cards are small and present a risk of accidentally being swallowed by infants and young children.
  • Page 114 Grasp the power plug and pull. . Built-in Rechargeable Battery • If battery charging does not end normally within the specified charging time, stop charging anyway and contact your local CASIO authorized service center. Continued charging creates the risk of battery overheating, fire, and explosion.

  • Page 115: Monitor Screen

    CAUTION . Locations To Be Avoided • Never leave the camera in any of the following types of locations. Doing so creates the risk of fire and electric shock. – Areas subject to large amounts of humidity or dust – Food preparation areas or other locations where oil smoke is present –...

  • Page 116: Shock Resistant, Splashproof, Dustproof

    IMPORTANT! • The shock resistance, splashproofing, and dustproofing of this product are based on CASIO test results, and do not constitute any guarantee that the product will perform, will not be damaged, or will not malfunction under such conditions. . Precautions before Underwater Use This camera can be used to shoot images underwater up to a depth of 1.5 meters...
  • Page 117 • Check the contact surfaces of the [CARD] cover and [USB] cover gaskets for dirt, sand, and any other foreign matter. Clean contact surfaces by wiping them with a soft, clean, dry cloth. Note that a single strand of hair or a single grain of sand can allow water to leak into the camera.
  • Page 118 • In order to maintain splashproofing, replacement of the camera’s gaskets is recommended once each year. Note that you will be charged for gasket replacement. Contact a CASIO authorized service center or your original retailer for gasket replacement. Appendix...
  • Page 119 • CASIO COMPUTER CO., LTD. shall not be held liable for any accident that may occur while the camera is being used underwater. • CASIO COMPUTER CO., LTD. shall not be held liable for any damages or for any accident (personal injury, etc.) that occurs while using the camera underwater.

  • Page 120: Precautions During Use

    Precautions During Use . Data Error Precautions Your digital camera is manufactured using precision digital components. Any of the following creates the risk of corruption of data in camera memory. – Removing the memory card while the camera is performing some operation –...

  • Page 121: Caring For Your Camera

    Use the wireless function of this product only as specifically described in this manual. Any other use is unintended use, and CASIO COMPUTER CO., LTD. shall be held in no way liable for any damages arising out of unintended use.
  • Page 122 Use of this camera in a country or area other than where it was originally purchased runs the risk of being in violation of local radio laws and other laws. Note that CASIO COMPUTER CO., LTD. shall not be held in any way liable for any such violations.
  • Page 123 • The Bluetooth word mark and logos are registered trademarks owned by ® Bluetooth SIG, Inc. and any use of such marks by CASIO COMPUTER CO., LTD. is under license. Other trademarks and trade names are those of their respective owners.
  • Page 124 . Open Source Software This product includes software that is licensed under the license conditions below. OpenVG 1.1 Reference Implementation Copyright (c) 2007 The Khronos Group Inc. Permission is hereby granted, free of charge, to any person obtaining a copy of this software and /or associated documentation files (the "Materials "), to deal in the Materials without restriction, including without limitation the rights to use, copy, modify, merge, publish, distribute, sublicense, and/or sell copies of the Materials,...
  • Page 125 and distribution as defined by Sections 1 through 9 of this document. "Licensor" shall mean the copyright owner or entity authorized by the copyright owner that is granting the License. "Legal Entity" shall mean the union of the acting entity and all other entities that control, are controlled by, or are under common control with that entity.
  • Page 126 "Contributor" shall mean Licensor and any individual or Legal Entity on behalf of whom a Contribution has been received by Licensor and subsequently incorporated within the Work. 2. Grant of Copyright License. Subject to the terms and conditions of this License, each Contributor hereby grants to You a perpetual, worldwide, non-exclusive, no-charge, royalty-free, irrevocable copyright license to reproduce, prepare Derivative Works of, publicly display, publicly perform, sublicense, and distribute the...
  • Page 127 within a display generated by the Derivative Works, if and wherever such third-party notices normally appear. The contents of the NOTICE file are for informational purposes only and do not modify the License. You may add Your own attribution notices within Derivative Works that You distribute, alongside or as an addendum to the NOTICE text from the Work, provided that such additional attribution notices cannot be construed as modifying the License.
  • Page 128 9. Accepting Warranty or Additional Liability. While redistributing the Work or Derivative Works thereof, You may choose to offer, and charge a fee for, acceptance of support, warranty, indemnity, or other liability obligations and/or rights consistent with this License. However, in accepting such obligations, You may act only on Your own behalf and on Your sole responsibility, not on behalf of any other Contributor, and only if You agree to indemnify, defend, and hold each Contributor harmless for any liability...
  • Page 129 See the License for the specific language governing permissions and limitations under the License. Apache License Version 2.0, January 2004 http://www.apache.org/licenses/ TERMS AND CONDITIONS FOR USE, REPRODUCTION, AND DISTRIBUTION 1. Definitions. "License" shall mean the terms and conditions for use, reproduction, and distribution as defined by Sections 1 through 9 of this document.
  • Page 130 to that Work or Derivative Works thereof, that is intentionally submitted to Licensor for inclusion in the Work by the copyright owner or by an individual or Legal Entity authorized to submit on behalf of the copyright owner. For the purposes of this definition, "submitted" means any form of electronic, verbal, or written communication sent to the Licensor or its representatives, including but not limited to communication on electronic mailing lists, source code control systems,...
  • Page 131 attribution notices from the Source form of the Work, excluding those notices that do not pertain to any part of the Derivative Works; and (d) If the Work includes a "NOTICE" text file as part of its distribution, then any Derivative Works that You distribute must include a readable copy of the attribution notices contained within such NOTICE file, excluding those notices that do not pertain to any part of the Derivative Works, in at least one...
  • Page 132 8. Limitation of Liability. In no event and under no legal theory, whether in tort (including negligence), contract, or otherwise, unless required by applicable law (such as deliberate and grossly negligent acts) or agreed to in writing, shall any Contributor be liable to You for damages, including any direct, indirect, special, incidental, or consequential damages of any character arising as a result of this License or out of the use or inability to use the...

  • Page 133: Power Supply

    If problems persist after you perform the above steps or if the battery fails to charge after 5 hours, it could mean that the battery is faulty. Contact your nearest CASIO authorized service center. Appendix...

  • Page 134: Battery Precautions

    Battery Precautions . Precautions during Use • Operation provided by a battery under cold conditions is always less than operation under normal temperatures. This is due to the characteristics of the battery, not the camera. • Charge the battery in an area where the temperature is within the range of 15°C to 35°C (59°F to 95°F).

  • Page 135: Disposing Of The Camera

    • The battery of this camera is built-in and cannot be replaced by you. Contact your retailer or a CASIO authorized service center to have the battery replaced. • Make sure that the camera is turned off before removing the battery.
  • Page 136 . Controller Remove the four screws that secure the back of the controller. Holding the back cover in the circled area, rotate in the direction of the arrow to remove the cover. Rotate the cover on the end of the controller in the direction indicated by the arrow to remove it.
  • Page 137 Hook your fingertip at the location indicated in the illustration and lift the battery up to remove it. . Old Rechargeable Battery Handling Precautions • Insulate the positive and negative terminals with tape, etc. • Do not peel the covering off of the battery. •...

  • Page 138: Using A Memory Card

    Using a Memory Card See page 30 for information about supported memory cards and how to load a memory card. . Using a Memory Card • If a memory card starts to behave abnormally during image playback, you can restore normal operation by reformatting it (page 107). However, it is recommended that you always take along multiple memory cards whenever using the camera far away from the home or office.

  • Page 139: Reset Initial Default Settings

    Reset Initial Default Settings The tables in this section show the initial default settings on menus that appear in the REC mode and PLAY mode when you reset the camera (page 107). • A dash (–) indicates an item whose setting is not reset or an item for which there is no reset setting.

  • Page 140: Wireless Settings

    . Setup Menu Screen Date Style – Info Language – Rotation Camera: Off Sleep 5 min Lock Controller: Off Format – Camera Reset – Sound Version – Vibration Multi-Pairing – Adjust – . Wireless settings Auto Send Auto Send File T Only Settings Resize When...

  • Page 141: When Things Don't Go Right

    Check to make sure that the battery is charged and try turning power on again a number of times. If power still does not turn on, contact your retailer or a CASIO authorized service center. Power will not turn Use a thin object to press the [RESET] buttons (page 8) near off.
  • Page 142 Problem Possible Cause and Recommended Action There is digital Sensitivity may have been increased automatically for a dark noise in images. subject, which increases the chance of digital noise. Use a light or some other means to illuminate the subject. A recorded image 1)Camera power may have been turned off before the save was not saved.
  • Page 143 Problem Possible Cause and Recommended Action File Deletion A file cannot be The file may be protected. A protected image cannot be deleted. deleted. Wireless Connection I can’t establish a 1)The camera cannot connect with a smartphone if they are wireless connection.
  • Page 144 If the same message appears after you turn power back on, contact your retailer or a CASIO authorized service center. There are various The monitor screen shows indicators and other information indicators and about shooting conditions and the image you are recording.

  • Page 145: Display Messages

    Display Messages Access timed out. Appears when a connection could not be established with a Connection smartphone. dropped. This message appears when the camera or controller battery Battery is low. goes dead. Camera connection was A Bluetooth connection between the camera and controller lost.

  • Page 146: Number Of Snapshots/Movie Recording Time

    Number of Snapshots/Movie Recording Time Snapshot Built-in microSD Recording Image Size Approximate Memory Memory Card Mode (Pixels) File Size Recording Recording Capacity Capacity Dome View 3888 3888 4.13 MB 2286 Panorama 7456 1944 2.99 MB 4283 Super Wide 3232 2424 X.XX MB XXXX Angle...
  • Page 147 Maximum Built-in Recording File Size of Image Size / Approximate Data Maximum File Memory Time with 1-minute Pixels (Audio) Rate (Frame Rate) Size Recording microSD Movie Capacity Memory Card XX.X Megabits/ HS120 second XX minutes 1280 X seconds XXX.X MB (XXX frames/ X seconds (No audio)

  • Page 148: Specifications

    Specifications File Format Snapshots: JPEG (Exif Version 2.3; DCF 2.0 standard) Movies: MOV format, H.264/AVC standard, IMA-ADPCM (Stereo) Recording Media Built-in Memory (Image Storage Area: 49.9MB*) microSD/microSDHC/microSDXC * Built-in memory capacity after formatting Recorded Image Sizes Snapshots: 12M (4000 3000), 5M (2560 1920) Movies: Full HD (1920...
  • Page 149 Monitor Screen 3.0-inch TFT color LCD (Super Clear LCD) (Controller) 921,600 dots Capacitive type touch panel External connection Micro USB port (Hi-Speed USB compliance, USB charging/ terminal (Camera) USB powered operation) External connection Micro USB port (USB charging/USB powered operation) terminal (Controller) Microphones (Camera) Stereo Speaker (Camera)
  • Page 150 • Recording Medium: 16GB microSDHC memory card (SanDisk Corporation UHS-I series) In accordance with CIPA (Camera and Imaging Products Association) standards In accordance with CASIO standards One-image scroll approximately every 10 seconds • The above values are based a new battery, starting from a full charge. Repeated charging shortens battery life.
  • Page 151 . USB-AC adaptor (AD-C53U) Input 100 to 240 V AC, 50/60 Hz, 100 mA Output 5.0 V DC, 650 mA Operating Temperature 5 to 35°C (41 to 95°F) Requirements Dimensions 53 (W) 21 (H) 45 (D) mm (2.1" (W) 0.83" (H) 1.8"...
  • Page 152 For more details, contact your customer service representative. Hereby, Casio Europe GmbH, Casio-Platz 1, 22848 Norderstedt, Germany, declares that this Digital Camera Model EX-FR200CA, EX-FR200CT is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.
  • Page 153 EX-FR200CA, EX-FR200CT Trade Name: CASIO Responsible party: Industrial Handheld Division Casio America, Inc. Address: 570 Mt. Pleasant Avenue, Dover, New Jersey 07801, USA Telephone number: 973-361-5400 This device complies with Part 15 of the FCC Rules. Operation is subject to the...
  • Page 154 CASIO COMPUTER CO., LTD. 6-2, Hon-machi 1-chome Shibuya-ku, Tokyo 151-8543, Japan MA1607-A 2016...

Table of Contents
