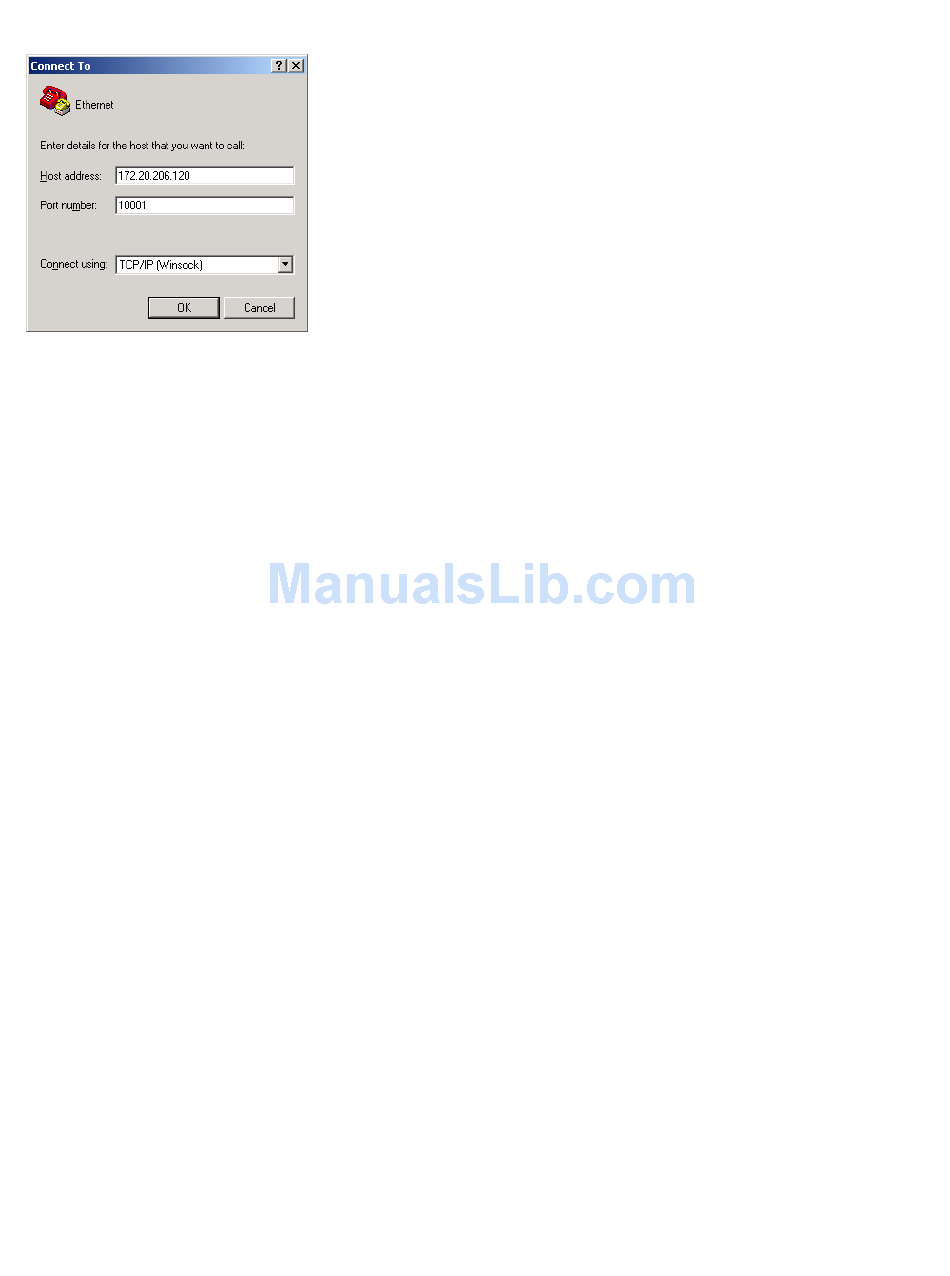

The status message for the TCP/IP connection should show it is connected.
Make sure the status line at the bottom of the Hyperterminal window does not show any AUTO functions. If
there is one, go back and reconfigure the terminal settings and the communication settings.
Change the Emulation from Auto detect to VT100. The status line at the bottom of the Hyperterminal
windows should show VT100 and 9600 8-N-1.
Resize the two HyperTerminal windows so you can see both on your screen. Now you can enter data in one
terminal and see it appear in the other. You are sending characters between the serial port and the Ethernet
port, exactly what the NET485 was designed to do.
10
NET485 Quick Start
