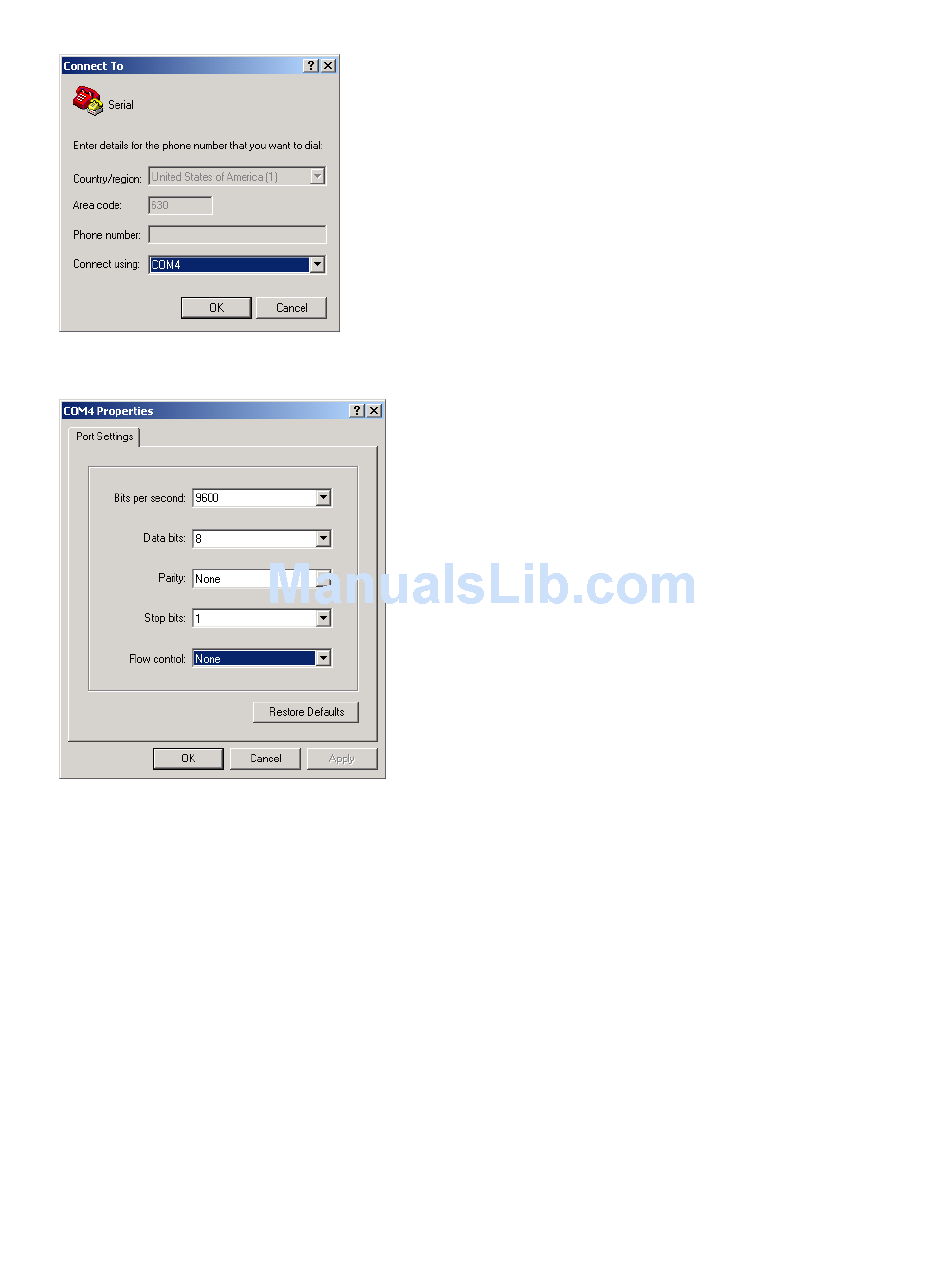

In the COMx Properties dialog box, enter 9600, 8, None, 1, None and click OK. This is the RS422/485
serial port terminal.
The status message for the serial connection should show it is connected.
TCP/IP Session
Start another session of HyperTerminal. Enter a name for the new connection and click OK. Example:
ETHERNET
In the Connect To dialog box, go to the Connect using field and select TCP/IP (Winsock). Enter the IP
address of the NET485 and enter 10001 (default) for the Port number and click OK. This is the Ethernet
terminal.
NET485 Quick Start
9
