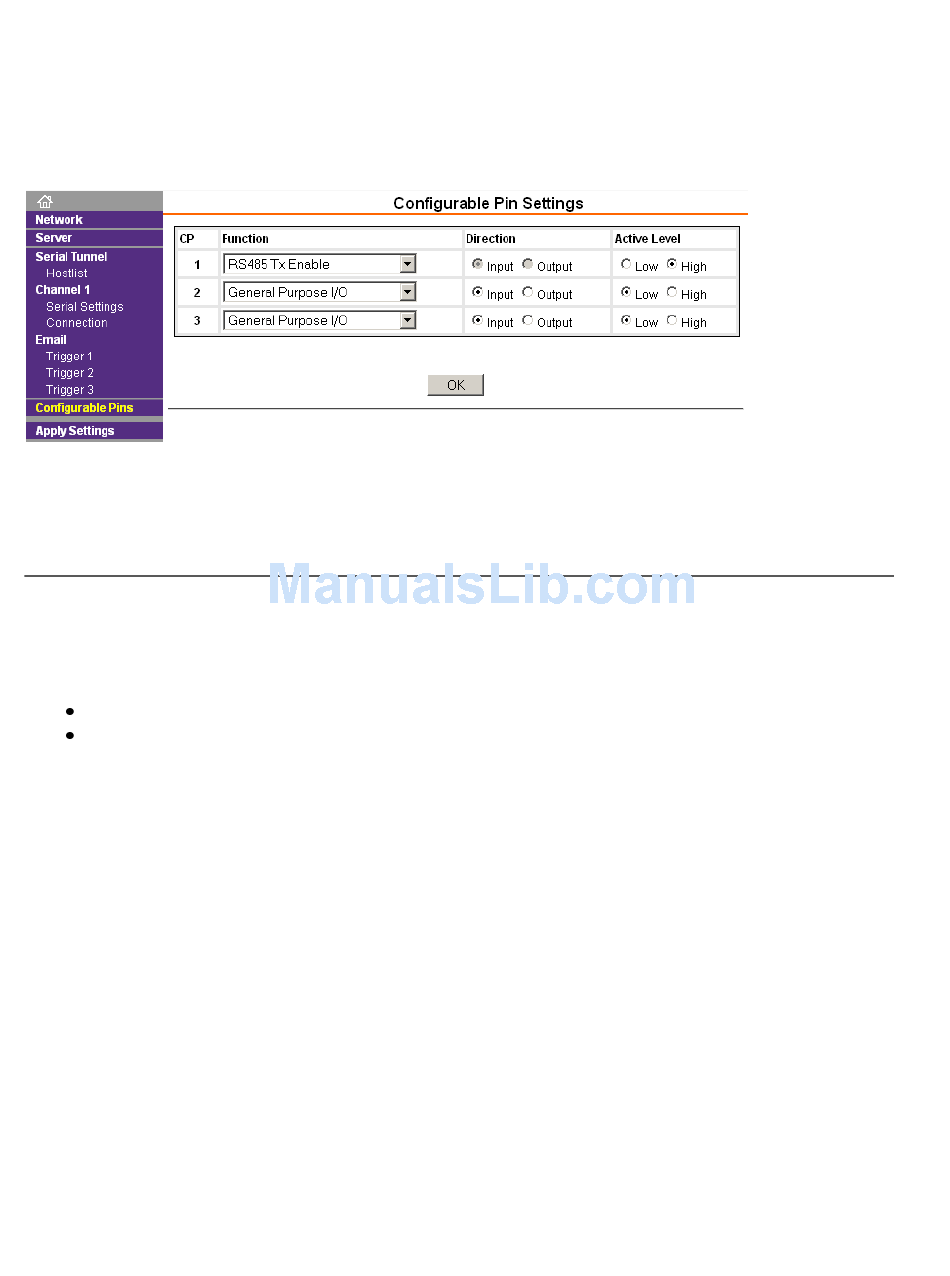

1.3.4 Configurable Pin Settings

There are three configurable hardware pins inside the NET485. Only CP1 is actually connected.
To configure the NET485:
1. On the main menu, click Configurable Pins. The Configurable Pins page opens.
2. Set CP1 to RS485 TxEnable and Active level HIGH.
3. When you are finished, click the OK button.
4. On the main menu, click Apply Settings.

1.4 Quick Test

In order to use the quick test, you must have an RS422 or RS485 port on your PC. You can also use an
RS422/485 to RS232 adapter on your PC.
This quick test is designed to demonstrate the following:
The ability of the unit to move data from the serial port to the ethernet port
The ability of the unit to move data from the ethernet port to the serial port
Use Device Installer to locate the unit on your network. Note the IP address.
Serial Session
Start a session of HyperTerminal or other terminal emulation program. Enter a name for the new connection
and click OK. Example: SERIAL
In the Connect To dialog box, go to the Connect using field and select the Com port (or adapter) that is
connected to the NET485 and click OK.
8 NET485 Quick Start
