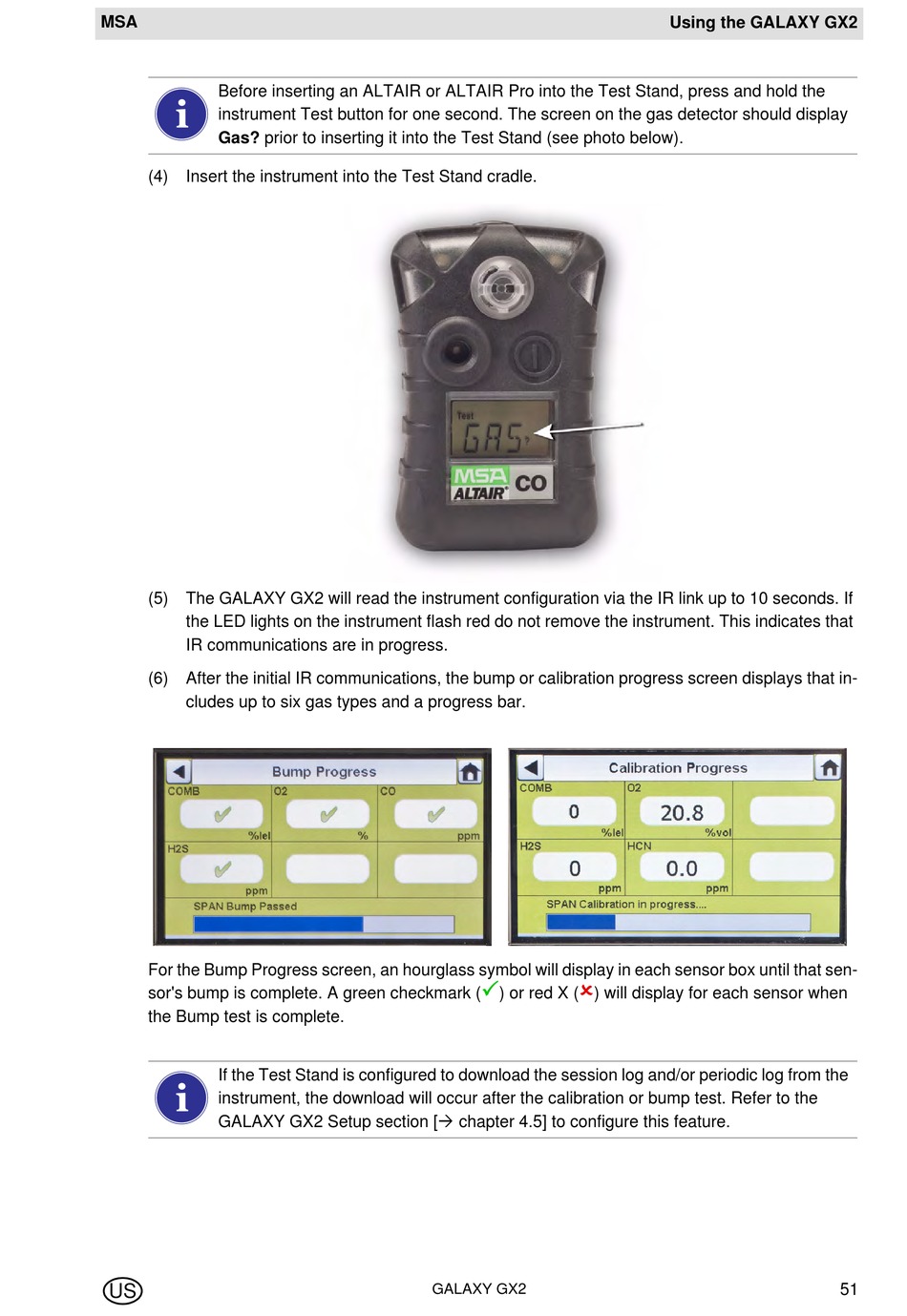

Before inserting an ALTAIR or ALTAIR Pro into the Test Stand, press and hold the

instrument Test button for one second. The screen on the gas detector should display

Gas? prior to inserting it into the Test Stand (see photo below).

(4)

Insert the instrument into the Test Stand cradle.

(5)

The GALAXY GX2 will read the instrument configuration via the IR link up to 10 seconds. If

the LED lights on the instrument flash red do not remove the instrument. This indicates that

IR communications are in progress.

(6)

After the initial IR communications, the bump or calibration progress screen displays that in-

cludes up to six gas types and a progress bar.

For the Bump Progress screen, an hourglass symbol will display in each sensor box until that sen-

sor's bump is complete. A green checkmark (

the Bump test is complete.

If the Test Stand is configured to download the session log and/or periodic log from the

instrument, the download will occur after the calibration or bump test. Refer to the

GALAXY GX2 Setup section [ chapter 4.5] to configure this feature.
