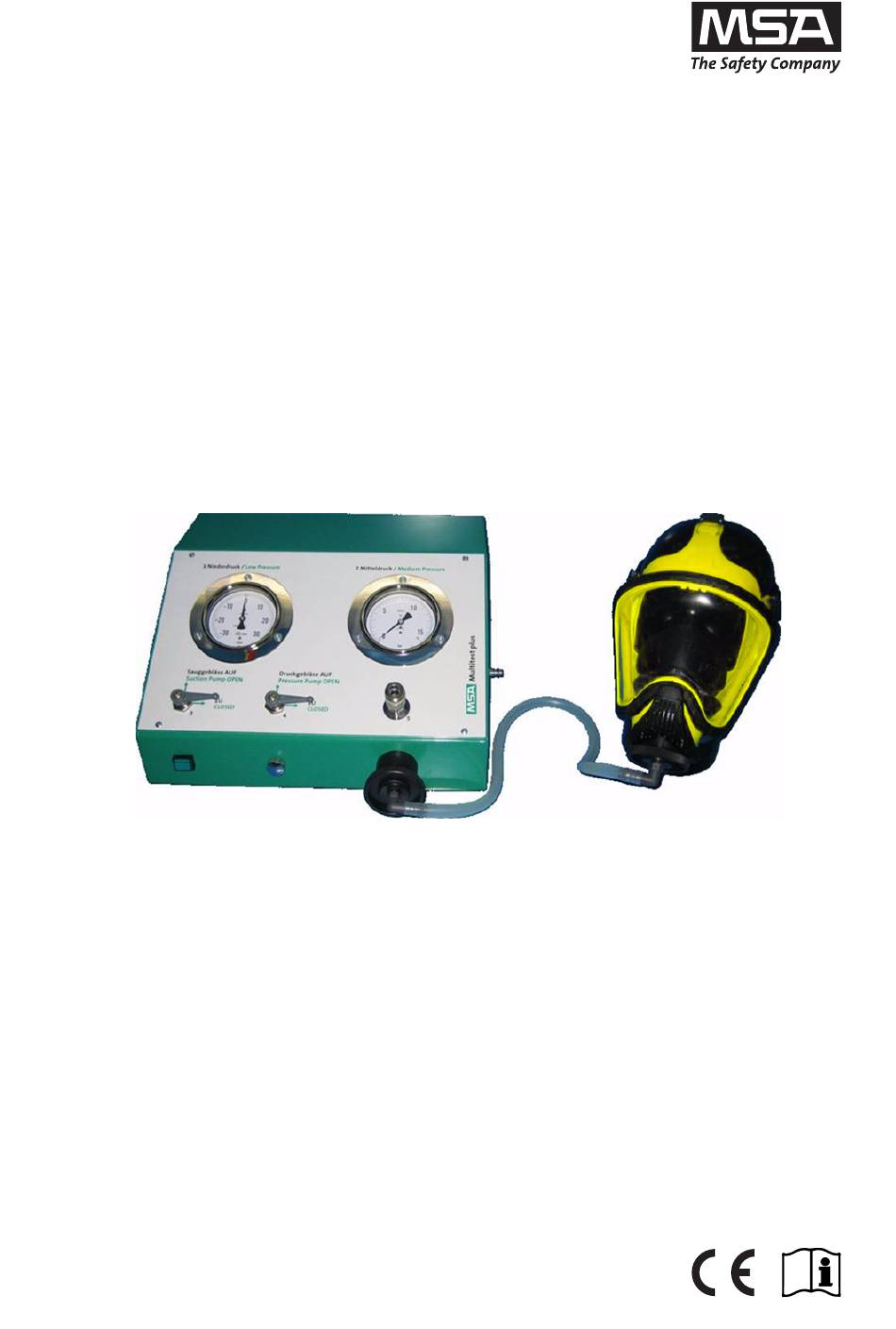

- Page 1 Operating Manual Multitest plus Console and Multitest plus Console 230 V Order No. 10092330/00...
- Page 2 MSA AUER GmbH Thiemannstrasse 1 D-12059 Berlin Germany © MSA AUER GmbH. All rights reserved...
- Page 3 Multitest plus Console is in conformance with the EMC Directive 2004/108/EC. EN 61000-6-2:2005 and EN 61000-6-3:2007 MSA AUER GmbH Berlin, May 2009 Dr. Axel Schubert R&D Instruments Multitest plus Console / Multitest plus Console 230 V...
- Page 4 We further declare that the product complies with the provisions of LVD Di-rective 2006/95/EC, with the following harmonized norms or normative documentation: EN 61010-1:2002-08 MSA AUER GmbH Berlin, May 2009 Dr. Axel Schubert R&D Instruments Multitest plus Console / Multitest plus Console 230 V...
-
Page 5: Table Of Contents
Test Criteria for MSA Respiratory Protection Apparatus ............22 Technical Data ..........................22 Ordering Information ......................... 23 Transition Adapters Mask / Lung Governed Demand Valves ..........23 Transition Adapter for Chemical Protective Suit ..............24 Accessories ........................25 Multitest plus Console / Multitest plus Console 230 V... -
Page 6: Safety Regulations
MSA or authorised persons. Liability Information MSA accepts no liability in cases where the product has been used inappropriately or not as in- tended. The selection and use of the product are the exclusive responsibility of the individual op- erator. -
Page 7: Safety And Precautionary Measures
If it is ascertained that safe operation is no longer possible, the test device must be shut down and secured against unintentional switching on. Error recovery must be performed by the manufactur- er's customer service or by qualified and authorised personnel. Multitest plus Console / Multitest plus Console 230 V... -

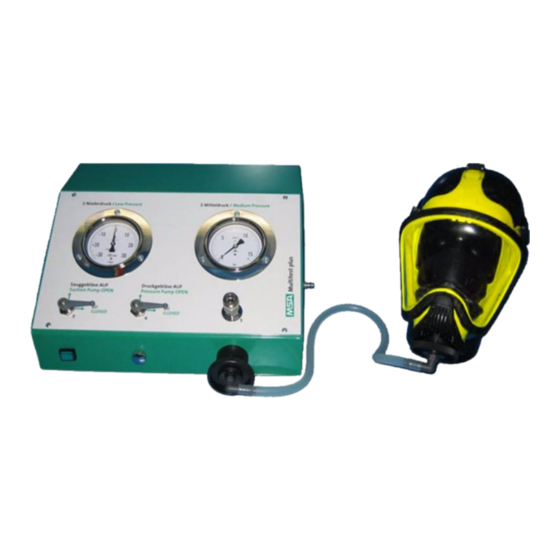

Page 8: Description
Power supply is realised: for test device Multitest plus Console by 1 battery and for test device Multitest plus Console 230 V by 230 V AC To perform the tests a compressed air connection is not required. The compressed air required to inflate the test head can be taken from a compressed air breathing apparatus or a compressed air line. -
Page 9: Operating Elements
Push button valve Standard thread connector for mask with peg Clamp For masks/lung governed demand valve that do not have a standard thread connector, respective adapters are required [ chapter 9] Multitest plus Console / Multitest plus Console 230 V... -
Page 10: Test Head
Briefly activate push button to inflate the head. Observe that the head is not inflated too much. In case it was inflated too much, reduce pressure with pressure relief valve. Disconnect push button valve from medium pressure line. Multitest plus Console / Multitest plus Console 230 V... -
Page 11: Test Head Maintenance
European standards. Attention! The specifications in the operating manual for the devices to be tested apply. There are no differences for testing with Multitest plus Console and Multitest plus Con- sole 230 V. Activation... - Page 12 Attention! Observe the proper polarity of the battery. Insert or replace the battery. Attach cover on battery compartment. Close cover of battery compartment by clockwise rotation with screw driver or coin. Multitest plus Console / Multitest plus Console 230 V...
-
Page 13: Testing Negative Pressure Devices
Set to slightly above required test pressure and then close valve lever. Release button for pump. Slowly adjust pressure to test pressure with pressure relief valve. Measure according to manufacturer instructions. Multitest plus Console / Multitest plus Console 230 V... -
Page 14: Lung Governed Demand Valve - Tightness Test With Medium Pressure
[console]. Open cylinder[s]. Connect lung governed demand valve to test connector. Slowly open valve lever “suction pump”. Push and hold the button for pump. Measure according to manufacturer instructions. Multitest plus Console / Multitest plus Console 230 V... -
Page 15: Medium Pressure - Tightness Test
Set to slightly above required test pressure and then close valve lever. Release button for pump. Slowly adjust pressure to test pressure with pressure re- lief valve. Measure according to manufacturer instructions. Multitest plus Console / Multitest plus Console 230 V... -
Page 16: Testing Positive Pressure Devices
Set to slightly above required test pressure and then close valve lever. Release button for pump. Slowly adjust pressure to test pressure with pressure relief valve. Measure according to manufacturer instructions. Multitest plus Console / Multitest plus Console 230 V... -
Page 17: Lung Governed Demand Valve - Tightness Test With Medium Pressure
Set to slightly above required test pressure and then close valve lever quickly. (10) Release button for pump. (11) Slowly adjust pressure to test pressure with pressure re- lief valve. (12) Measure according to manufacturer instructions. Multitest plus Console / Multitest plus Console 230 V... -
Page 18: Lung Governed Demand Valve - Closing Pressure
After 15 s close the pressure relief valve. (10) Measure according to manufacturer instructions. Medium Pressure – Tightness Test Attention! Absolutely observe sequence! Otherwise your test result can be incorrect or you may damage the test device. Multitest plus Console / Multitest plus Console 230 V... -
Page 19: Mask - Tightness Test
Fit mask onto the test head. Connect test line to test device and mask [connector with peg into mask]. Open valve lever “pressure pump”. Push and hold the button for pump. Measure according to manufacturer instructions. Multitest plus Console / Multitest plus Console 230 V... -
Page 20: Testing Chemical Protective Suit
Set the stabilising pressure with the push button valve. Stabilise according to manufacturer instructions. Measure according to manufacturer instructions. Multitest plus Console / Multitest plus Console 230 V... -
Page 21: Chemical Protective Suit - Tightness Test
Set to slightly above required test pressure and then close valve lever. Release button for pump. Slowly adjust pressure to test pressure with pressure re- lief valve. Measure according to manufacturer instructions. Multitest plus Console / Multitest plus Console 230 V... -
Page 22: Test Criteria For Msa Respiratory Protection Apparatus
Pressure gauge measuring range - Low pressure ± 30 mbar - Medium pressure 0 – 16 bar Pressure gauge precision class - Low pressure 1.6 % - Medium pressure 1.0 % Multitest plus Console / Multitest plus Console 230 V... -
Page 23: Ordering Information
Transition Adapter D4080891 D5175536 MSA AUER LA96-AS Transition Adapter 10031901 10089532 MSA AUER AutoMaXX Transition Adapter D5175512 D5135537 Dräger Steck Transition Adapter M45 x 3 D4074833 D5175538 Transition Adapter ESA 10037962 Multitest plus Console / Multitest plus Console 230 V... -
Page 24: Transition Adapter For Chemical Protective Suit
Transition Adapter for Chemical Protective Suit Description Part No. Transition Adapter for Chemical Protective D5175521 Suit – Dräger Transition Adapter for Chemical Protective D5175522 Suit – Koch Transition Adapter for Chemical Protective D5175523 Suit - Trelleborg Multitest plus Console / Multitest plus Console 230 V... -
Page 25: Accessories
MSA AUER sealing cap to close valves on D5135047 Auer chemical protective suits and 3S nega- tive pressure masks Valve test device for MSA AUER chemical D5175533 protective suits Barcode Scanner 10025433 Multitest plus Console / Multitest plus Console 230 V... - Page 26 For testing pressure of compressed air cylin- ders 200 bar and 300 bar. Silicone spray 10017461 Disinfectant on request For disinfecting instruments, masks and others. Ultrasonic Washing Machine D5175709 for 9 masks Multitest plus Console / Multitest plus Console 230 V...
- Page 27 MSA AUER Ordering Information Multitest plus Console / Multitest plus Console 230 V...
- Page 28 MSA in Europe www.msa-europe.com & www.msa-gasdetection.com Northern Europe Southern Europe Eastern Europe Central Europe Netherlands Italy Poland Germany MSA Nederland MSA Italiana MSA Safety Poland MSA AUER Kernweg 20 Via Po 13/17 ul. Wschodnia 5A Thiemannstrasse 1 1627 LH Hoorn...
