Operating & Service Manual
90130-IM
07/22/2011
Tube O.D.
in.
mm
1/2
12.7
GT-500-1270
5/8
15.8
GT-625-1588
3/4
19.0
GT-750-1905
3/4
19.0
GT-750-1905-1SP
7/8
22.2
GT-875-2223
1
25.4
GT-1000-2540
1
25.4
GT-1000-2540-1SP
For additional product information visit our website at http://www.apextoolgroup.com
Inch
Model No.
Order No.
5526083
5525886
5525756
5526137
5525587
5525706
5526138
Airetool
Grooving / Serrating Tool
Metric
Tube O.D.
Model No.
in.
mm
1/2
12.7
GT-500-1270M
5/8
15.8
GT-625-1588M
3/4
19.0
GT-750-1905M
3/4
19.0
GT-750-1905M-1SP
7/8
22.2
GT-875-2223M
1
25.4
GT-1000-2540M
1
25.4
GT-1000-2540M-1SP
®
GT Series
Order No.
5526115
5526116
5526117
5526164
5526118
5526119
5526165
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for MSA Airetool GT Series
Summary of Contents for MSA Airetool GT Series

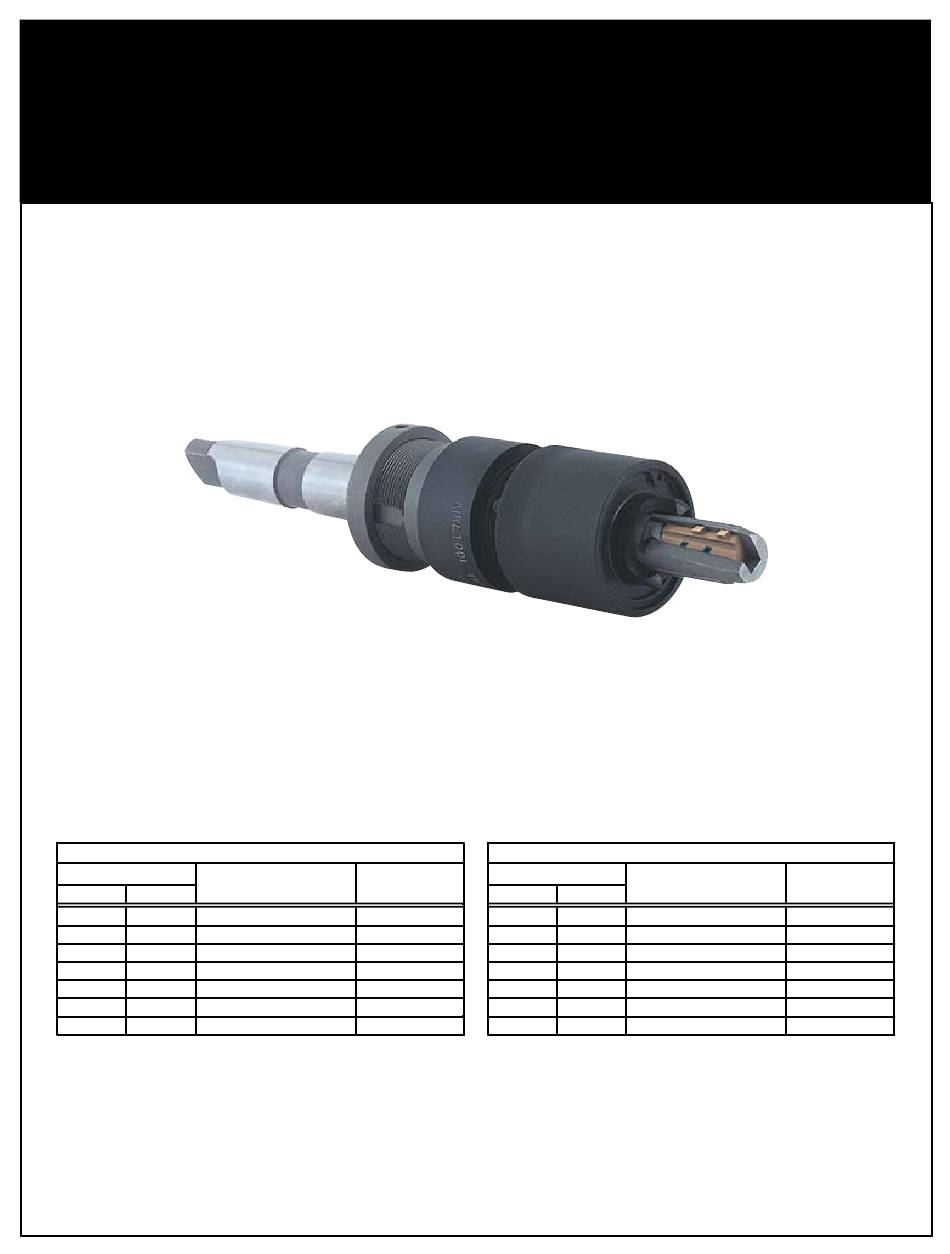

- Page 1 Airetool Operating & Service Manual ® 90130-IM 07/22/2011 GT Series Grooving / Serrating Tool Inch Metric Tube O.D. Tube O.D. Model No. Order No. Model No. Order No. 12.7 GT-500-1270 5526083 12.7 GT-500-1270M 5526115 15.8 GT-625-1588 5525886 15.8 GT-625-1588M 5526116 19.0 GT-750-1905 5525756...
- Page 2 Airetool 90130-IM ® 07/22/2011 Description and General Safety Recommendations Language Version: GENERAL SAFETY RECOMMENDATIONS: This Parts Manual is the “Original Instructions” FOR YOUR SAFETY AND THE SAFETY OF intended for all persons who will use or repair this OTHERS, READ UNDERSTAND equipment.
-
Page 3: General Safety Recommendations
Airetool 90130-IM ® 07/22/2011 General Safety Recommendations resonant structures can substantially contribute to and it may be necessary for the employer to take steps to increase the noise level in the area. For additional prevent further occurrences. These steps might include, information on hearing protection, refer to Federal but are not limited to, repositioning the work piece or OSHA Regulations, 29 Code of Federal Regulations,... - Page 4 Airetool 90130-IM ® 07/22/2011 GT Series Grooving/Serrating Tool Inch Models “A” GT 500 1270 (5526083) GT 625 1588 (5525886) 1 2 3 1 2 3 See Service Notes Page 4...
- Page 5 Airetool 90130-IM ® 07/22/2011 GT Series Grooving/Serrating Tool Illustration "A" Number Description Table "A" GTxxxx Mandrel 8009800 10-32 x 3/16 Set Screw 2902035 GT 5010 Stop Nut 2902034 GT 5009 Stop Sleeve 2902037 GT 5012 Spring Table "A" GTxxxx Body 8010452 5-40 x 1/4 Screw 2902036...
- Page 6 Airetool 90130-IM ® 07/22/2011 GT Series Grooving/Serrating Tool Metric Models “B” GT 500 1270M (5526115) GT 625 1588M (5526116) 1 2 3 1 2 3 See Service Notes Page 6...
- Page 7 Airetool 90130-IM ® 07/22/2011 GT Series Grooving/Serrating Tool Illustration "B" Number Description Table "B" GTxxxx Mandrel 8009800 10-32 x 3/16 Set Screw 2902035 GT 5010 Stop Nut 2902034 GT 5009 Stop Sleeve 2902037 GT 5012 Spring Table "B" GTxxxx Body 8010452 5-40 x 1/4 Screw 2902036...
- Page 8 Airetool 90130-IM ® 07/22/2011 GT Series Grooving/Serrating Tool Inch Models “C” GT 750 1905 (5525756) GT 750 1905 1SP (5526137) GT 875 2223 (5525587) GT 1000 2540 (5525706) GT 1000 2540 1SP (5526138) 1 2 3 1 2 3 See Service Notes Page 8...
- Page 9 Airetool 90130-IM ® 07/22/2011 GT Series Grooving/Serrating Tool Illustration "C" Number Description Table "C" GTxxxx Mandrel 8000800 10-32 x 1/4 Set Screw 2900691 GT 7510 Stop Nut 2900690 GT 7509 Stop Sleeve 2900693 GT 7512 Spring Table "C" GTxxxx Body 8010026 6-32 x 1/4 Screw 2900692...
- Page 10 Airetool 90130-IM ® 07/22/2011 GT Series Grooving/Serrating Tool Metric Models “D” GT 750 1905M (5526117) GT 750 1905M 1SP (5526164) GT 875 2223M (5526118) GT 1000 2540M (5526119) GT 1000 2540M 1SP (5526165) 1 2 3 1 2 3 See Service Notes Page 10...
- Page 11 Airetool 90130-IM ® 07/22/2011 GT Series Grooving/Serrating Tool Illustration "D" Number Description Table "D" GTxxxx Mandrel 8000800 10-32 x 1/4 Set Screw 2900691 GT 7510 Stop Nut 2900690 GT 7509 Stop Sleeve 2900693 GT 7512 Spring Table "D" GTxxxx Body 8010026 6-32 x 1/4 Screw 2900692...
-
Page 12: Service Notes
Airetool 90130-IM ® 07/22/2011 Service Notes Groove Position Adjustment Groove Position Adjustment The tool is adjustable for groove location at 1/2” (12.7mm) The depth from the face of the tube sheet to the second to 1-1/4” (31.75mm) from the face of the tube sheet to the groove is adjustable from 1/2”... -
Page 16: Sales & Service Centers
Sales & Service Centers Note: All locations may not service all products. Please contact the nearest Sales & Service Center for the appropriate facility to handle your service requirements. Dallas, TX Detroit, MI Houston, TX Lexington, SC Apex Tool Group Apex Tool Group Apex Tool Group Apex Tool Group...
