Fimco LG-1500 Owner's Manual

Owner's Manual

General Information

Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your
lawn & garden trailer sprayer. Please read it carefully, as it
furnishes information which will help you achieve years of
trouble-free operation.
Warranty/Parts/Service
Products are warranted for one year from date of purchase
against manufacturer or workmanship defects.
Commercial users have a 90 day warranty.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Whenever you need parts or repair service, contact your
distributor/dealer first. For warranty work, always take your
original sales slip, or other evidence of purchase date, to your
distributor/dealer.

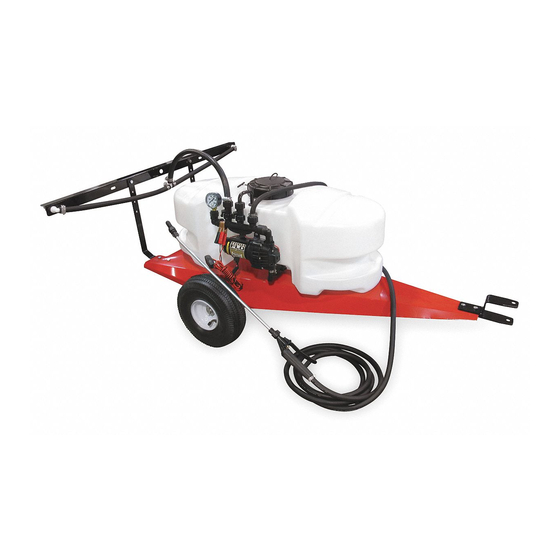

Model: LG-1500 (5301140)
(15 Gallon Lawn & Garden Trailer Sprayer)

Technical Specifications

• 15 Gal. Corrosion-Resistant Polyethylene Tank
• 12 Volt Diaphragm Pump, 2.1 g.p.m. - 60 p.s.i.
• Low Profile Trailer & Tank
• 4.10/3.50 x 4 Pneumatic Tires
• Pressure Gauge
• Adjustable Pressure
• 2-Nozzle Boom Assembly, 80" Coverage
Assembly
Your sprayer has been partially assembled at the factory. Follow
the instructions below to complete the assembly of this unit.
(Refer to the exploded view drawing later in this manual)
1. Bolt the hitch brackets, both formed and flat, to the trailer
frame.
2. Slide the axle through the frame holes, centering it as best as
possible.
3. Slide a wheel spacer and a wheel (valve stem out) onto each
end of the axle, then use a cotter pin to secure the wheels in
place.
4. Bolt the boom brackets to the back of the frame.
5. Bolt the boom assembly to the boom brackets with the tips of
the boom facing rearward. The tips need to be approximately
18" above the spraying surface. Secure in place with (2) bolts
and nuts provided.
6. Thread the pressure gauge into the end of the manifold
assembly. Use a good grade of thread sealant, to insure no
leaks.
7. Remove the drain plug and handgun clips from the parts bag
and attach them to the tank, as shown.
8. Attach the 'loose' boom feeder hose to the center hose barb
on the manifold assembly and to the nylon feeder "tee" on the
boom. Secure in place with 1/2" hose clamps.
9. Connect the electrical hook-up to the end of your pump and
clip the clips to a fully charged battery. The red wire must be
connected to the positive (+), and the black wire should be
connected to the negative (-).
*** IMPORTANT REMINDER ***
A
This unit comes with an On/Off valve, located near
the inlet of the tank, towards the underside. (See Detail A)
You must make sure the valve is in the
"open" position before using your unit.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
Form No. 1309 [5004803
Inlet from Tank
"ON/OFF" Valve
Detail A
(03/10)] Printed in the U.S.A.
