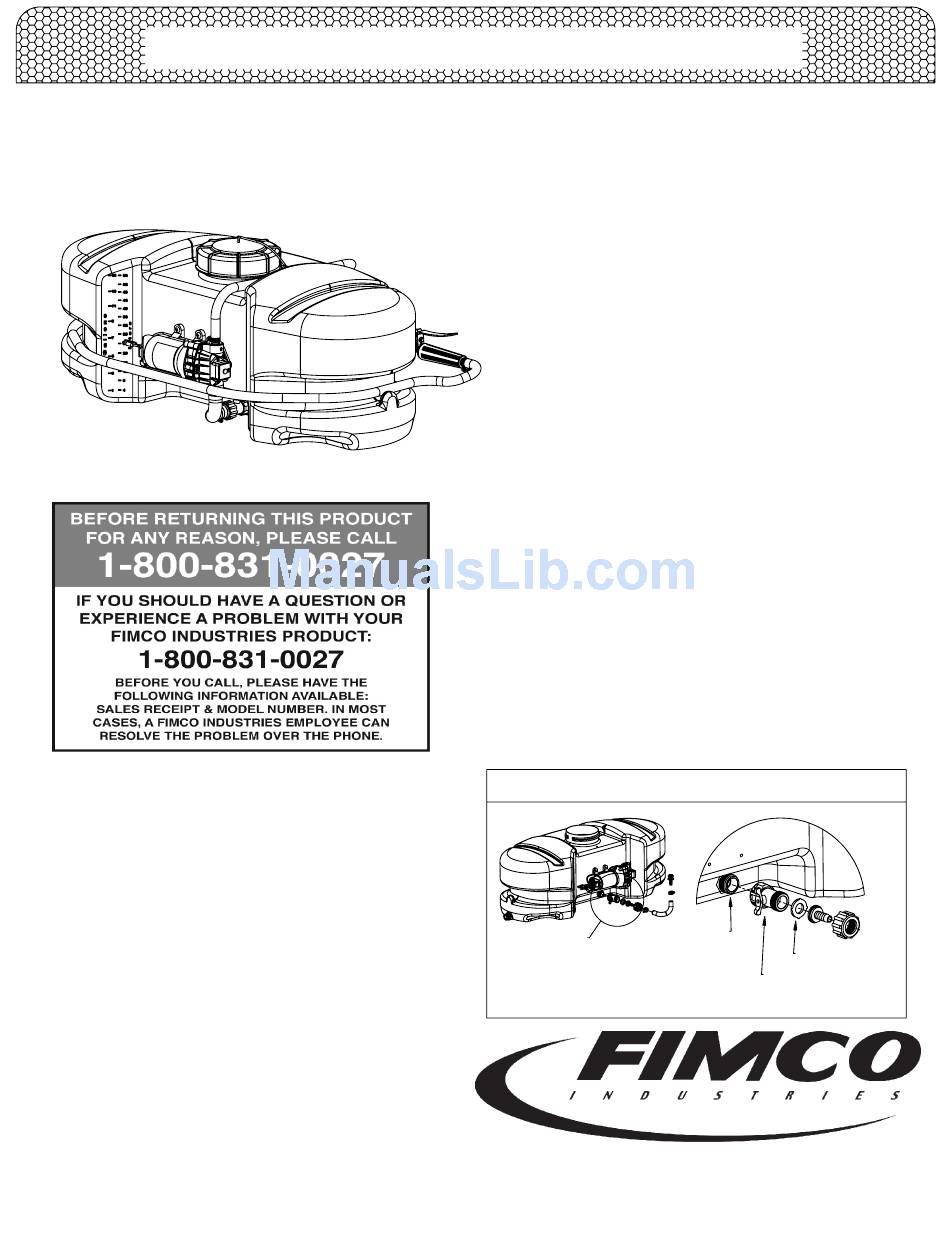

Owner's Manual
Model: LG-13-P
(5300393)
General Information
Thank you for purchasing this product. The purpose of this
manual is to assist you in operating and maintaining your lawn
& garden spot sprayer. Please read it carefully, as it furnishes
information which will help you achieve years of trouble-free
operation.
Warranty/Parts/Service
For home usage, products are warranted for one year from date
of purchase against manufacturer or workmanship defects.
Commercial users have a 90 day warranty.
Your authorized dealer is the best source of replacement parts
and service. To obtain prompt, efficient service, always
remember to give the following information...
- Correct Part Description and/or part number.
- Model number/Serial number of your sprayer.
Part descriptions and part numbers can be obtained from the
illustrated parts list section(s) of this manual.
Whenever you need parts or repair service, contact your
distributor/dealer first. For warranty work, always take your
original sales slip, or other evidence of purchase date, to your
distributor/dealer.

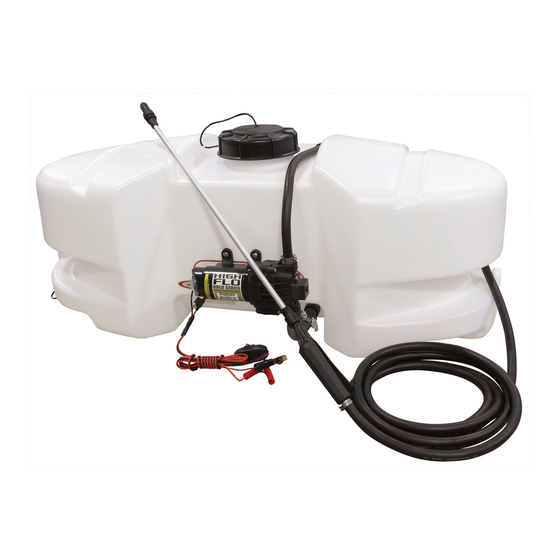

(15 or 25 Gallon Lawn & Garden Spot Sprayer)
Model: LG-29-P
(5300632)
Technical Specifications
•
15/25 Gal. Corrosion-Resistant Polyethylene Tank
•
12 Volt Diaphragm Pump / 2.1 g.p.m. / 60 p.s.i.
•
15 Ft. Handgun Hose
•
15 Ft. max. vertical throw, 30 Ft. max. horizontal throw
Assembly
Your sprayer has been mostly assembled at the factory. One
requirement will be for you to hook up your battery leads to a fully
charged 12 Volt battery. The red wire must be connected to the
"hot" lead, and the black wire should be connected to the ground.
Remove the drain plug assembly and handgun clips from the
parts bag and place them onto the tank as shown in the exploded
view drawing.
CAUTION: Always check the vehicle load rating before using
this sprayer. Do not exceed the recommended rating.
*** IMPORTANT REMINDER ***
Inlet from Tank
A
This unit comes with an On/Off (shut-off)
valve located at the inlet location of the
tank, towards the underside. (See Detail A).
You must make sure the valve is in the
"open" position before using your unit.
www.fimcoindustries.com
1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049
Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440
Form No. 1303
[5004798
Detail A
Filter/Screen
"ON/OFF" Valve
(12/13)]
Printed in the U.S.A.
Advertisement
Table of Contents
Related Manuals for Fimco LG-13-P
Summary of Contents for Fimco LG-13-P
-
Page 1: Technical Specifications
Whenever you need parts or repair service, contact your 1000 FIMCO Lane, P.O. Box 1700, North Sioux City, SD 57049 distributor/dealer first. For warranty work, always take your Toll Free Phone: 800-831-0027 : Toll Free Fax: 800-494-0440 original sales slip, or other evidence of purchase date, to your Form No. - Page 2 Pump Model: 5275703 Available Replacement Parts Item Part Description Number 5157205 7.5 Amp 'Mini Blade' Fuse 5168832 Port Kit Fitting, 1/2" MNPT 5168833 Port Kit Fitting, 1/2" Hose Barb 5168836 Port Kit Fitting, 3/8" Hose Barb 5168837 Upper Housing Assembly 5168839 Plunger Kit 5157202...
- Page 3 Exploded View/Parts List: LG-13-P (5300393) & LG-29-P (5300632) Item Part LG-13-P/Qty LG-29-P/Qty Description Number 5020524 Hose, 3/8"-1 Brd. x 15 Ft. 5051122 5/8" Black Nylon Loom Cable Clamp 5051144 Hose Clamp, 3/8" 5058188 Tank Lid w/Lanyard 5100452 Siphon Tube 5117167 #10-24 x 5/8"...
-
Page 4: After Spraying
Refill the tank about half full with plain water and use FIMCO Tank Neutralizer and Cleaner, and repeat cleaning instructions above. Flush the entire sprayer with the neutralizing/cleaning agent, then flush out one more time with plain water. Follow the chemical manufacturer's disposal instructions of all wash or rinsing water.
