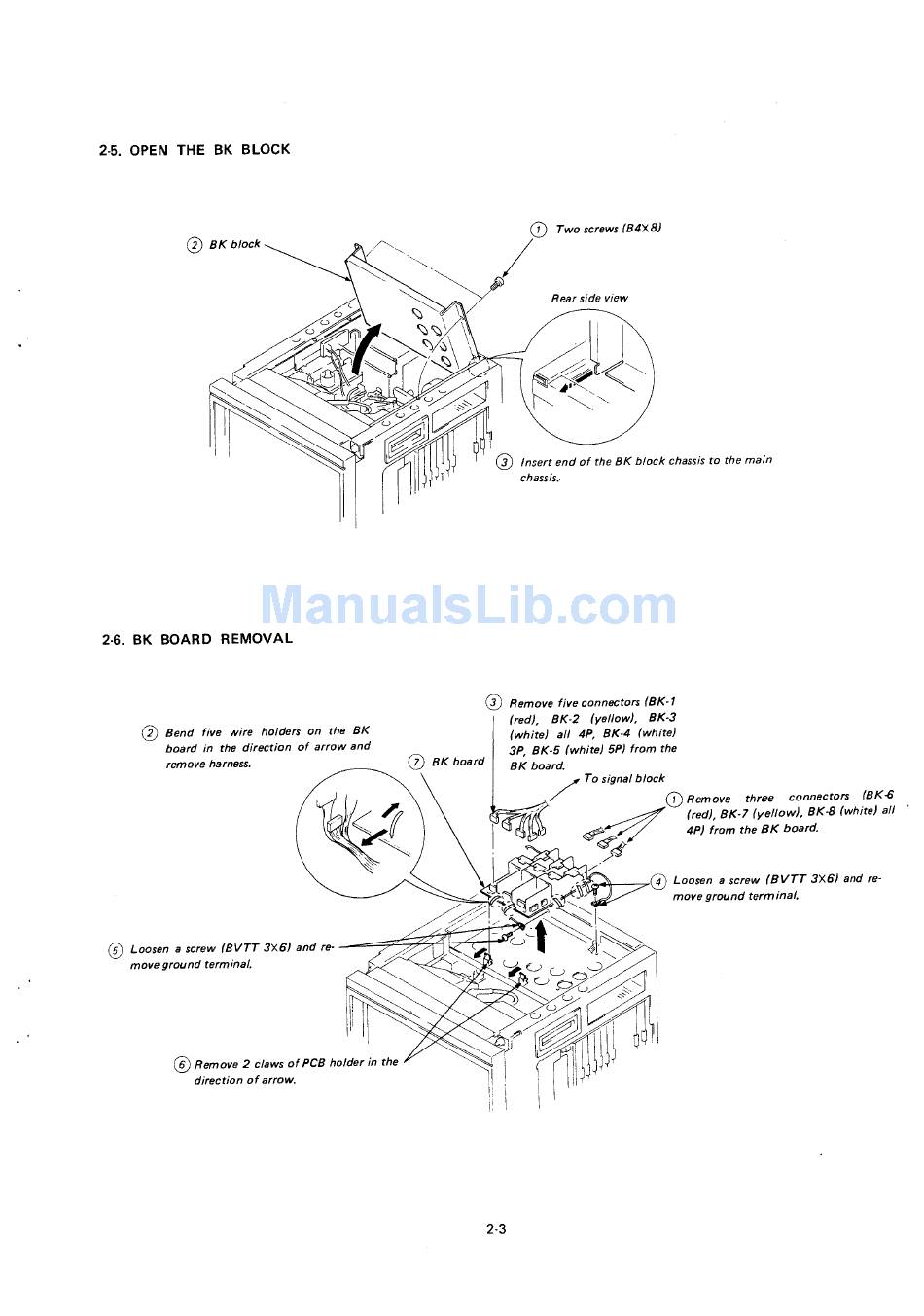

2-5.
OPEN THE BK BLOCK
0
BK block
2-6.
BK BOARD REMOVAL
0
Bend five wire holders on the BK
board in the direction
of arrow and
remove harness.
0
BK board
Two screws (B4XB)
Rear side view
0
Remove five connectors (BK-1
(red),
BK-2
(yellow),
BK-3
(white)
all 4P, BK-4 (white)
3P, BK-5 (white) 5P) from the
BK
board.
/
To signal block
(D
Remove
three
connectors
(BK-6
~
(red), BK-7 (yellow),
BK-8 (white) all
~//
4P) from the BK board.
/4
"''°'--~@
Loosen a screw
(BVTT
3X6) and re-
move ground terminal,
(D
Loosen
a
screw (BVTT 3X6) and re-
--==:;;Z~~~t:z:1:;;;~
move ground terminal.
@
Remove 2 claws of PCB holder in the
direction of arrow.
2-3
