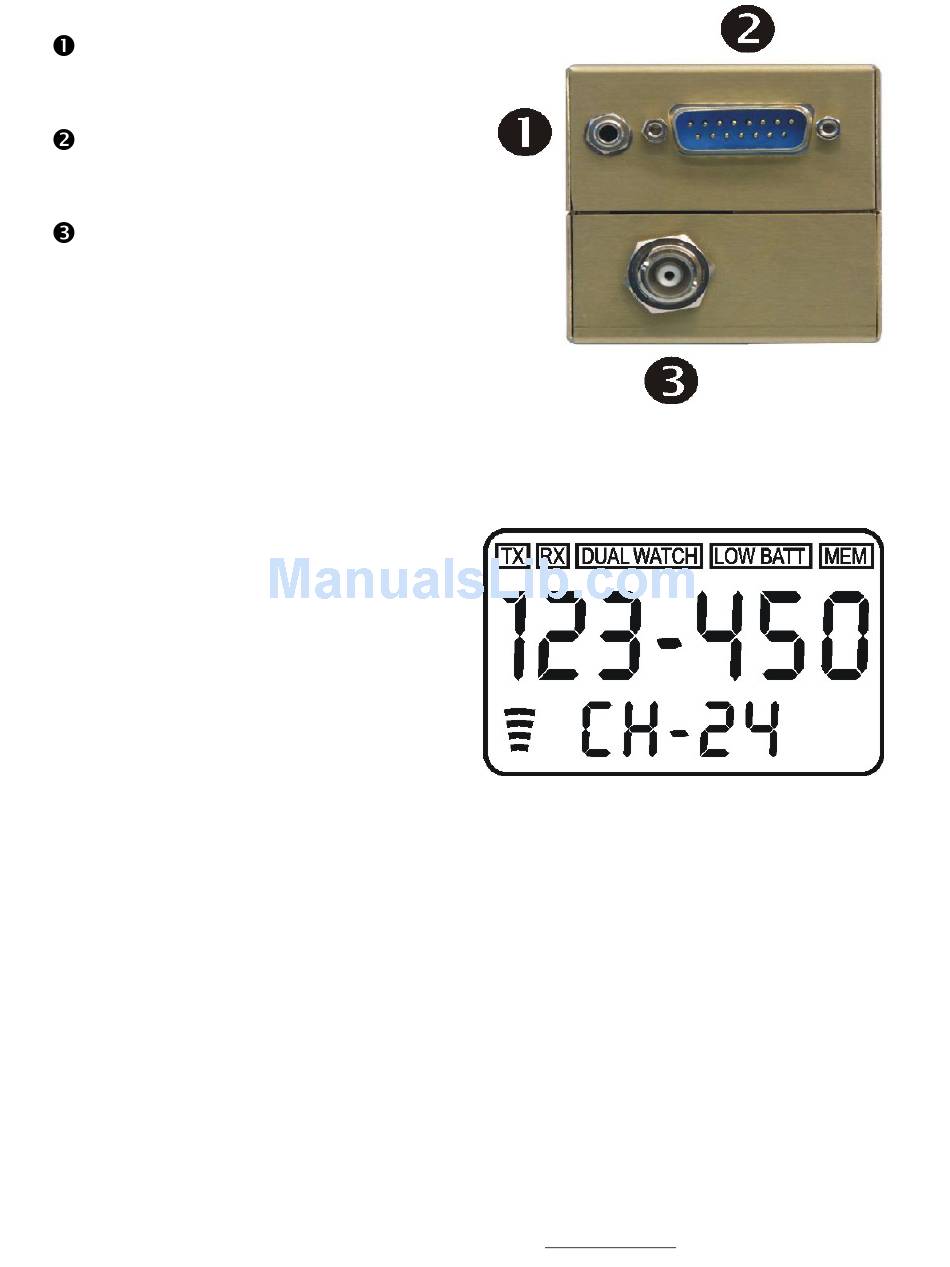

The rear of the radio has
RS232 Port for programming and
additional external control over the radio
DB15 pin plug for connection of the
wiring harness
BNC fitting for the aerial connection

LCD Display

TX Transmit Icon, blinks when
Transmission is over 30 seconds, Icon
resets after 45 seconds (stuck Mike) or
PTT is released
RX Receive Icon, lights up when a
signal is being received or squelch is
opened
DUAL WATCH Lights up when the dual
watch button is depressed and activated
LOW BATT Blinks when power goes
above or below the pre set limits.
MEM Lights up when in memory mode
Top Line Displays the active channel in
the larger text
Bottom line Displays the standby
channel, memory number and other
status text.
Bar Graph Received volume and
squelch levels as well as intercom
volume and squelch levels.
Release 1.2 © XCOM Avionics 2004 www.xcom760.com Page 8
