Contents

The XCOM 760 is packed within a cardboard box for protection; the transceiver
itself is wrapped in an anti-static bag for electrical protection. The boxed contents
are....
• One XCOM 760 VHF transceiver
• User manual
• DB15 solder plug and plastic back shell
• Optional: If you purchased the optional wiring harness it will be included in
this package with installation instructions.

Users Manual

Please read and understand this manual BEFORE attempting to install and operate
this transceiver, the XCOM VHF 760 has many advanced features which if not
properly understood could cause improper operation of this product.

Warranty Card

Included in the rear of this manual is the warranty card, please fill out your details
and return to the manufacturers address provided, please don't return the card to
your dealer. Alternatively you may fill in the warranty details online through the
website http://www.xcom760.com

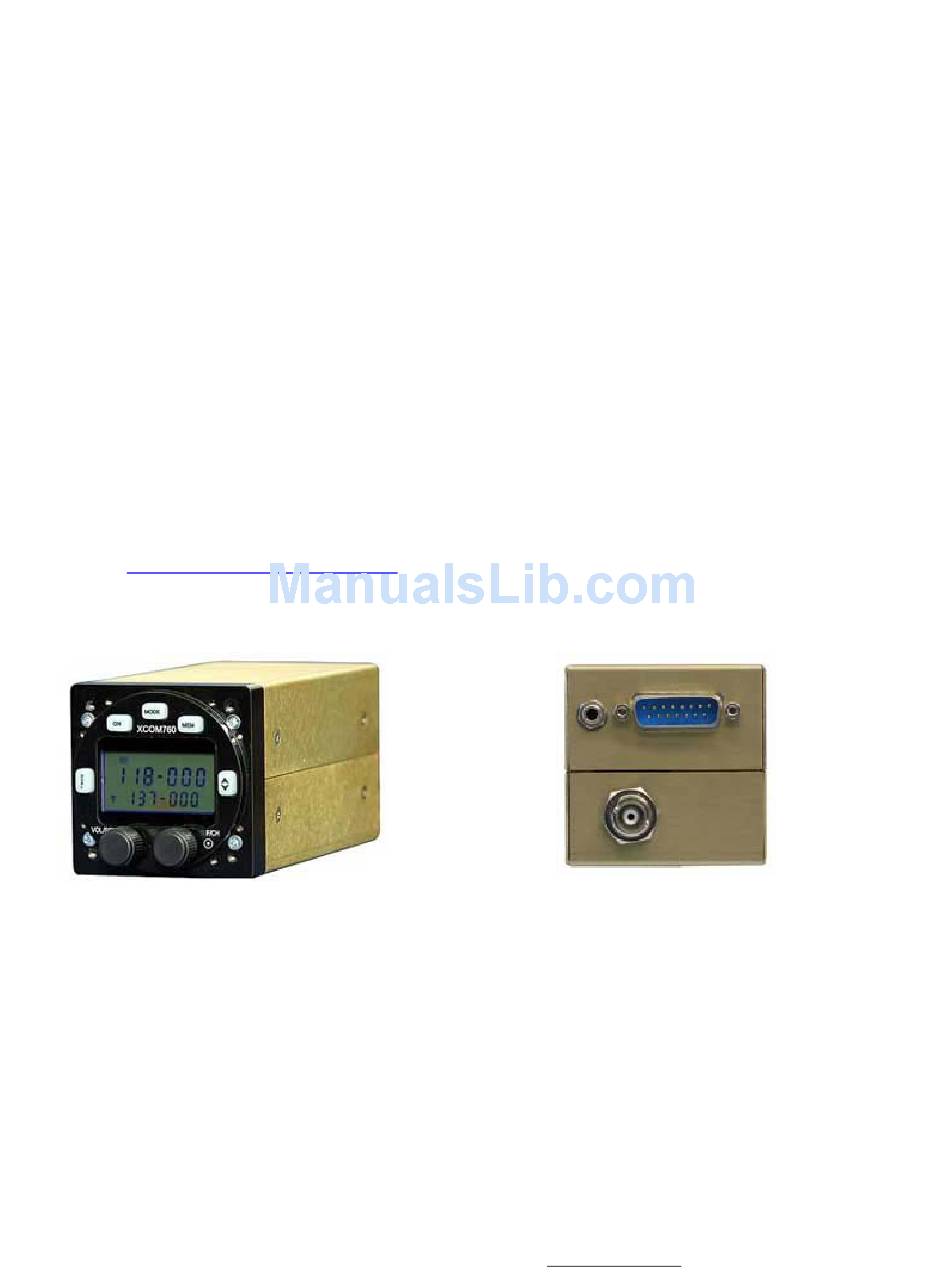

Description

The XCOM VHF 760 Transceiver has a 2 ¼ inch (57mm) face for fitting in a normal
aircraft small instrument hole. The case is 129mm long, 61mm wide and 61mm
high. The unit is secured to the aircraft dashboard by 4 screws and is self
supporting and requires no additional supports, trays or brackets.
Release 1.2
- select warranty registration
© XCOM Avionics 2004 www.xcom760.com Page 6
