Setup Options

Introduction

The setup screens are not programmable during normal use, as these options effect
how the transceiver will display screens, or operate in general. The following
procedure relates to programming these options and care should be taken. DO NOT
adjust the Microphone gain control unless you are confident to, read the
instructions and if in doubt have an avionics technician do the adjustment for you.
The setup parameters can also be changed via the RS-232 port using the windows
based SETUP utility, which can be downloaded at xcom760.com

Operation

The access the setup screen, press and hold at startup the following buttons:

DUAL - MODE - ON

The setup screen will appear; first it will display the current version number for 5
seconds, e.g.

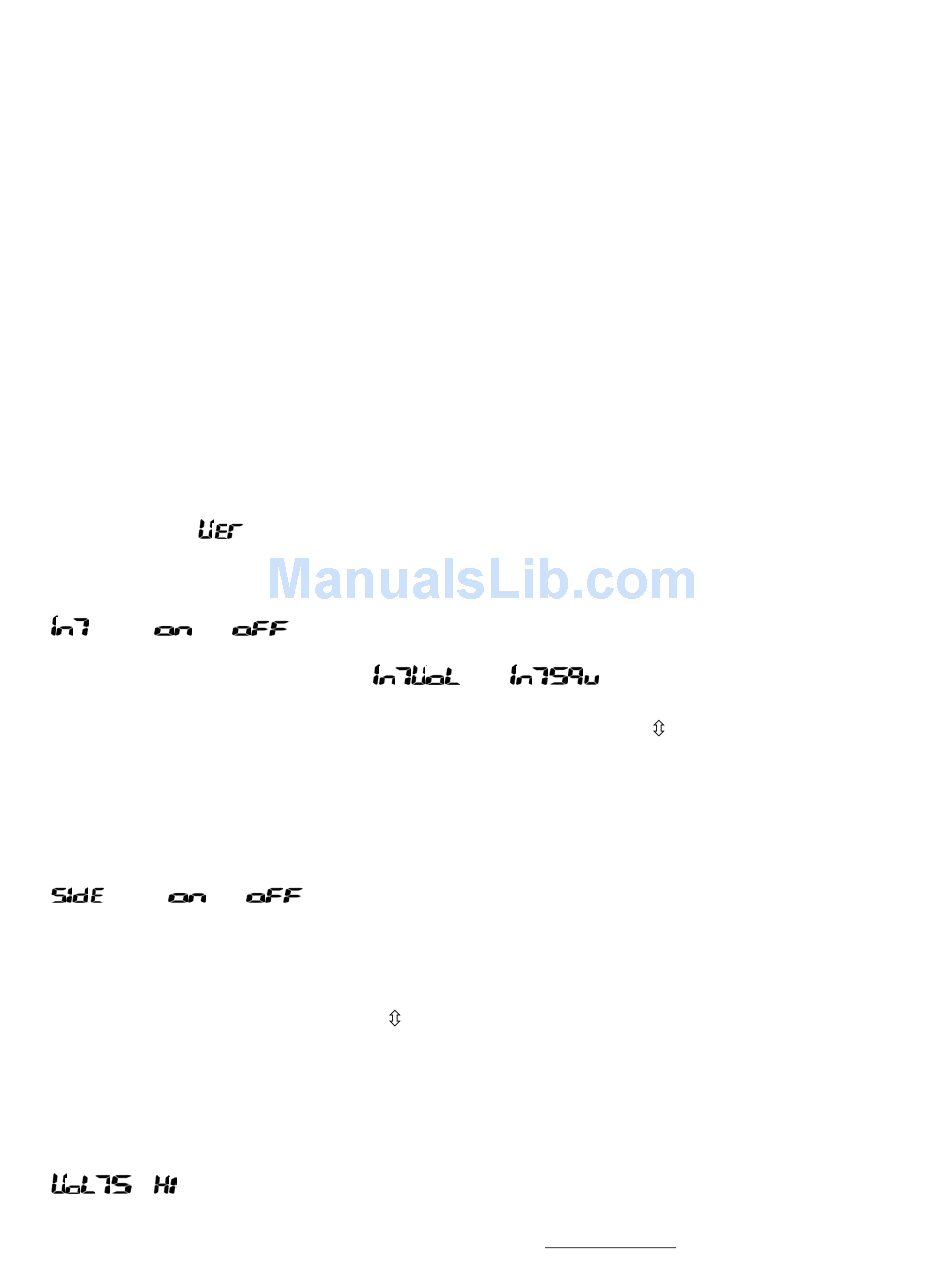

The screen will then display the following setup options:
or
option
or
option
-
Release 1.2
1-01
This selects the intercom to be on, or off (default is ON). In
the ON mode, the intercom is enabled in the transceiver
and the
To set on or off simply rotate the F/CH control. Press the
F/CH to go on to the next option or
screen, the new values will be stored.
Note: Selecting the intercom to OFF aids in current
consumption savings, important for battery powered
applications like gliding.
This selects the Microphone sidetone ON or OFF
(Default is ON). Selecting ON enables the sidetone during
transmission, which can only be heard in the headsets.
Selecting OFF removes the sidetone. To set on or off simply
rotate the F/CH control. Press the F/CH to go on to the next
option or to return to the main screen, the new values
will be stored.
Note: Selecting the SIDETONE to OFF aids in current
consumption savings, important for battery powered
applications like gliding.
This sets the HIGH point trip for the battery alert, Rotate
the F/CH control to set the upper limit. The default is 15
© XCOM Avionics 2004
and appear in the MODE screen.
www.xcom760.com
to return to the main
Page 13
