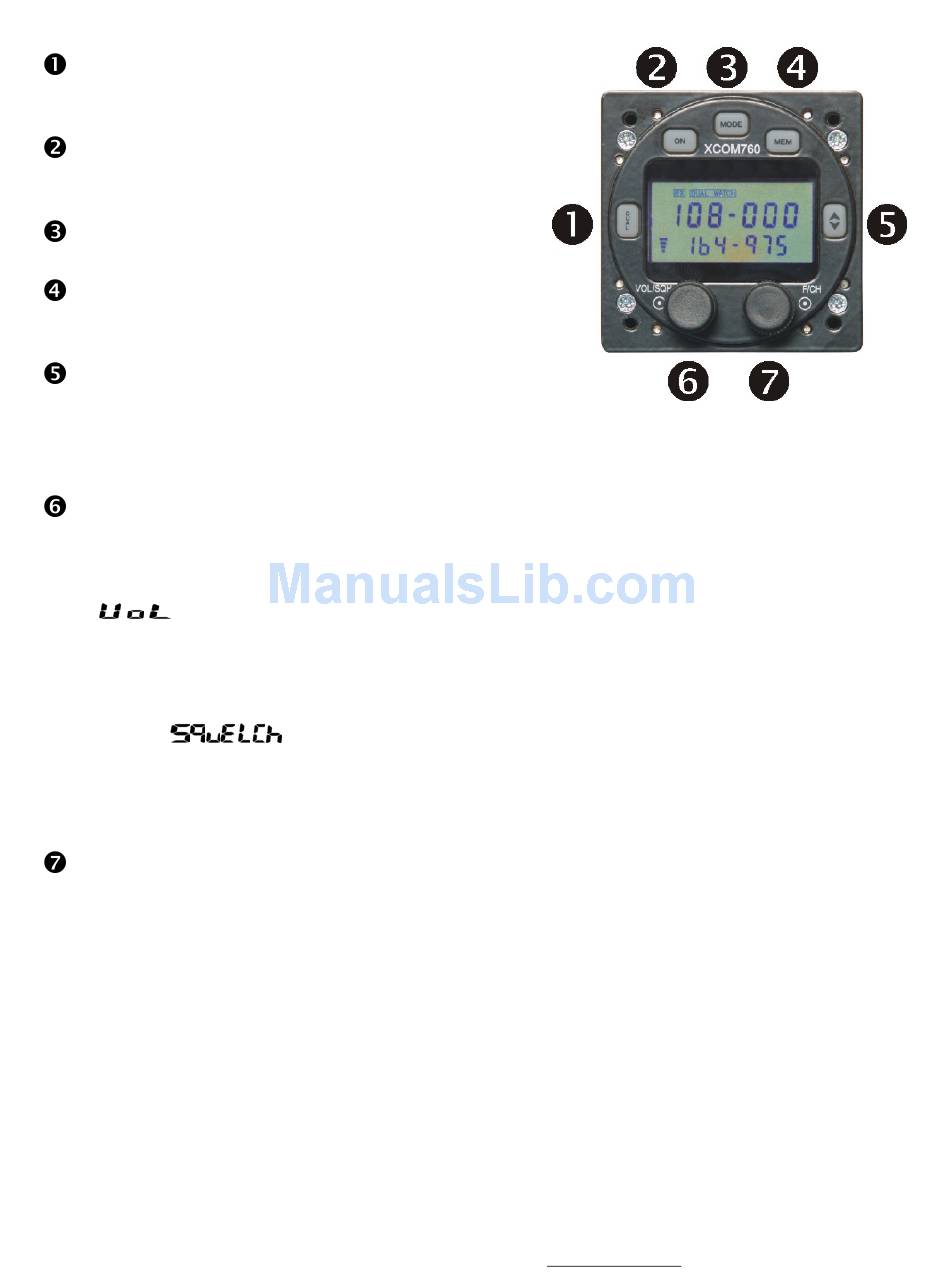

Front Panel Controls and Switches

DUAL - Press once to activate dual receive
capability, Dual Watch icon will be illuminated
in the LCD Screen, press again to de activate
ON - Press for 1 second to turn the
transceiver ON, depress for 2 seconds to turn
OFF
MODE - Activates the various different
modes and displays
MEM - Press once to access the 99 memory
locations. Press again to access the NOAA
weather channels (If enabled in setup)
Flip Flop (Transfer) Press to transfer the
bottom line to the top and visa versa. The top
frequency is the active transmit channel
(Transmit does not apply to weather and
extended receive channels)
VOL/SQH - Default is volume, simply
rotate the control left (volume goes down) or
right (volume goes up). The level is displayed
in the BAR graph on the LCD and well as the
word
To activate the squelch, press the knob in
once, rotate left to decrease and open, rotate
right to increase and close, the level is
indicated by the bar graph on the LCD as well
as the word
squelch will also illuminate the RX icon on the
LCD. After 3 seconds of no activity the control
reverts back to volume. These controls also
adjust the intercom squelch and volume.
F/CH The default is MHz, rotating left
decreases the MHz frequency and rotating right
increases. To activate the KHz, press the
control in once, rotating left decreases the KHz
whilst rotating right increases. After 3 seconds
of inactivity the control will revert back to KHz
