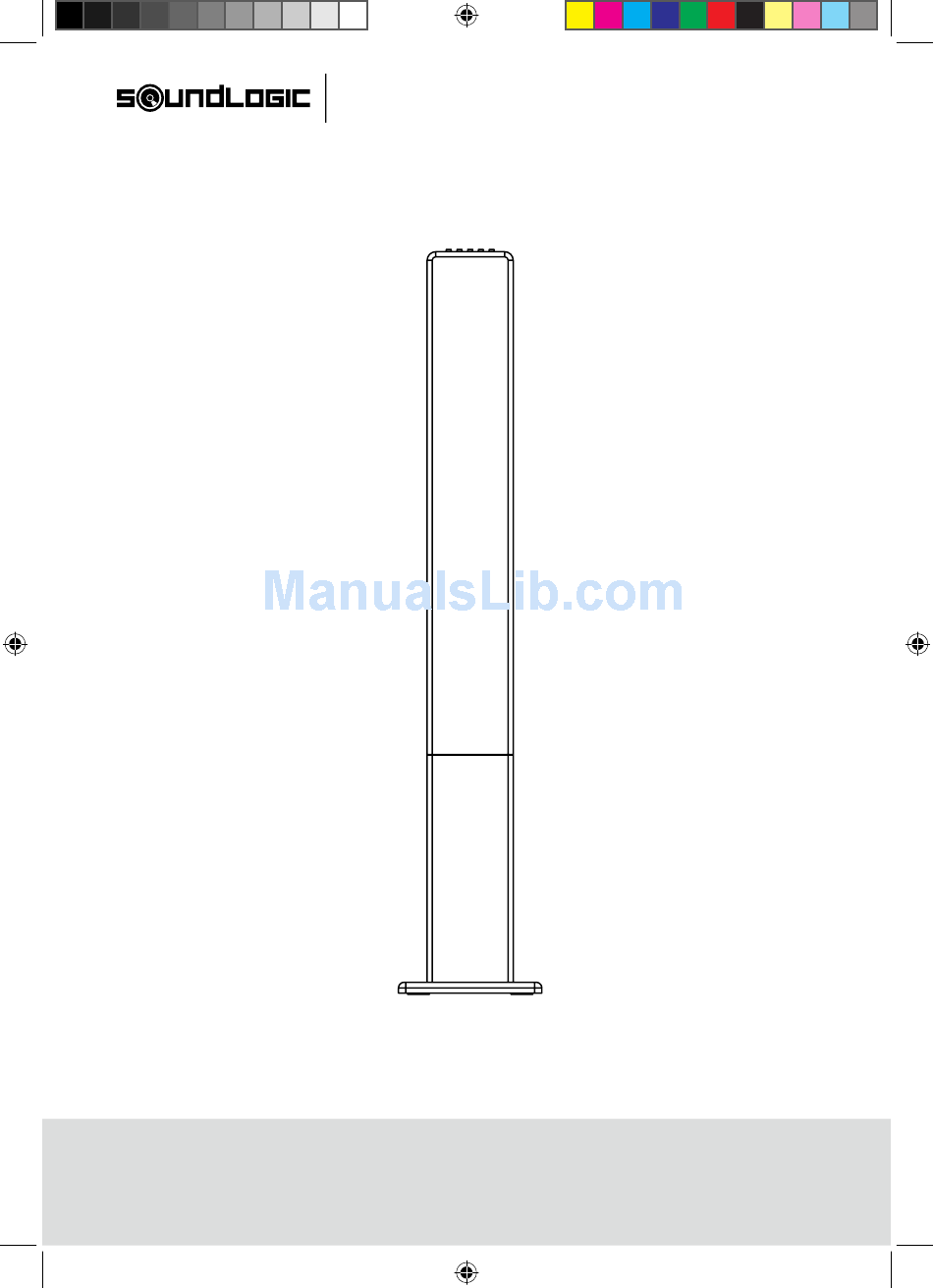

- Page 1 Instruction Manual BLUETOOTH iPAD iTOWER SPEAKER Model: BITS-1/5616 PLEASE READ BEFORE OPERATING THIS EQUIPMENT. SBI-9015说明书JLE-12239 2012-7-16 17:48:05...
- Page 2 SBI-9015说明书JLE-12239 2012-7-16 17:48:05...
-
Page 3: Warnings And Precautions
Warnings and Precautions behavior move away from any fluorescent lighting, as it may be the cause. • CAUTION: Danger of explosion if battery W A R N I N G : T O R E D U C E T H E R I S K is incorrectly replaced. -
Page 4: Important Safety Instructions
Important Safety instructions 1. Read these Instructions. Servicing is required when the apparatus has been damaged in any way, such as power- 2. Keep these Instructions. supply cord or plug is damaged, liquid has been spilled or objects have fallen into the 3. -
Page 5: Installation
INSTALLATION 1. Main Body 6. Tweeter 2. Base 7. Remote Sensor 3. Washer 8. Loud Speakers 4. Screw 9. Woofer 5. Speaker Net Fig.2 Fig.1 1. Assembled the wooden base to the main body by the supplied screws and washers as the fig.1 above. -
Page 6: Location Of Controls
LOCATION OF CONTROLS 1. POWER ON/OFF Switch 2. ANT (Antenna for FM Radio) 3. VIDEO OUT Jack 4. AUX IN 1 (Audio Input )Jacks 5. AUX IN 2 (Audio Input) Jack 6. STANDBY Indicator Standby ON/OFF Button 8. VOL (Volume) - Button 9. - Page 7 REMOTE CONTROL- LOCATION OF CONTROLS 1. STAND-BY Button 2. TUNE- / Button STANDBY MUTE 3. RANDOM Buton TUNE+ TUNE- 4. REPEAT /ST(Stereo) Button RANDOM MENU 5. Bass+/- Button REPEAT / ST SOURCE 6. VOL(Volume) +/- Button BASS 7. ▲/▼(CH+/CH-) Button 8.
-
Page 8: General Operation
BATTERIES INSTALLATION(REMOTE CONTROL) Battery Installation for the Remote Control 1. Press and lift the back cover up to open the battery compartment of the remote control. 2. Insert two AAA size batteries. Make sure to match the (+) and (–) ends of the battery compartment. -
Page 9: System Connections
3. Activate the Bluetooth function on your Bluetooth Device (Mobile Phone or Tablet). 4. Please refer to manufacturer’s instructions for instructions on enabling Bluetooth on your device. 5. Once you have activated Bluetooth on your device, select “SOUNDLOGIC ITOWER” from the list of available Bluetooth devices. - Page 10 SYSTEM CONNECTIONS Connect unit to a TV to watch video files on your iPhone/iPod/iPad. 1. Plug one end of AV cable into video input Jack(Yellow Jack) on TV and plug the other end into the video output Jack(Yellow Jack) Note: Please set TV signal input mode as AV1 or AV2. 2.
-
Page 11: Listen To Fm Radio
LISTEN TO iPod/iPhone/iPad 1. lnsert the iPod or iPhone to docking directly. To connect iPad, insert the iPad adaptor to the docking as the figure above before insert the iPad to the docking. 2. When iPod, iPhone or iPad connected, it will recharge automatically. 3. -
Page 12: Troubleshooting Guide
TROUBLESHOOTING GUIDE Check the follows before requesting service SYMPTOM POSSIBLE CAUSE POSSIBLE SOULTION AC Plug not plugged into plug it to the wall outlet properly wall outlet POWER Switch in OFF Press the POWER Switch on the rear of position unit to ON position No power Press the STANDBY Button on the unit or... -
Page 13: General Specifications
GENERAL SPECIFICATIONS Power Source: ............AC 120V~, 60Hz Power Source of Remote Control: ......3V, 2 x AAA size batteries(lncluded) Power Consumption: ..........Audio Power: Woofer............20W(RMS) Loud Speaker........... 10W x 2(RMS) Radio Coverage............. FM 87.5 - 108.0 MHz Impedance of Speakers: Woofer............. - Page 14 SBI-9015说明书JLE-12239 2012-7-16 17:48:06...
-
Page 15: Limited Warranty
LIMITED WARRANTY This manufacturer's product warranty extends to the original consumer purchaser of the product. Neither the retailer nor any other company involved in the sale or promotion of this product is a co-warrantor of this manufacturer warranty. WARRANTY DURATION: All materials and workmanship are warranted to the original consumer purchaser for a period of ninety (90) days from the original purchase date.
