Item no.: MBBS-12/6431
BLUETOOTH MINI BRICK SPEAKER
INSTRUaiON MANUAL
PLEASE READ AtL INSTftUOTONS CAREFULLY AND RETAIN FOR FUTURE USE
Getting Started
• Removi; t(u> opeaker Irom the box.
• Remove any p.ickaging from the oroduct.
• Please reiiim all packaging until you have checked and counted all the parts and the
contents ag.imsl the parts list.

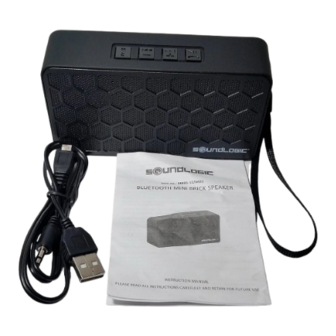

Package Contents
• Bluetooth Wireless Speaker
• USB rechargeable cable with Aux pin
• insltucnon Manual
• Laiiy.ird
Key Features
• Wireless Connecttvity using Bluetooth*2.1'»E0R Technology
• Use as Hands-Free speaker phone, with a bullt-ln microphone
• Compatible with all Bluetooth enabled devices such as Smart Phones.Tablets. etc
• Built-in TF Card Slot and USB Card Slot to play music from TF Card and USB Card respectively
• B.Smm AUX universal connectivity (or MP3/MP4 Players, iPods. computers, nelbooks,
Laptops etc.
• Wireless Streaming Range - 26 ro H Feel
SAFETY INSTRUaiONS
• Keep the unit away from heat sources, direct sunlight, humidity, water and any ot
her liquids.
• Do not operate the unit If it has been exposed to water, moisture or any other liq
uids to prevent against electric shock, explosion and/or injury to yourself and da
mage to the unit.
• Do not use the unit If it has been dropped or damaged In any way.
• Repairs to electrical equipment should only be performed by a qualified electrician.
Improper repairs may place the user at Serious risk.
• Do not use the unit with wet hands.
• Do not put objects Into any of the openings.
• Keep the unit free from dust, lint etc.
• Do not use this unit for anything other than its Intended use.
• Keep the unit out of reach of children.
• This appliance Is not a toy.
• Do not use the handset at excessive levels as damage to hearing may occur.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat
place, such as sunshine, fire or the like.
Description of Parts (Front ft Top View) Description of Parts (Rear View)
LED Light Mic
INSTRUCTIONS FOR USE
Charging the speaker
Tlie spe.ikri h.n liuili m rcrh.irgeable battery. When the battery Is drained out, device
would turn OfF .iiitoriialic.illy. Please recharge the battery every time It drains out.
Plug the Micro USB end of the included USB rechargeable cable with Aux pin into the
charging port. Plug the other end into a US8 port on your computer or other devices
made for USB charging Red iED light lllummates indicating that the device Is being charged
(I takes up to 3 hours to fully ch.t^e the device. Once the device is fully charged, LEO
Light would turn OFf.
Turning ON/OFF the Speaker
Before Turning ON the device, please ensure that the unit is fully charged.
To Turn ON the device - Slide the On/Off button to "ON" position.
To Turn OFF (lie device-Slide the On/Off Button to "OFF" position.
Connect using Bluetooth Technology (manually)
• Turn On the Speaker. You would hear a start-up tone, and Blue LED light would fla
sh rapidly, indicating that you are now in Bluetooth Pairing Mode.
• Activate (he Bluetooth function on your source device (Mobile Phone or Tablet).
Please refer to manufacturer's instructions for instructions on enabling Bluetooth
on your device.
• Search for available Bluetooth devices and you would find *SL BRICK' - Pair It urith
this device.
• If required, enter the password '0000' to pair with the device
• Wait rorfewsecondsandyouvrill hear 'Beep* sound from (he speaker, Indicating
pairing has been successful.
• Vou can now stream wireless music on your speaker through yciur source device.
Talking using the Bluetooth Speaker
Please ensure that your cell phone is paired with the Bluetooth Speaker to use the
below functions.
Furtcnon Operation Button
Answer Incoming Call incoming Call Press the MFB once to answer an Incoming call.
Reject incoming call Incoming Call long press Ihe MFBbuaon
ErtdCd^l Incoming CdH (Uiei your phcAeconvcrutQi\shiytprftStr«Mf 8 button
(ncrease Volume Dur jng d call Preu ar>d hotd the • buRon to Increase the volume
Decrease Volume During a call ^ess and hoW the • btiQon to decrease the vt^ume
Aedial last number Standby mode and Short press the B button twice
Ustening to Music Wirelessly
Please ensure that your device (iPhone, Tablet or Other Smart Phone) is paired with
the Bluetooth Speaker to stream music wirelessly. Once it Is paired, play music from
your device
Function Operation Button
Increase Volume I'l.iyiiig music
Press anri hold the ♦ button to increase Ihe volume
decrease Volume Playing muWc Press and hold the • button to increase the volume
Pause Playing music Short press the MF8 button will resume the music
Play Pausing Short press Ihe MF6 button will restdnc the music
Previous (rack Playing musK Shortpressthe -buRonwdlretumvoutotheprevious track
Next track Playing music Short press the « button wiJI take you to the next track
(Note: The above functiorrs or^ly cars be used In Bluetooth mode only. Art mdicatfort
tone wtll afert you when the volume is adjusted to ihe maximum level. In Aux mode,
besides the volume increase/decrease, you will need to control through your source device.)
Stream music from TF Card or USB Flash Drive
• Turn ON the device.
• Insert ihe TF C.-ird or USB Flash Drive preloaded with songs, Into the TF Card Slot or
USB Flash Drive Slot of the speaker respectively
• Speaker would automatically start playing songs from the TF Card or USB Flash Drive
• To Skip Tr.ick Forward - Short press the button
• To Skip Tr.ick Backwards - Short press the • button
• To Pause the Track - Short press the MFB button
