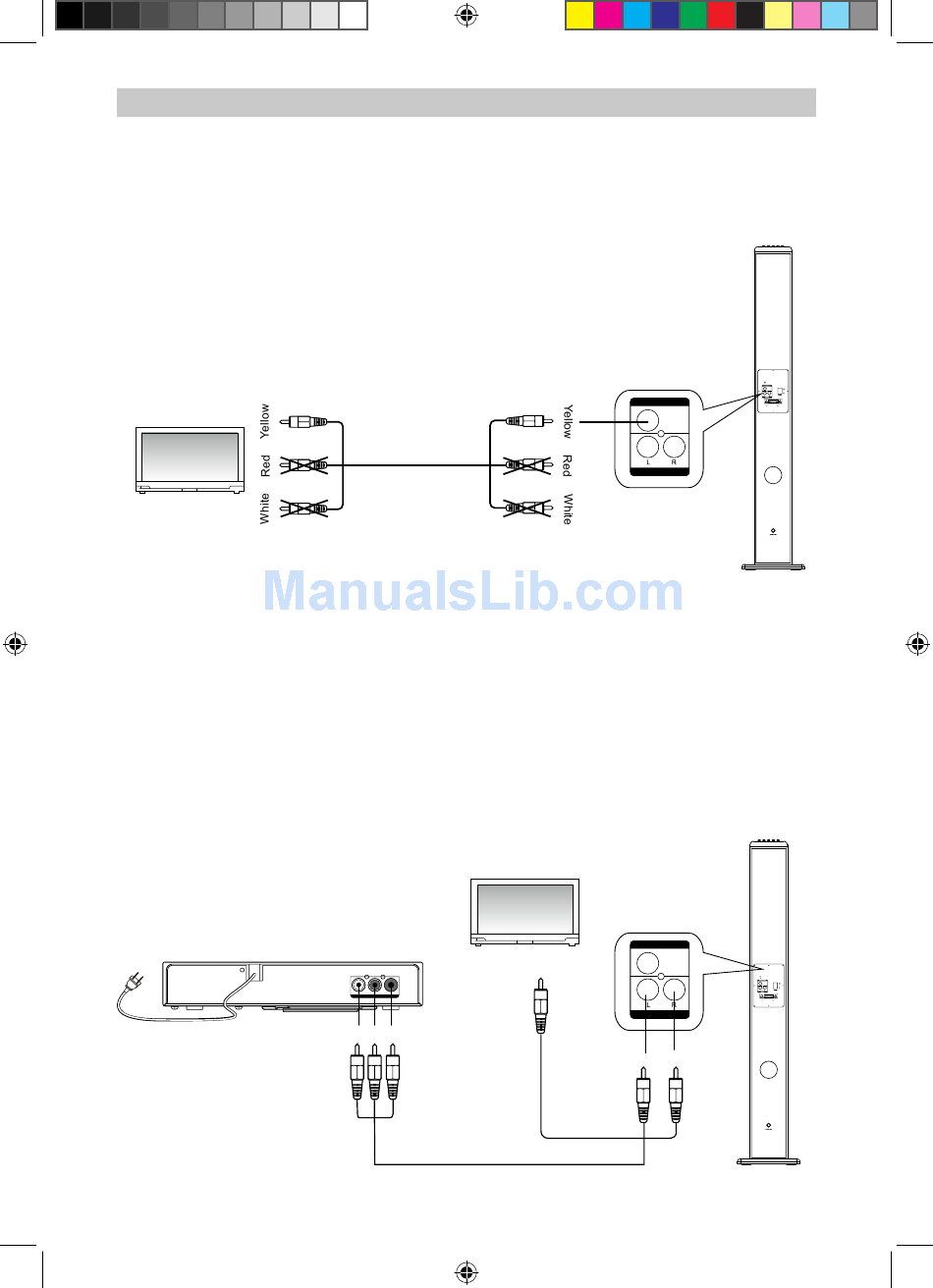

SYSTEM CONNECTIONS
Connect unit to a TV to watch video files on your iPhone/iPod/iPad.
1. Plug one end of AV cable into video input Jack(Yellow Jack) on TV and plug the other end into
the video output Jack(Yellow Jack)
Note: Please set TV signal input mode as AV1 or AV2.
2. Please put your iPhone/iPod/iPad into the top plate, and connect to iphone/ipod jack of the unit.
3. Press SOURCE button repeatedly until "IPOD" appears on the ddisplay.
4. Select the desired video files in iPhone/iPod/iPad, then press PLAY and the TV
will start playback automatically.
Television
Play Audio or Video Files in DVD Player/TV/VCR/DVR
1. Connect the AV cable to audio output jack(white jack=L, red jack=R) on DVD Player and audio
input jack on the rear of the unit.
Connect video output jack on the DVD player(Yellow Jack)to video input jack(yellow jack) on TV.
2. Press SOURCE buttton repeatedly until AUX1 appears on the display,
3. Then, the video files from DVD player will be shown trough TV and audio files will be played
via the tower stereo system at the same time.
4. This tower stereo system can also support the audio files from TV/VCR/DVR player ext, when
you connect the audio jacks via AV cable.
Connected to the DVD Player
DIGI TAL
Note: Please set TV signal
input mode as AV1 or AV2.
8
SBI-9015说明书JLE-12239 8
Note: White Cable do not input.
Red Cable do not input.
Video Jack=yelow.
AV Cable (included)
DVD Player
120V ~ 60Hz
L R VIDEO
AUDIO OUT VIDEO OUT
White
Red Yellow
AV Cable (included)
VIDEO OUT
AUX IN 1
Television
VIDEO OUT
Yellow
AUX IN 1
Red
White
