A View of KBL Dewas Manufacturing Plant

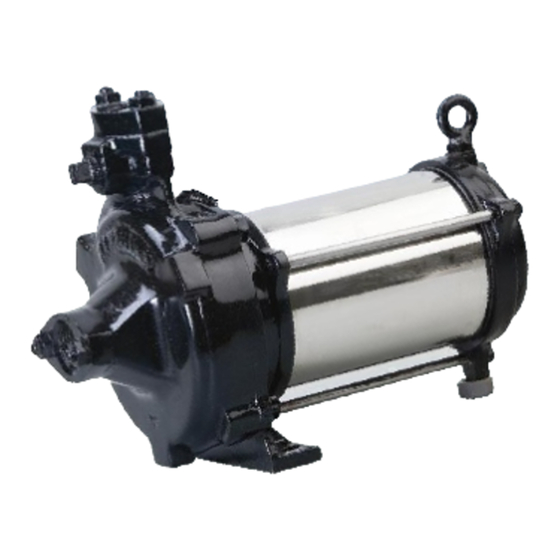

Kirloskar "KOSN Series"
Centrifugal Submersible Pump
INSTALLATION, OPERATION & MAINTENANCE MANUAL
KIRLOSKAR BROTHERS LIMITED
A Kirloskar Group Company
CORPORATE OFFICE :
"YAMUNA", Survey No. 98 (3-7), Baner,
Pune 411 045 (India)
Phone : +91 20 27214444
E-mail : kblin@kbl.co.in Visit us at : www.kirloskarpumps.com
KOSN Series
REGISTERED OFFICE :
Udyog Bhavan, Tilak Road,
Pune - 411 002 (India)
Tel. : +91 20 24444444 Fax : +91 20 24444198
E-mail : kbl@kbl.co.in
KIRLOSKAR BROTHERS LIMITED
WORKS :
A Kirloskar Group Company
Ujjain Road, Dewas - 455 001 (M.P.)
Phone : +91 7272 227401/2/5/9 Fax : +91 7272 228747
Toll Free No. 1800 103 4443
CM - 9862
06019860
Advertisement
Table of Contents
Related Manuals for KIRLOSKAR KOSN Series
Summary of Contents for KIRLOSKAR KOSN Series
- Page 1 A View of KBL Dewas Manufacturing Plant Kirloskar “KOSN Series” Centrifugal Submersible Pump INSTALLATION, OPERATION & MAINTENANCE MANUAL KIRLOSKAR BROTHERS LIMITED A Kirloskar Group Company CORPORATE OFFICE : “YAMUNA”, Survey No. 98 (3-7), Baner, Pune 411 045 (India) Phone : +91 20 27214444 E-mail : kblin@kbl.co.in Visit us at : www.kirloskarpumps.com...
-
Page 2: Table Of Contents
Congratulations..on your acquiring one of the finest pumps in the PUMP DESIGNATION KEY country. The Kirloskar Openwell Submersible New- version Series in your FEATURES & APPLICATION possession is scientifically designed by using the state of art design software OPERATING CONDITION (Pro/E, ANSYS, CFD) for better aesthetics, performance, optimum material Contents etc. -
Page 3: Handling
Operating Conditions : Pumped Liquids : Kirloskar Openwell Submersible New version Pumps are suitable only to pump thin, non-explosive liquids, not containing solid particles. The liquid must not attack the pump materials chemically. When pumping liquids with density and/or viscosity higher than that of water, suitability of motor winding with correspondingly higher outputs must figure 1.1... - Page 4 Guideline for Installation : 5.2.1 Location : The pump should be installed in horizontal position and submerged in the water more than 1 meter . This will eliminate dry run and pump will give better performance. The pump does not require any foundation ; however if installing dug cum borewell , surface should be plain .
-
Page 5: Electrical Connection
Wires and connections should be properly insulated. If not it may lead to fatal shock. Proper backup protection (reputed make starter, main switch and fuse) should 9. TROUBLE SHOOTING CHART : be used. Guideline for Starting the Pump 7.1 Check following before starting the pump : The shaft rotates freely by hand. -
Page 8: Disposal
Dismantling Procedure Remove the suction housing and delivery pipe. Unscrew the nut and remove the suction and delivery flange. Unscrew the nut and remove the delivery casing from the mounting casing . Unscrew the nyloc nut and remove washer and impeller from shaft . Remove oil seal from mounting casing. -
Page 9: Exploded View
PART LIST 13. EXPLODED VIEW Part No. Part description Qty . 0513.1 Gasket for Delivery Flange 0513 Gaske for Suction Flange 580.1 Nut for Suction Flange Stud for Del. Casing & Suc. Flange 490.1 Suction Flange 0601 Drain Plug for Casing 0590.1 Stud for Del. -
Page 10: Outline Drawing
14. OUTLINE DRAWING : KOSN - SERIES PUMP KOSN - 0520 PUMP... -
Page 11: Product Range
Product range manufactured by Kirloskar Brothers Limited, Dewas This product is warranted against manufacturing defects and workmanship Pump Series Construction Feature Drive Unit Power Rating under normal use and service for the period of 24 months from the date of...
