Summary of Contents for Ubiquiti PBE-M5-620

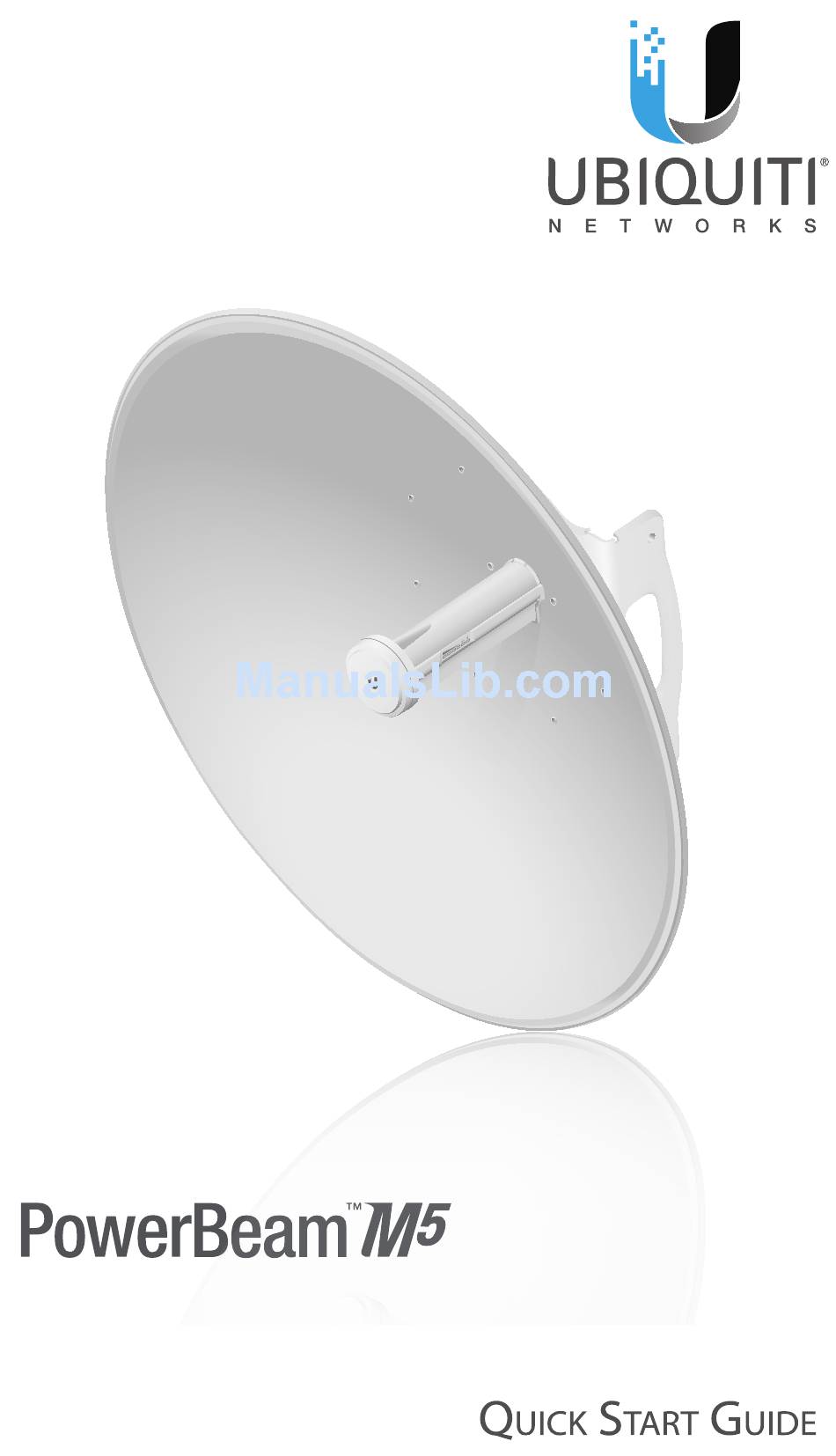

- Page 1 High-Performance Integrated InnerFeed ™ airMAX Bridge ® Model: PBE-M5-620...
-
Page 2: Package Contents
Cord Guide Mounting Bracket TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements. -
Page 3: Hardware Overview
Hardware Overview Bottom View Antenna Feed Technology Ethernet Port Reset Button Release Button Dish Reflector Mounting Bracket Alignment Pins Rear Housing Release Button Slot Cable Door Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the PowerBeam is already powered on. -
Page 4: Application Examples
LEDs Signal The default values (from left to right) are shown below: LED will light blue when the wireless signal strength is equal to or above -65 dBm. LED will light blue when the wireless signal strength is equal to or above -73 dBm. LED will light blue when the wireless signal strength is equal to or above -80 dBm. -
Page 5: Installation Requirements
AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Installation 1. Line up the Alignment Pins of the Rear Housing with the alignment holes of the Dish Reflector. - Page 6 3. Attach the Antenna Feed: a. I nsert the Antenna Feed into the Rear Housing, and push until it locks into place with a click. b. Lightly pull the Antenna Feed to ensure that it is locked into place and the Release button is fully engaged. Release Button Bottom View 4.
- Page 7 5. Attach two Hex Head Bolts, two Lock Washers, and two Flat Washers to the bottom of the Mounting Bracket. Ensure that there is a gap of 8 mm between each Flat Washer and the Mounting Bracket. Ensure that each Lock Washer is always Note: installed between the Hex Head Bolt and Flat Washer.
- Page 8 6. Attach the horizontal slot of the Support Arm to the Upper Pole Bracket using a Hex Head Bolt, Lock Washer, and Flat Washer. Ensure that the degree settings are the same Note: on both arms of the Upper Pole Bracket. Degree markings facing outward 7.
- Page 9 8. Each M8x150 Carriage Bolt includes a serrated flange nut. Remove these and use them in the next step. 9. Attach one Pole Clamp to each pole bracket. a. Insert two M8x150 Carriage Bolts into each pole bracket. b. Slide the hole of a Pole Clamp over one bolt of each pole bracket.
