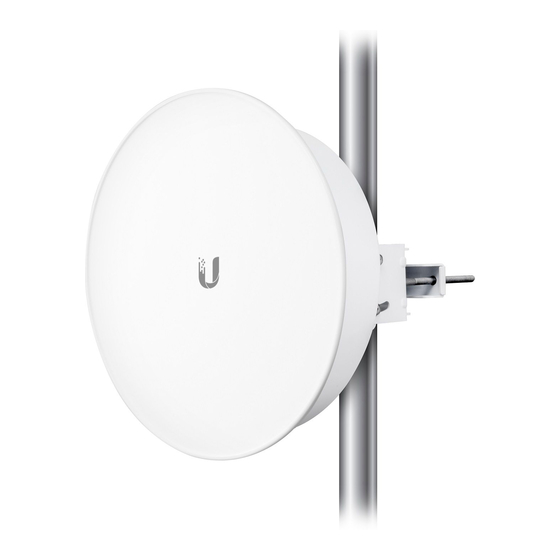

Ubiquiti PowerBeam m5 iso PBE-M5-300-ISO Quick Start Manual

5 ghz airmax bridge with 300 mm rf isolated reflector
Hide thumbs
Table of Contents

Advertisement

Quick Links

5 GHz airMAX
Bridge with
®
300 mm RF Isolated Reflector
Model: PBE-M5-300-ISO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PowerBeam m5 iso PBE-M5-300-ISO and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti PowerBeam m5 iso PBE-M5-300-ISO

Summary of Contents for Ubiquiti PowerBeam m5 iso PBE-M5-300-ISO

  • Page 1 5 GHz airMAX Bridge with ® 300 mm RF Isolated Reflector Model: PBE-M5-300-ISO...

  • Page 2: Package Contents

    Power Cord Quick Start Guide with Mounting Bracket TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

  • Page 3: Hardware Overview

    Hardware Overview Bottom View Radome Antenna Feed Ethernet Port Reset Button Release Button Reflector Mounting Bracket Alignment Pins Rear Housing Release Button Slot Cable Door...
  • Page 4 Reset Button To reset to factory defaults, press and hold the Reset button for more than 10 seconds while the PowerBeam is already powered on. Alternatively, the PowerBeam may be reset remotely via a Reset button located on the bottom of the PoE Adapter.

  • Page 5: Application Examples

    Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from the most brutal environments and devastating ESD attacks with industrial-grade shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable...

  • Page 6: Installation

    Installation 1. Align and insert the tabs of the Mounting Bracket into the slots of the Reflector. Rotate the Mounting Bracket counter-clockwise until the tabs lock into place. 2. Line up the Alignment Pins of the Rear Housing with the alignment holes of the Mounting Bracket.
  • Page 7 3. View the Reflector from the front. Ensure that the four hooks (indicated below) of the Rear Housing are fully engaged with the inner wall of the Reflector and locked into place. Important: Before proceeding, lightly pull the Rear Housing to confirm that it is locked into place. 4.
  • Page 8 5. Attach the Antenna Feed. a. Insert the Antenna Feed into the Rear Housing, and push until it locks into place with a click. b. Lightly pull the Antenna Feed to ensure that it is locked into place and the Release Button is fully engaged. Release Button Bottom View...
  • Page 9 7. Attach the Pole Clamp to the Adjustment Bracket. a. Hold the Adjustment Bracket with the clamps facing you and the Elevation Indicator Slot on the left. b. Insert the Carriage Bolts through the holes of the Adjustment Bracket. c. Slide the hole of the Pole Clamp over one bolt of the Adjustment Bracket.
  • Page 10 9. Position the Reflector assembly on the pole and secure it. a. Place the Adjustment Bracket against the pole. b. Slide the slot of the Pole Clamp over the Carriage Bolt. c. Tighten the Flange Nuts of the bolts to 25 N-m to secure the antenna to the pole.
  • Page 11 10. Align the Hash Mark on the edge of the Radome with the Slot on the bottom of the Reflector. Slot Hash Mark 11. Fit the Radome onto the Reflector. Ensure that all eight Reflector tabs fit into the gaps between the eight Radome tabs.
  • Page 12 12. Rotate the Radome clockwise to engage the Radome tabs and Reflector tabs. Ensure that all eight tabs are engaged and that the Snap Pin is seated in the slot in the bottom tab of the Reflector. Snap Pin 13. Adjust the elevation angle. a.
  • Page 13 14. Connect the other end of the Ethernet cable from the PowerBeam to the Ethernet port labeled POE on the PoE Adapter. 15. Connect an Ethernet cable from your LAN or computer to the Ethernet port labeled LAN on the PoE Adapter. 16.
  • Page 14 Mount the PoE Adapter (Optional) 1. Slide the PoE Mounting Bracket down to remove it from the PoE Adapter. 2. Place the PoE Mounting Bracket at the desired location and mark the two holes. Pre-drill the holes if necessary, and then secure the bracket using two fasteners (not included).
  • Page 15 Accessing airOS Verify connectivity in the airOS Configuration Interface. 1. Make sure that your host machine is connected via Ethernet to the PowerBeam. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.
  • Page 16 5. Select the PowerBeam Dish Reflector size: a. Click the Wireless tab. b. F rom the Antenna drop-down list, select the appropriate option. c. Click Change to save. d. Click OK to confirm. Customize additional settings as needed to complete the configuration.

  • Page 17: Installer Compliance Responsibility

    Since Ubiquiti Networks equipment can be paired with a variety of antennas and cables, the Antenna and Output Power fields are provided to the professional installer to assist in...

  • Page 18: Specifications

    Specifications PBE-M5-300-ISO Dimensions with Radome 364 x 364 x 276 mm (14.3 x 14.3 x 10.9") Weight (Mount Included) 2.55 kg (5.62 lb) Operating Frequency Worldwide: 5150 - 5875 MHz USA: 5725 - 5850 MHz Gain 22 dBi Networking Interface (1) 10/100 Ethernet Port Enclosure Outdoor UV Stabilized Plastic...

  • Page 19: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 20: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.

  • Page 21: Limitation Of Liability

    SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING.
  • Page 22 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.

  • Page 23: Industry Canada

    This radio transmitter FCC ID: SWX-NBM5HP has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.
  • Page 24 Cet émetteur radio (IC: 6545A-NBM5HP) a été approuvée par Industrie Canada pour l’exploitation avec l’antenne types énumérés ci-dessous avec le gain maximal admissible et requis l’impédance de l’antenne pour chaque type d’antenne indiqué. Types d’antenne non inclus dans cette liste, ayant un gain supérieur au gain maximal indiqué...
  • Page 25 RoHS/WEEE Compliance Statement English European Directive 2002/96/EC requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 26 Español La Directiva 2002/96/CE de la UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 27: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.

  • Page 28: Online Resources

    ©2015 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, InnerFeed, PowerBeam, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. All other trademarks are the property of their respective owners.
