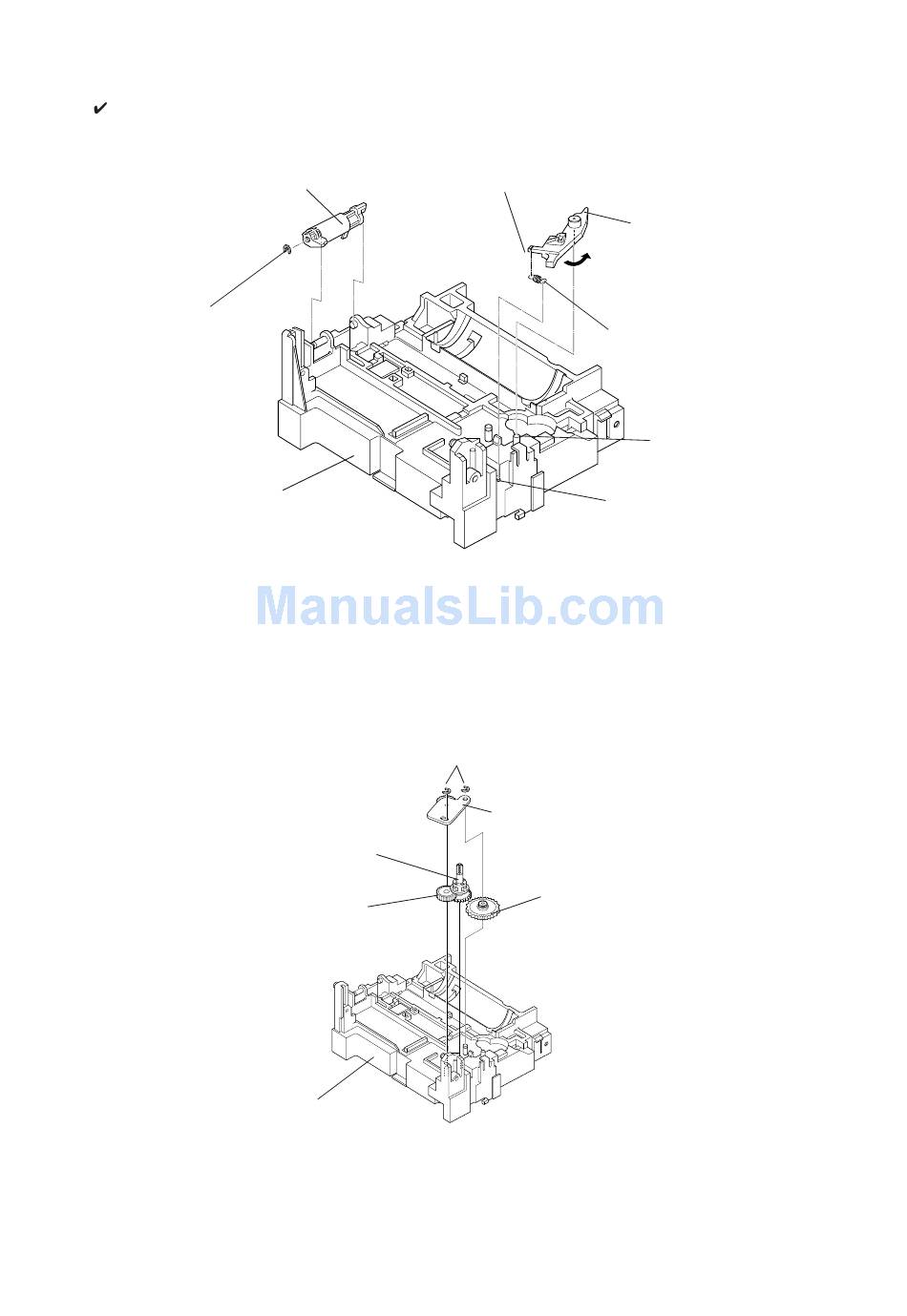

Check that the ribbon switch lever and ribbon release lever are attached in the proper
directions.
Ribbon release lever
RE (3)
Base frame assembly
4. Attach the ribbon intermediate gear to the base frame assembly.
5. Attach the ribbon transmission gear and ribbon take-up assembly together to the base frame
assembly.
6.
Attach the ribbon drive plate assembly to the base frame assembly and fix with the REs.
Base frame assembly
RE (2.3)
Ribbon take-up
assembly
Ribbon
transmission gear
— 99
Notch
Ribbon switch lever
Ribbon release spring
B
Ribbon drive
plate assembly
Ribbon
intermediate gear
—
A
