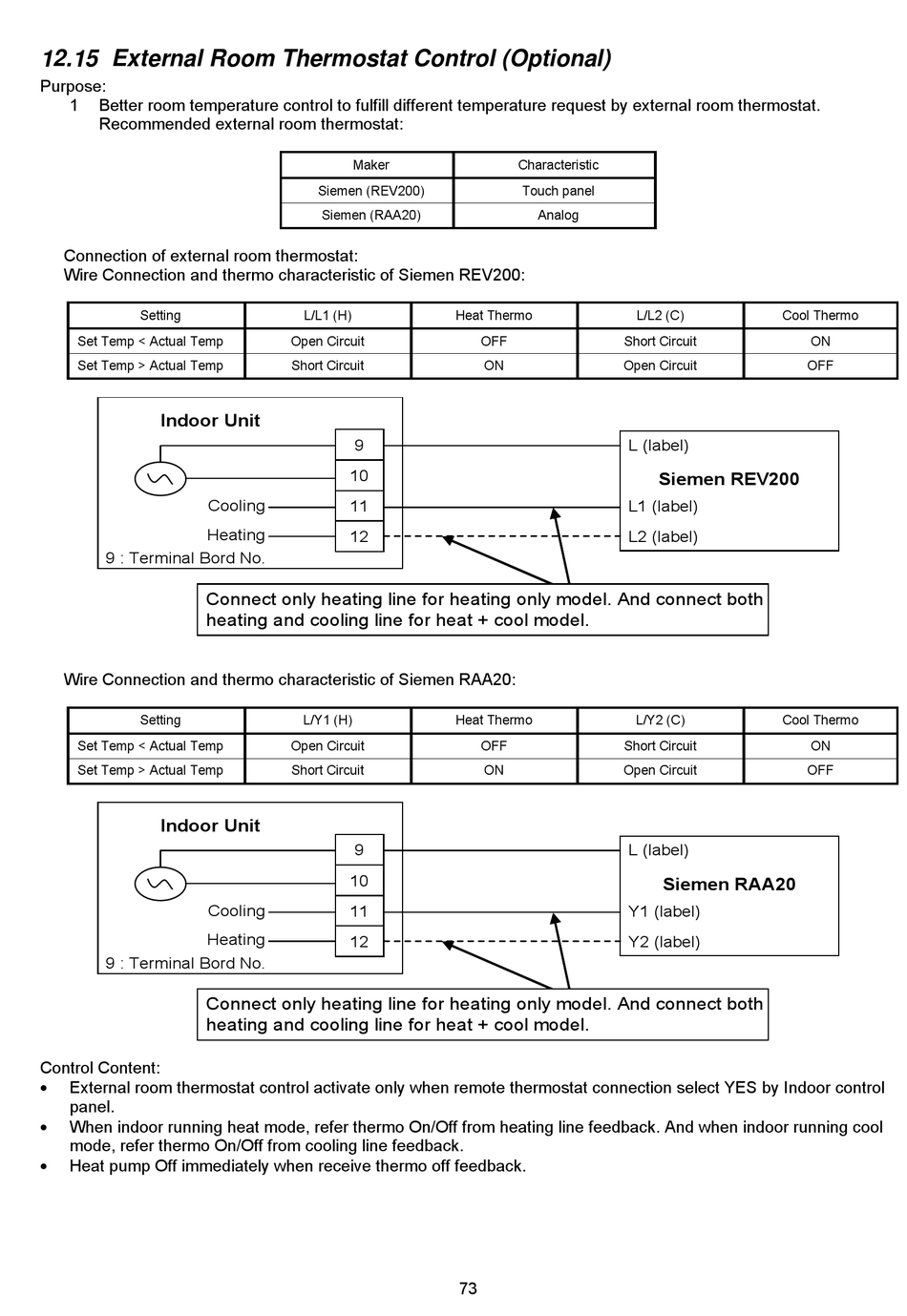

12.15 External Room Thermostat Control (Optional)

Purpose:
1 Better room temperature control to fulfill different temperature request by external room thermostat.
Recommended external room thermostat:
Connection of external room thermostat:
Wire Connection and thermo characteristic of Siemen REV200:
Setting
Set Temp < Actual Temp
Set Temp > Actual Temp
Indoor Unit
Cooling
Heating
9 : Terminal Bord No.
Connect only heating line for heating only model. And connect both
heating and cooling line for heat + cool model.
Wire Connection and thermo characteristic of Siemen RAA20:
Setting
Set Temp < Actual Temp
Set Temp > Actual Temp
Indoor Unit
Cooling
Heating
9 : Terminal Bord No.
Connect only heating line for heating only model. And connect both
heating and cooling line for heat + cool model.
Control Content:

External room thermostat control activate only when remote thermostat connection select YES by Indoor control
panel.

When indoor running heat mode, refer thermo On/Off from heating line feedback. And when indoor running cool
mode, refer thermo On/Off from cooling line feedback.

Heat pump Off immediately when receive thermo off feedback.
Maker
Siemen (REV200)
Siemen (RAA20)
L/L1 (H) Heat Thermo
Open Circuit
Short Circuit
9
10
11
12
L/Y1 (H) Heat Thermo
Open Circuit
Short Circuit
9
10
11
12
73
Characteristic
Touch panel
Analog
L/L2 (C)
OFF Short Circuit
ON Open Circuit
L (label)
L1 (label)
L2 (label)
L/Y2 (C)
OFF Short Circuit
ON Open Circuit
L (label)
Y1 (label)
Y2 (label)
Cool Thermo
ON
OFF
Siemen REV200
Cool Thermo
ON
OFF
Siemen RAA20
