Applicable Tire Diameter Capacity:
Gravity Mode :
Fixed Mode :
Dual Mode
Contact
MINOURA North American Tech Center
(for U.S. residents ONLY)
Hayward, California, U.S.A.
Phone: 1-510-538-8599 (8 am - 5 pm, Mon - Fri, PST)
Fax:
1-510-538-5899
Email: support@minourausa.com
indoor bicycle trainer
570 – 710mm
(24-inch – 700x42c)
610 – 710mm
(26-inch – 700x42c)

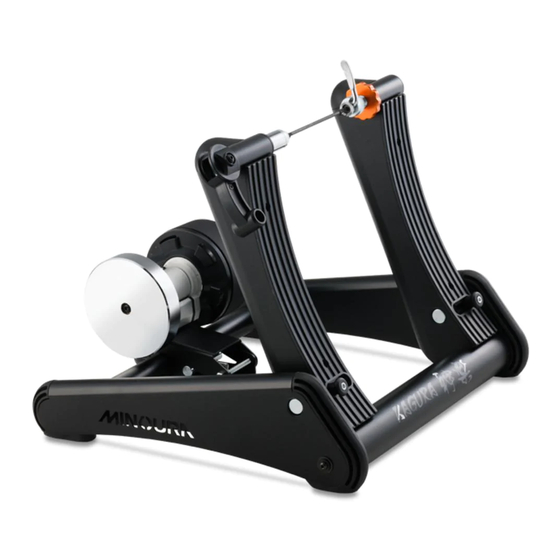

The LST9200 can be used as a gravity trainer or a fixed position trainer by operating the
lock lever.
Fixed Mode acts like a traditional trainer where the trainer stays in the same position and
the rear roller compresses the tire to achieve resistance. This is good for power training.
Gravity Mode supports the bicycle frame by the axle allowing the bike to move up and
down. Your body weight dictates contact with the roller naturally so no adjustment is needed
no matter what bike or tire you use. This also extends tire life.
If you need support, please first contact the shop you purchased this product from or contact
the distributor in your country for assistance. A list of our distributors can be found here:
http://www.minoura.jp/english/support/shop/distributor.html.
If you need further support, contact us at one of the places listed below.
i n s t r u c t i o n s m a n u a l
MINOURA Japan Headquraters
(for ALL customers)
1197-1 Godo, Anpachi, Gifu 503-2305 Japan
Phone: +81-584-27-3131
Fax:
+81-584-27-7505
Email: minoura@minoura.jp
Web:
www.minoura.jp
(ver.1.1 2017/8)
Made in Japan
Advertisement
Related Manuals for MINOURA LiveRide LST9200
Summary of Contents for MINOURA LiveRide LST9200
- Page 1 A list of our distributors can be found here: http://www.minoura.jp/english/support/shop/distributor.html. If you need further support, contact us at one of the places listed below. MINOURA North American Tech Center MINOURA Japan Headquraters (for U.S. residents ONLY) (for ALL customers) Hayward, California, U.S.A.
-
Page 2: Important Notes
Wipe the tire surface to remove any solid dust away before setting the bike on the trainer in order to maximize both the tire and the drive roller life. Minoura recommends adding 10% more air to your tire when training. - Page 3 • To protect the floor or carpet from stain and sweat during workout, we recommend you to put a sheet or specially designed mat such as the Minoura "TrainingMat4" under the trainer and bike. • If you hear a strange noise or smell something, stop using LST9200 immediately and contact the retailer where you purchased the trainer.
- Page 4 How To Setup LST9200 Required Tool : 2 x 13mm open wrench (NOT a closed type) The pillars are folded backward in the package. (Fig. A) Raise up the pillars and install the resistance unit. Lock Pin Hole for Transporting Mode Left Side Pillar Lock Pin Hole for Fixed Mode Right Side Pillar...
- Page 5 Take the resistance unit from the box (Fig. D), and install it on the Base Bracket (Fig. E). Remove the Pivot Bolt and the nut which temporally set on the Base Plate, put the plate onto the bracket, align the holes, then put the Pivot Bolt into the hole and tighten the nut.
- Page 6 Make sure the Hub Clamp Lever is lowered into its locked position and cannot be lowered any further (Fig. I-right). The Main Frame may appear slightly open but this is normal. If the frame seems too big for your bike, or open too wide, remove the bike, turn the Left Side Coupling Bolt clockwise to decrease the width slightly, and mount your bike again.
- Page 7 How To Use Gravity Mode In Gravity Mode, the pillars move freely by releasing the Lock Pin from the hole (Fig. M). The rear tire will be compressed to the drive roller at ideal pressure when applying your own weight including the bike weight automatically and directly.
- Page 8 In Fixed Mode, the bike will be supported at same height level at all times. Even if you apply load to the rear wheel, the wheel position will not change. So you need to push the Drive Roller to the tire. Correct pressure to the roller is critical. Minoura recommends that the tire compresses 3 – 4mm when properly contacting the roller.
- Page 9 The blinking red LED means the resistance power is Red LED increasing. AC Adapter Minoura does not supply instructions on how to connect or pair your trainer with your chosen training app. Please refer to the app for instructions on how to connect the trainer for use with any given app.
- Page 10 How To Use Neodymium Magnet The red lever is for sliding the neodymium magnet to generate resistance between the magnet and the steel flywheel. It does not require any electric power so it allows to use outdoors as same as the stationary trainer. 4 levels are available.
