厦 门 四 信 通 信 科 技 有 限 公 司
Xiamen Four-Faith Communication Technology Co., Ltd.

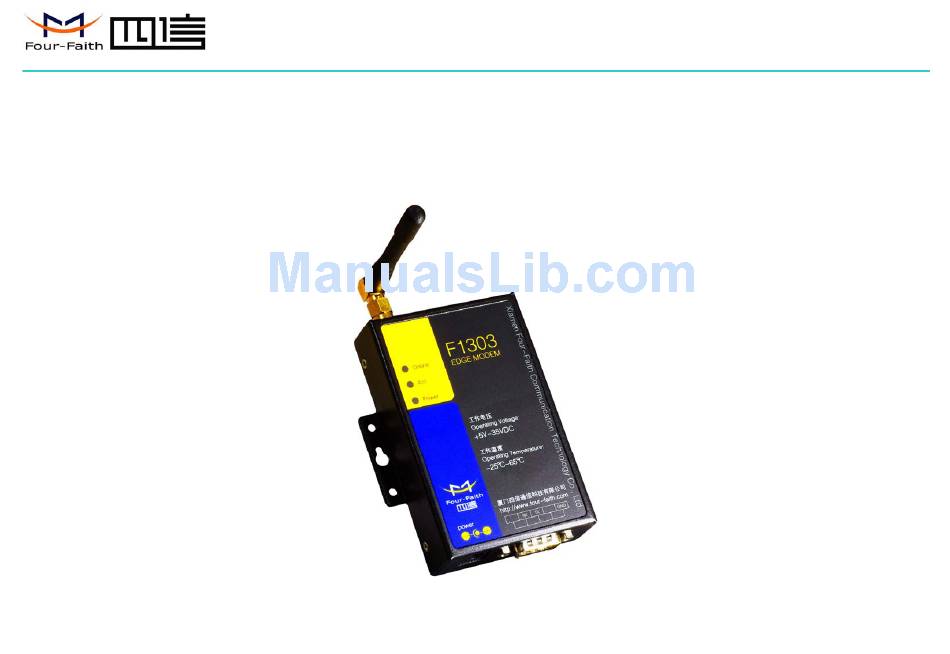

F1303 EDGE MODEM
USER MANUAL
Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China
1
Zip Code：361008
Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735
http://
www.four-faith.com
www.fourfaith.com
Advertisement
Table of Contents
Related Manuals for Four-Faith F1303
Summary of Contents for Four-Faith F1303
-
Page 1: User Manual
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. F1303 EDGE MODEM USER MANUAL Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code：361008 Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735 http:// www.four-faith.com www.fourfaith.com... -
Page 2: Table Of Contents
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Chapter 1 Brief Introduction of Product ................. 3 1.1 General ......................3 1.2 Product Features ....................3 1.3 System Component ................... 3 ... -
Page 3: Chapter 1 Brief Introduction Of Product
1.1 General EDGE Module F1303 EDGE MODEM is based on EDGE network and adopts industrial wireless EDGE module. It supports SMS, CSD and data function. It is designed with industrial standard and has been widely used on finance, water supply, environment protection, electric power system, post, weather fields and so on. - Page 4 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Interface: RS232 serial port, rates: 110~230400bits/s Indicator lights: “Power”, “ACT”, “Online” Antenna interface: standard SMA female interface, 50 ohm SIM/UIM interface: standard user card interface...
-
Page 5: Chapter 2 Installation Introduction
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Chapter 2 Installation Introduction 2.3 Installation and Cable Connection : (unit: mm) Dimension 2.1 General The MODEM must be installed correctly to make it work properly. -
Page 6: Power
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. outside), and insert card sheath back to the SIM/UIM card outlet. 2.4 Power Warning: Forbid to install SIM/UIM card when powered! The power range of the MODEM is DC 5~35V. -
Page 7: Chapter 3 Dial-Up Settings
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Chapter 3 Dial-Up Settings 3.1 MODEM Connection Connect Modem and PC with the shipped RS-232 cable as following: 2. Choose “Modems”, Press “Add” button 3.2 Dial-Up Settings... - Page 8 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 4. Manufacture choose ”Standard Modem Types”, Models choose “Standard 33600 bps Modem”, click “Next” button 3. Choose “Don’t detect my modem;I will select it from a list”, and click “Next”...
- Page 9 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 5. “Selected ports” choose the actual COM port which connects to Modem, click “Next” button. 6. click “Finish” button, return back to “Modems” page Add：J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China...
- Page 10 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 7. Choose the modem you have just installed, click “properties“ button to configure the modem driver Add： J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code： 361008 Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735...
- Page 11 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 9. Choose “Advanced” page, input Extra Initialization commands: 8. Choose “Modem” page, set Maximum Port Speed as 115200. AT+CGDCONT=1,”IP”,”CMNET” , CMNET is the Access Point Name(APN) of China, please replace it with your own APN name, click “Change Default...
- Page 12 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 10. “Port Speed” choose 115200，”Flow control” choose None, click “OK” button. 11. On the “Advanced” page, click “OK” button return to “Phone and Modems” page, click “OK”...
- Page 13 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 12. Finish installing Modem driver, It’s necessary to install the Dial-Up connection. Open “Control Panel”, double click “Network connections” Add： J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code：...
- Page 14 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 13．Click “Create a new connection” to start creating a new Dial-Up connection. 15．Choose “Connect to the Internet”, click “Next” button 14．Click “Next” button Add：...
- Page 15 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 17．Choose “Connect using a dial-up modem”, click “Next” 16．Choose “Set up my connection manually”, click “Next” Add： J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code： 361008 Tel：+86 592-6300320, +86 592-6300321, +86 592-6300322 Fax：+86 592-5912735...
- Page 16 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 19．Input the ISP Name , click “Next” button 18．Choose the Modem driver installed just now, click “Next” button Add： J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code：...
- Page 17 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 20．Input the call center number of your ISP. In China, It is *99***1#. Click “Next” button. 22．Choose “Add a shortcut to this connection to my desktop”, click “Finish” button.
- Page 18 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 23．Double click the Dial-Up shortcut on your desktop to run Dial-Up program. 25．Choose the Modem driver installed before, Click “Configure” button 24．Click the “Properties” button of the Dial-Up program Add：...
- Page 19 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 27．Click “OK” button to finish Dial-Up program configuration 26．Set “Maximum Speed [bps]” as 115200, set Hardware features as following, click “OK” button Add：...
- Page 20 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 28．Click “Dial” button to start dial 29．When dial success, There is a connection icon on the right of your taskbar. Add： J1-J2,3rd Floor,No.44,GuanRi Road,SoftWare Park,XiaMen,China Zip Code：...
-
Page 21: Chapter 4 Sms Test
厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. Chapter 4 SMS Test Modem can also be used to send and receive SMS (Short Message Service) except setting up dial-up connection. To simplify customer program, we supply a DLL(Dynamic Link Library) and sample program source code, all the SMS operations can be processed through simple API functions. - Page 22 厦 门 四 信 通 信 科 技 有 限 公 司 Xiamen Four-Faith Communication Technology Co., Ltd. 5． Input the phone to receive this test SMS, click “Send” button 7． When received SMS, It will display in the receive column 6．...
