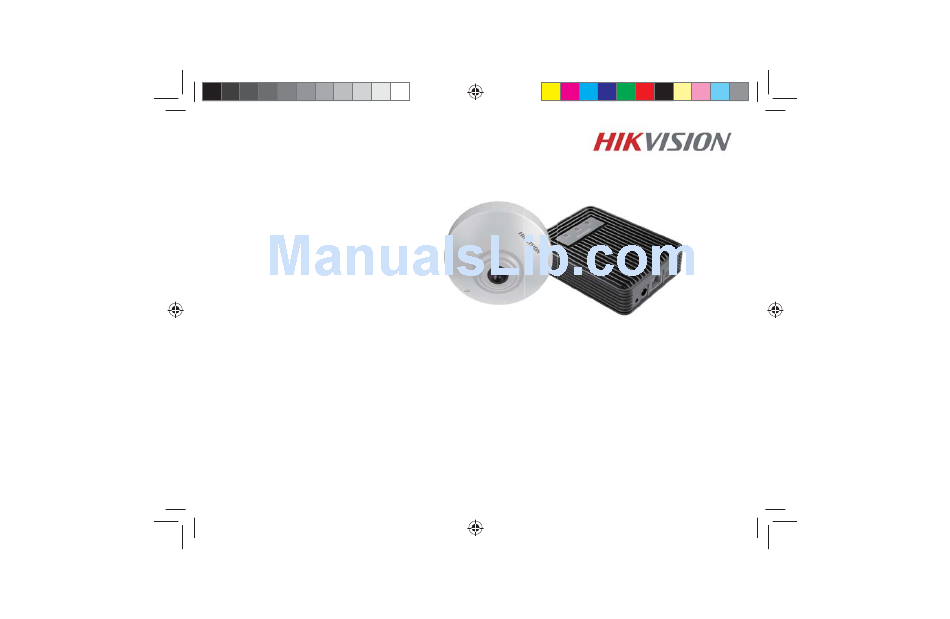

- Page 1 PEOPLE COUNTING NETWORK CAMERA INSTALLATION QUICK GUIDE V.201501 www.hikvision.com People Counting Guide_sunke.indd 1 2015/5/21 15:20:19...
- Page 2 How to define the focal length How to choose the right position The camera should be centered above the entrance door. It A standard-sized entrance door with a width of 2-3m requires is also recommended that the camera should be positioned one camera.
- Page 3 How to determine the number of How to determine the number of cameras cameras There are obstacles in camera’s FoV, such as an anti-theft The target door is wider than the camera’s range of coverage. detector, turnstile, etc. that obstruct the visibility of the people to be counted.
- Page 4 How to install the camera How to install the camera Place the double-sided adhesive tape on the back of lens unit, Place the double-sided adhesive tape on the back of lens unit, then affix it to the ceiling. then affix it to the ceiling. Please note that the lens direction should be in accordance Please note that the lens direction should be in accordance with the direction of traffic, as the image here shows.
- Page 5 How to install the camera How to install the camera Finally, attach the screws to finish the lens installation. Drill a hole with diameter of 18mm on the ceiling surface. It is recommended to keep the hole between Please note that it is important to keep the lens clean when drilling holes or inserting the screws.
- Page 6 How to install the camera How to install the camera After the lens is affixed, attach the lens cover on the unit. spring clip to affix the camera body. People Counting Guide_sunke.indd 10-11 2015/5/21 15:20:21...
- Page 7 Detection Line (yellow) Width of Coverage Line (green ） Reference Line (blue) Entrance Direction (arrow) How to configure the People Counting Camera → People Counting → Enable People Counting, Camera Calibration and OSD Overlay. one person. Tweak the width line to get precise calibration. * The reference lines cannot give a precise width reference if no record is found.
