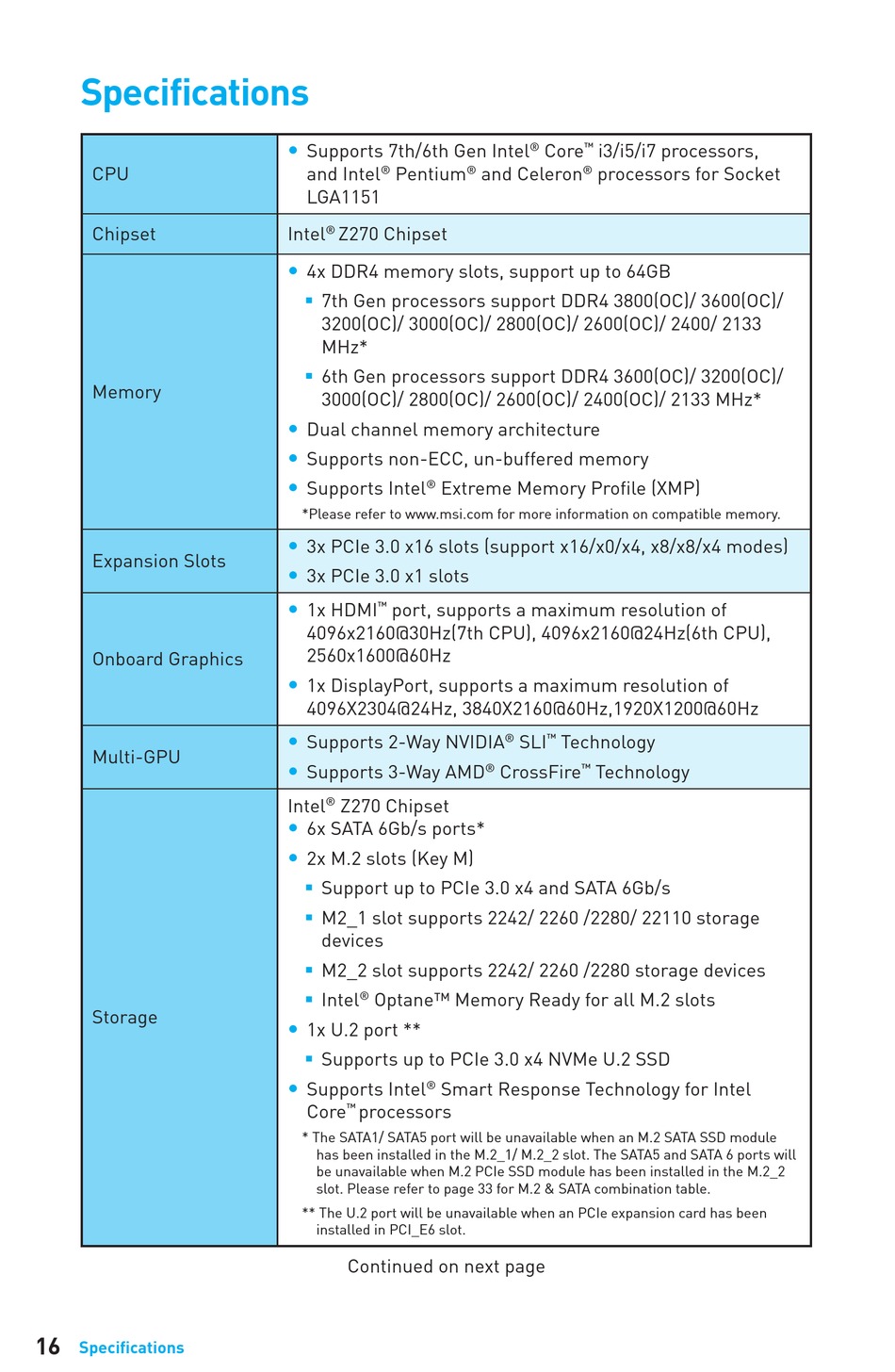

Specifications

CPU
Chipset
Memory
Expansion Slots
Onboard Graphics
Multi-GPU
Storage
16
Specifications
Supports 7th/6th Gen Intel
y
and Intel Pentium
®
LGA1151
Intel Z270 Chipset
®
4x DDR4 memory slots, support up to 64GB
y
7th Gen processors support DDR4 3800(OC)/ 3600(OC)/
ƒ
3200(OC)/ 3000(OC)/ 2800(OC)/ 2600(OC)/ 2400/ 2133
MHz*
6th Gen processors support DDR4 3600(OC)/ 3200(OC)/
ƒ
3000(OC)/ 2800(OC)/ 2600(OC)/ 2400(OC)/ 2133 MHz*
Dual channel memory architecture
y
Supports non-ECC, un-buffered memory
y
Supports Intel Extreme Memory Profile (XMP)
®
y
*Please refer to www.msi.com for more information on compatible memory.
3x PCIe 3.0 x16 slots (support x16/x0/x4, x8/x8/x4 modes)
y
3x PCIe 3.0 x1 slots
y
1x HDMI port, supports a maximum resolution of
™
y
4096x2160@30Hz(7th CPU), 4096x2160@24Hz(6th CPU),
2560x1600@60Hz
1x DisplayPort, supports a maximum resolution of
y
4096X2304@24Hz, 3840X2160@60Hz,1920X1200@60Hz
Supports 2-Way NVIDIA
y
Supports 3-Way AMD
y
Intel Z270 Chipset
®
6x SATA 6Gb/s ports*
y
2x M.2 slots (Key M)
y
Support up to PCIe 3.0 x4 and SATA 6Gb/s
ƒ
M2_1 slot supports 2242/ 2260 /2280/ 22110 storage
ƒ
devices
M2_2 slot supports 2242/ 2260 /2280 storage devices
ƒ
Intel Optane™ Memory Ready for all M.2 slots
®
ƒ
1x U.2 port **
y
Supports up to PCIe 3.0 x4 NVMe U.2 SSD
ƒ
Supports Intel Smart Response Technology for Intel
®
y
Core processors
™
* The SATA1/ SATA5 port will be unavailable when an M.2 SATA SSD module
has been installed in the M.2_1/ M.2_2 slot. The SATA5 and SATA 6 ports will
be unavailable when M.2 PCIe SSD module has been installed in the M.2_2
slot. Please refer to page 33 for M.2 & SATA combination table.
** The U.2 port will be unavailable when an PCIe expansion card has been
installed in PCI_E6 slot.
Continued on next page
Core i3/i5/i7 processors,
® ™
and Celeron processors for Socket
® ®
SLI Technology
® ™
CrossFire Technology
® ™
