IPAD Installation and Operation Manual

PIN ENTRY

When PIN entry is required, the LCD will prompt the cardholder to enter his or her PIN (usually
4 digits in length) as required by the financial institution (see figure 4-6 for a sample LCD
display). After the cardholder has entered a PIN, the ENTER key must be pressed.
.

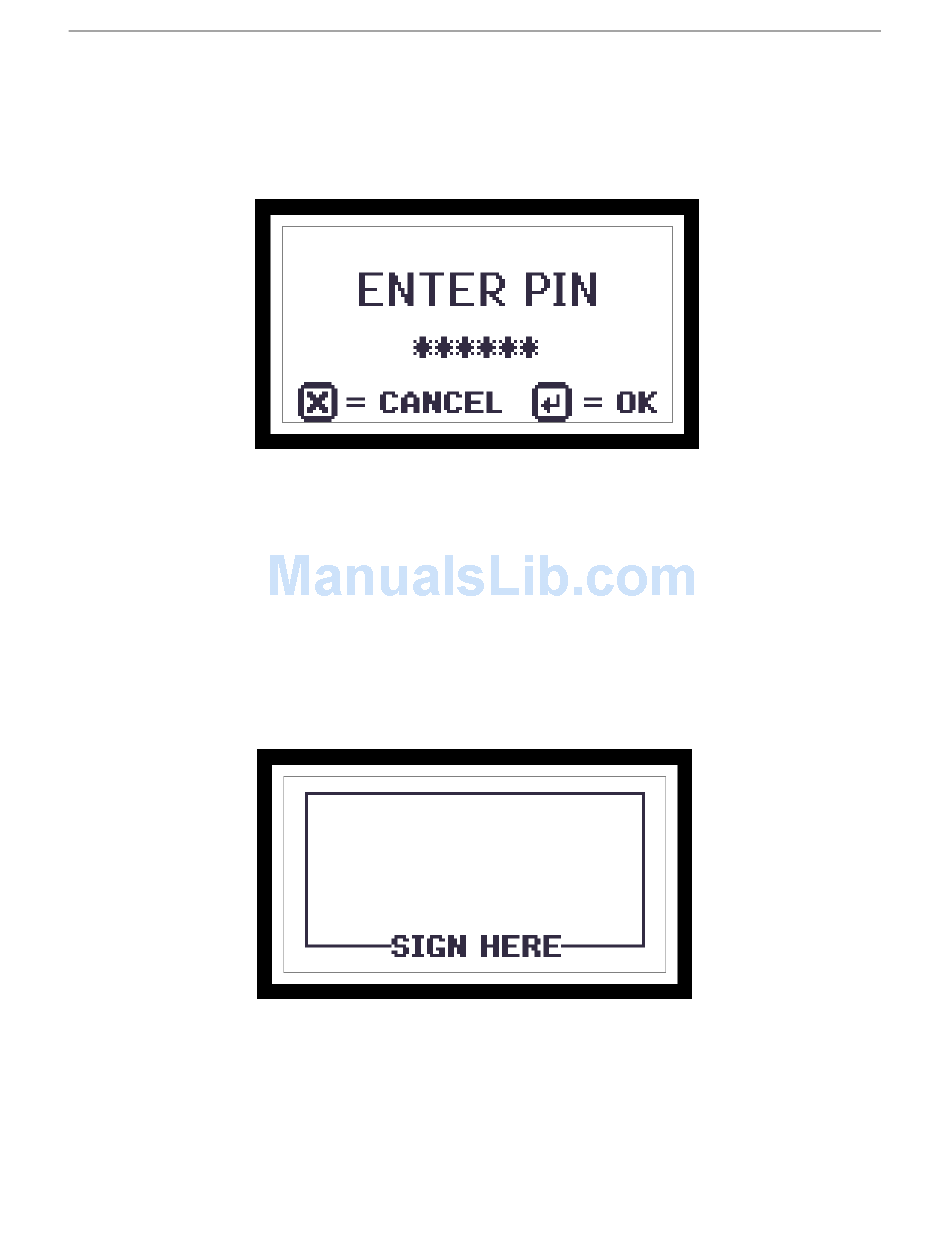

Figure 4-6. Example of User Screen to Enter PIN

If the double PIN entry option is enabled, the LCD will prompt the cardholder to reenter his or
her PIN for confirmation. The user must repeat the above process and enter the correct PIN a
second time, followed by the ENTER key.

SIGNATURE CAPTURE

If your IPAD has signature capture capability, the LCD will prompt the cardholder to enter a
signature to complete the transaction (see figure 4-7 for a sample LCD display). After the
cardholder has entered his or her signature, the ENTER key must be pressed.

Figure 4-7. Example of User Screen to Enter Signature
