PRIVACY SHIELD REMOVAL

To remove the Privacy Shield shown in Figure 1-1, follow the steps below.
1. Grasp the Privacy Shield as shown in Figure 3-3 and slowly lift the edge closest to the
LCD.
2. When the top guide pins are free of the IPAD surface as in Figure 3-2, lift the Privacy
Shield away from the IPAD at a forty-five degree angle.

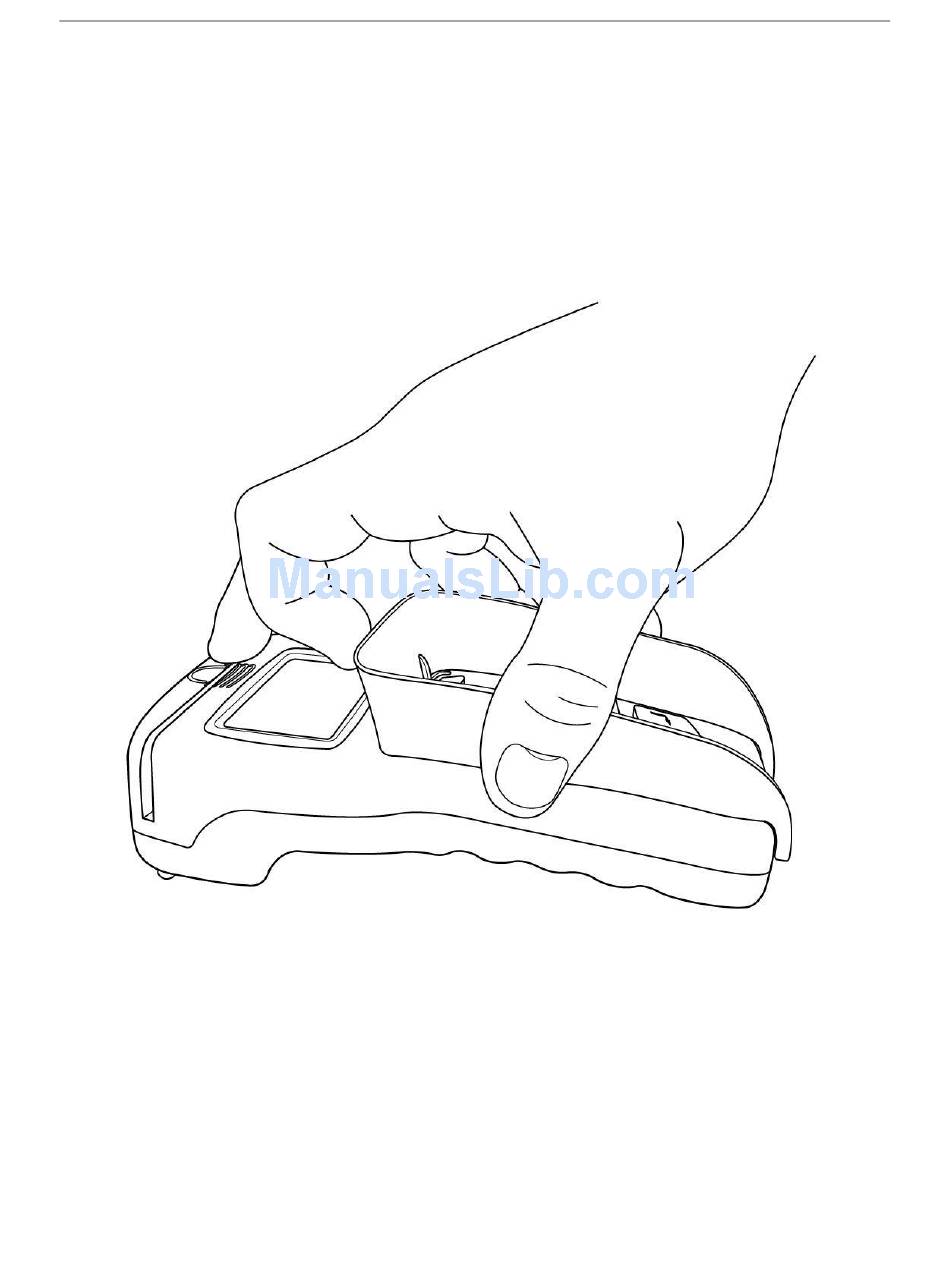

Figure 3-3. Removing the Privacy Shield

Installation
