Rivers Edge LOCKDOWN 21 Operator's Manual page 7

5/16 x 18 x 2-1/4in Bolt - Qty 4
29
26
29
2
5. Slide the TearTuff mesh backrest (23) onto the rear seat
™
supports (6) and keep towards the top. SEE FIGURE 4.
NOTE: The hook and loop attachment strips on the top and
bottom of the mesh should face backwards and the strips
on the left and right sides will face forwards.
6. Attach the backrest spreader (7) to the top most part of the
rear seat supports (6) using two 1/4-20 X 1 1/2in bolts (26)
and 1/4in flange locknuts (34). SEE FIGURE 4.
NOTE: Backrest spreader (7) must be orientated to the
underside of the rear seat supports (6), with mounting
brackets on the outside.
Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5
34
5
6
35
LOCKDOWN 21 2-MAN Ladder Stand
5/16in
1/4-20 X 1 1/2in Bolt - Qty 4
35 26
Nut
Qty 4

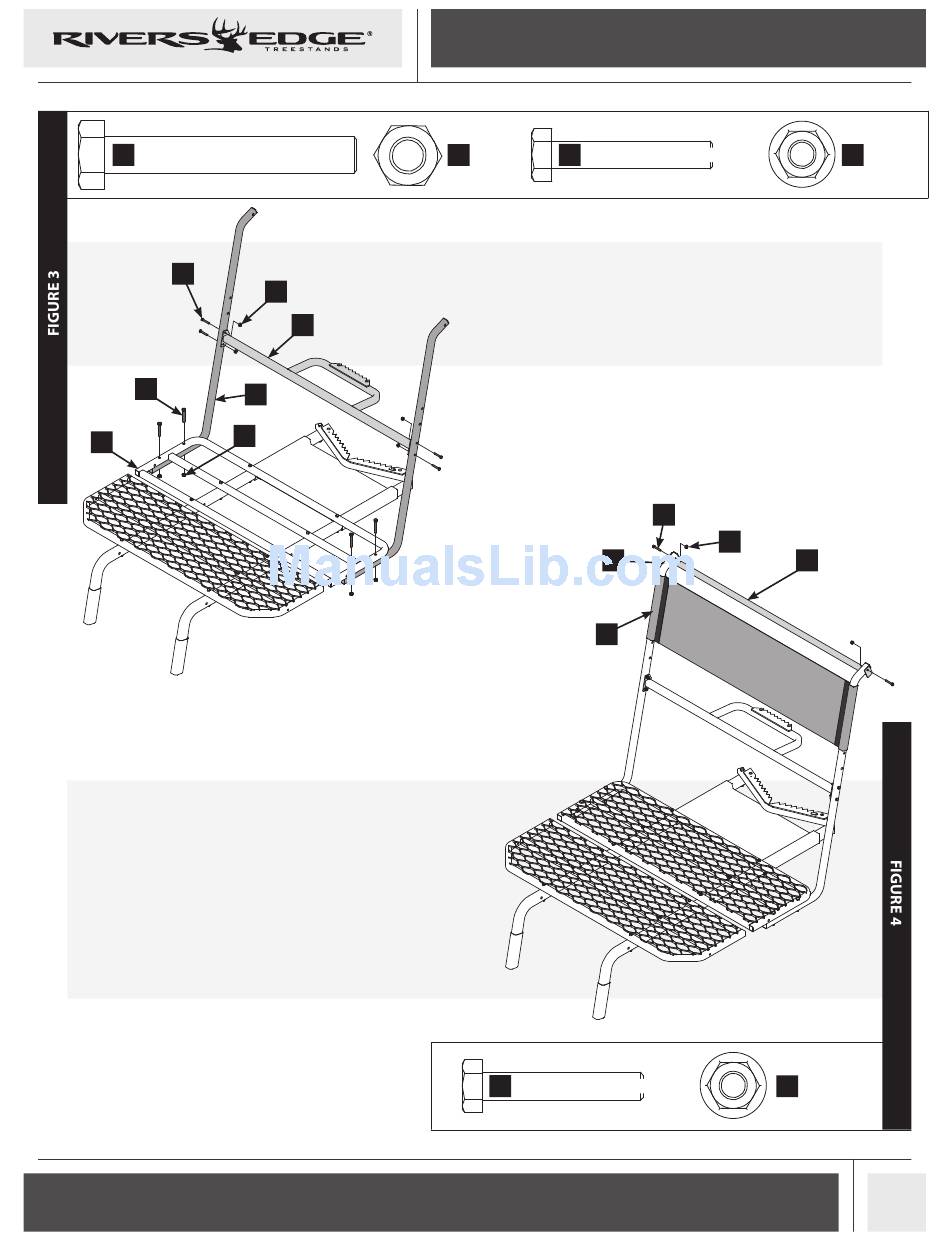

3. Attach the two rear seat supports (6) to the underside of the
rear platform (2) using four 5/16 x 18 x 2-1/4in bolts (29) and
5/16in locknuts (35). SEE FIGURE 3.
4. Attach the upper tree blade (5) to the lower set of bolt holes
on the rear seat supports (6) using four 1/4-20 X 1 1/2in bolts
(26) and 1/4in flange locknuts (34). SEE FIGURE 3.
6
23
1/4-20 X 1 1/2in Bolt - Qty 2
26
Operator's Manual
26
34
7
1/4in Nut
34
Qty 2
1/4in
34
Nut
Qty 4
7
