WE ARE HUNTERS
PRODUCT MEETS
INDUSTRY STANDARDS
RECOGNIZED BY
PARTICIPATING MEMBER
Get parts online at
www.HuntRiversEdge.com
Operator's Manual

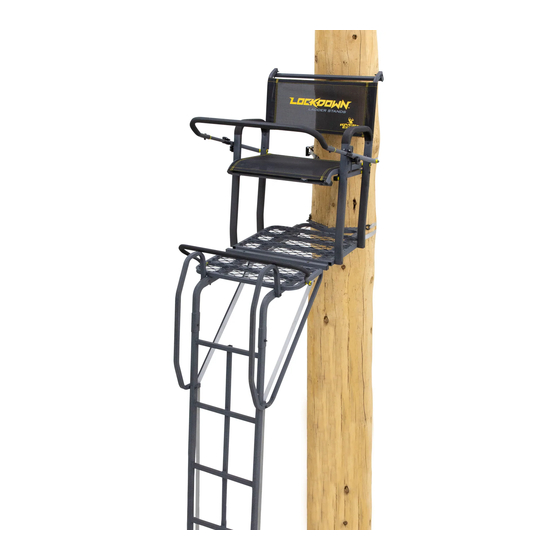

LOCKDOWN
2-MAN
Ladder Stand
MODEL RE650
Maximum Height
21' to shooting rail
Maximum Field Rating
500 lbs; no more than
300 lbs per person.
Tree Diameter Range
12" to 20"
Wear Your Harness!
© 2017 RETI
P/N: 26504
All Rights Reserved
REV2: 03/15/17
21
™
Advertisement
Table of Contents
Related Manuals for Rivers Edge LOCKDOWN 21
Summary of Contents for Rivers Edge LOCKDOWN 21
- Page 1 Operator's Manual LOCKDOWN ™ WE ARE HUNTERS 2-MAN Ladder Stand MODEL RE650 Maximum Height 21' to shooting rail Maximum Field Rating 500 lbs; no more than 300 lbs per person. Tree Diameter Range 12" to 20" Wear Your Harness! PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY Get parts online at...
-
Page 2: Table Of Contents
Instructions should be kept in a safe place and reviewed at least annually. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge® customer service department at 800-450-EDGE (3343) for assistance. -
Page 3: Warnings
Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL RE650 WARNING MAXIMUM USE HEIGHT - 21' TO SHOOTING RAIL Never jump or bounce on a treestand to seat it to the tree. -
Page 4: Inspection And Maintenance
Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand WARNING INSPECTION AND MAINTENANCE Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and BEFORE EACH USE PERFORM THE FOLLOWING: stepping onto the platform. -
Page 5: Hardware Identification Chart
Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand Bolts shown are for size reference. HARDWARE IDENTIFICATION CHART Extra hardware may be included in the parts bag. 1/4-20 X 1-1/4in Bolt - Qty 2 5/16in Washer Qty 2 M6 Yellow Washer M8 Yellow Washer... -
Page 6: Assembly Instructions
Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand ASSEMBLY INSTRUCTIONS IMPORTANT ASSEMBLY TIP: All assembly must be done in this order at ground Do not tighten any nut and bolt combinations completely level before uprighting. until all parts are assembled together! Finger tighten plus one... - Page 7 Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand 5/16in 1/4in 5/16 x 18 x 2-1/4in Bolt - Qty 4 1/4-20 X 1 1/2in Bolt - Qty 4 Qty 4 Qty 4 3. Attach the two rear seat supports (6) to the underside of the rear platform (2) using four 5/16 x 18 x 2-1/4in bolts (29) and 5/16in locknuts (35).
- Page 8 Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand 5/16in 5/16in 5/16 x 18 x 3-1/4in Bolt - Qty 4 Washer Qty 4 Qty 2 7. Attach the top of the right armrest (8) and the top of the left armrest (9) to the rear seat supports (6) using two 5/16 x 18 x 3-1/4in bolts (31), 5/16in washers (37) and 5/16in locknuts (35).
- Page 9 Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand 5/16in 5/16 x 18 x 2-1/4in Bolt - Qty 2 5/16-18 x 2-1/2in Bolt - Qty 4 Qty 6 FIGURE 8 10. Slide top ladder section (13) into J-tubes (1) and secure with two silent knobs (40).
- Page 10 Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand 1/4-20 X 1-1/4in Bolt - Qty 2 1/4-20 x 2-1/2in Bolt - Qty 2 M6 Yellow Washer 1/4in Nut Qty 6 Qty 4 Hex Cutout 15. Attach one shooting rail part A (16) to each end of shooting rail part B (17) using two 1/4-20 X 1-1/4in bolts (25) and 1/4in flange locknuts (34).
- Page 11 Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand FIGURE 19. Ladder sections are assembled on the ground in the following order: bottom ladder section (15); three middle ladder sections (14); top ladder section (13) and the treestand top. SEE FIGURE 10.
- Page 12 Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand FIGURE 12A FIGURE 12B LONG CRISS CROSS RATCHET STRAPS (46) 23. Attach the two long straps of the criss cross ratchet straps (46) to the rear of the J-tubes near the lower tree blade.
-
Page 13: Warnings
Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Double check assembly steps to be certain you have Bring ratchet strap(s) up with you in a pocket - Do Not correctly assembled this product. -
Page 14: Setup And Use Instructions
Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand SETUP AND USE INSTRUCTIONS WARNING During installation and removal of ladder treestands, you must always and properly use the included Full Body Harness (Fall Arrest System). Refer to the Full Body Harness instructions Never use a treestand on a dead, leaning, diseased or included with this product for proper use. - Page 15 Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand 10. Locate the two ratchet portions with S-hooks for the criss cross straps (46). a. With one ratchet portion of the criss cross strap (46) now in hand, feed one long strap hanging down from platform through the center slot of ratcheting mechanism and back around through tightening lever.
-
Page 16: Finished Ladder
Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand FINISHED LADDER REMOVABLE VINYL DIPPED SHOOTING RAIL FOLD-AWAY LARGE RATCHET VINYL DIPPED STRAPS FOOTREST TEARTUFF MESH ™ LADDER STORAGE SHELF HAND RAIL LONG CRISS CROSS RATCHET STRAPS SILENT KNOB ASSEMBLIES STABILIZER BAR RATCHET STRAP... -
Page 17: Notes Page
Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand NOTES Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... -
Page 18: Illustrated Parts Breakdown
Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand ILLUSTRATED PARTS BREAKDOWN MESH HIDDEN FOR CLARITY Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... - Page 19 Operator's Manual LOCKDOWN 21 2-MAN Ladder Stand PARTS LIST ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 26376 J TUBES 8909B BOLT 1/4-20 X 1-1/4IN 26381 PLATFORM REAR 48240B BOLT 1/4-20 X 1-1/2IN 26382 PLATFORM FRONT...
- Page 20 WE ARE HUNTERS Rivers Edge® Treestands, Inc. Phone: 800-450-EDGE (3343) 1160 Eighth Avenue, PO Box 755 Fax: 715-822-2124 Cumberland, WI 54829 Email: info@huntriversedge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product...
