Operator's Manual
RELAX
2-MAN
™
Ladder Stand

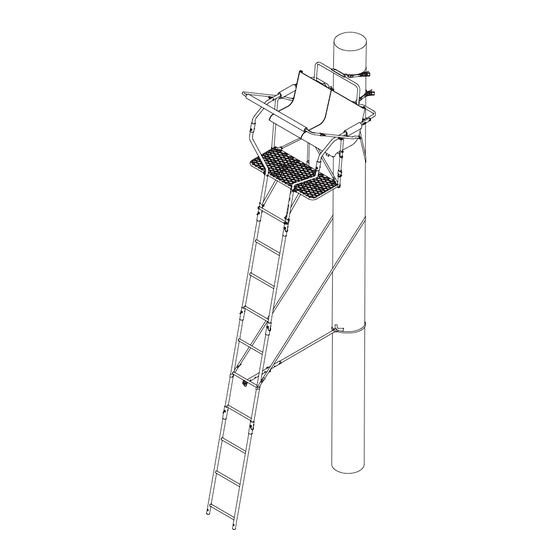

MODEL RE634
Maximum Height
17' 1" to shooting rail
Maximum Field Rating
500 lbs; no more than
300 lbs per person.
Tree Diameter Range
12" to 20"
Wear Your Harness!
© 2018 RETI
P/N: 24742
All Rights Reserved
REV5: 03/02/18
Advertisement
Table of Contents
Related Manuals for Rivers Edge RELAX RE634
Summary of Contents for Rivers Edge RELAX RE634
- Page 1 Operator's Manual RELAX 2-MAN ™ WE ARE HUNTERS Ladder Stand MODEL RE634 Maximum Height 17' 1" to shooting rail Maximum Field Rating 500 lbs; no more than 300 lbs per person. Tree Diameter Range 12" to 20" Wear Your Harness! PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY...
-
Page 2: Table Of Contents
Instructions should be kept in a safe place and reviewed at least annually. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge® customer service department at 800-450-EDGE (3343) for assistance. -
Page 3: Warnings
Operator's Manual RELAX 2-MAN Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL RE634 WARNING MAXIMUM USE HEIGHT - 17' 1" TO SHOOTING RAIL Never jump or bounce on a treestand to seat it to the tree. MAXIMUM OCCUPANCY - TWO (2) Pull up a bow, backpack, or firearm or other equipment only after being secure in the treestand and a firearm... -
Page 4: Inspection And Maintenance
Operator's Manual RELAX 2-MAN Ladder Stand WARNING INSPECTION AND MAINTENANCE Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and BEFORE EACH USE PERFORM THE FOLLOWING: stepping onto the platform. •... -
Page 5: Hardware Identification Chart
Bolts shown are for size reference. HARDWARE IDENTIFICATION CHART Extra hardware may be included in the parts bag. Quick Tip: Cut page out to use as a reference tool while following assembly instructions 1/4-20 X 1-1/2 IN Bolt - Qty 12 1/4-20 X 2 IN Bolt - Qty 8 1/4-20 Nut 1/4 IN Washer... -
Page 7: Assembly Instructions
Operator's Manual RELAX 2-MAN Ladder Stand ASSEMBLY INSTRUCTIONS IMPORTANT ASSEMBLY TIP: All assembly must be done in this order at ground Do not tighten any nut and bolt combinations completely level before uprighting. until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the Do not remove labels/warnings from product, they are lock- nut on the bolt while helping alignment of all parts! - Page 8 Operator's Manual RELAX 2-MAN Ladder Stand 5. Insert the flared rails (3) into the armrest rails (4). Secure parts together using two 1/4-20 x 2 IN bolts (23), two yellow plastic washers (29) and two 1/4-20 nuts (27). SEE FIGURE 3. 6.
- Page 9 Operator's Manual RELAX 2-MAN Ladder Stand 8. Attach the one short double flat brace (11) and the two long double flat braces (13) to the rear of the platform (1) and to the seat support (7) using four 1/4-20 x 1-1/2 IN bolts (24) and four 1/4-20 nuts (27).
- Page 10 Operator's Manual RELAX 2-MAN Ladder Stand 10. a. Attach the factory assembled seat assembly (12) to the assembled treestand frame. Insert the center seat rail of seat assembly into the welded on channels found on seat support (7) and lower tree blade frame (6) and secure using two 1/4-20 x 1-1/2 IN bolts (24) and two 1/4-20 nuts (27).
- Page 11 Operator's Manual RELAX 2-MAN Ladder Stand mesh hidden for clarity 14. Attach the platform brace supports (14) to both the platform (1) and flared rails (3) using two 1/4-20 x 2 IN bolts (23), two washers (28), and two 1/4-20 nuts (27) at the platform holes, and two 1/4-20 x 2-1/4 IN bolts (25), two washers (28), and two 1/4-20 nuts (27) at the flared rail end.
- Page 12 Operator's Manual RELAX 2-MAN Ladder Stand 16. Slide the stabilizer bar (17) into the stabilizer support bar (15) and secure using a lockpin (31). Make sure the lockpin passes through the support bar (15) and the stabilizer bar (17) at the appropriate hole to achieve the desired distance from the tree.
-
Page 13: Warnings
Operator's Manual RELAX 2-MAN Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Double check assembly steps to be certain you have Bring ratchet strap(s) up with you in a pocket - Do Not correctly assembled this product. -
Page 14: Setup And Use Instructions
Operator's Manual RELAX 2-MAN Ladder Stand SETUP AND USE INSTRUCTIONS FIGURE 13 WARNING Never use a treestand on a dead, leaning, diseased or loose barked tree, or a utility pole. Always avoid electrical power lines. Bring ratchet strap(s) up with you in a pocket - Do Not carry in your hands! During installation and removal of ladder treestands, you must always and properly use the included Full Body Harness... - Page 15 Operator's Manual RELAX 2-MAN Ladder Stand 4. a. Loop the d-loop end of the two 16' criss cross straps (36) through the loop end to form a cinch knot around the ladder rail tube. Secure beneath a step rung, at the stabilizer bar height location.
-
Page 16: Finished Ladder
Operator's Manual RELAX 2-MAN Ladder Stand FINISHED LADDER ASSEMBLED 6 FT RATCHET PLATFORM STRAPS SECTION 16 FT CRISS CROSS STRAPS TOP LADDER SECTION STABILIZER BAR 6 FT CAM STRAP MIDDLE LADDER SECTION STABILIZER BAR BOTTOM LADDER SECTION LOCKPINS Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... -
Page 17: Notes Page
Operator's Manual RELAX 2-MAN Ladder Stand NOTES: Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... -
Page 18: Illustrated Parts Breakdown
Operator's Manual RELAX 2-MAN Ladder Stand ILLUSTRATED PARTS BREAKDOWN TEARTUFF MESH HIDDEN FOR CLARITY 28 4 9 29 27 25 28 28 14 29 23 MESH HIDDEN FOR CLARITY Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... - Page 19 Operator's Manual RELAX 2-MAN Ladder Stand PARTS LIST ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 14119 PLATFORM 48153B BOLT 1/4-20 X 2 IN 14120 TUBE L SUPPORT 48240B BOLT 1/4-20 X 1 1/2 IN 14121 RAIL FLARED LADDER 48271B BOLT 1/4-20 X 2-1/4 IN...
- Page 20 WE ARE HUNTERS Rivers Edge® Treestands, Inc. Phone: 800-450-EDGE (3343) 1160 Eighth Avenue, PO Box 755 Fax: 715-822-2124 Cumberland, WI 54829 www.HuntRiversEdge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product...
