WE ARE HUNTERS
PRODUCT MEETS
INDUSTRY STANDARDS
RECOGNIZED BY
PARTICIPATING MEMBER
Get parts online at
www.HuntRiversEdge.com

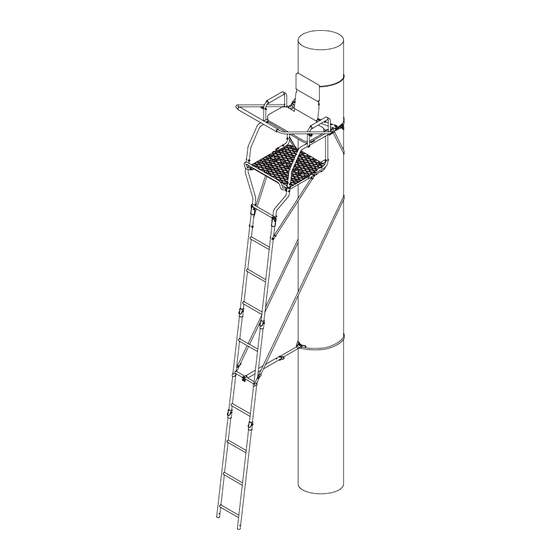

Operator's Manual
XL
Ladder Stand
MODEL RE648
Maximum Height
18' to shooting rail
Maximum Field Rating
300 lbs
Tree Diameter Range
12" to 20"
Wear Your Harness!
© 2017 RETI
All Rights Reserved
REV2: 04/12/17
™
P/N: 24132
Advertisement
Table of Contents
Related Manuals for Rivers Edge XL Ladder Stand
Summary of Contents for Rivers Edge XL Ladder Stand
- Page 1 Operator's Manual ™ WE ARE HUNTERS Ladder Stand MODEL RE648 Maximum Height 18' to shooting rail Maximum Field Rating 300 lbs Tree Diameter Range 12" to 20" Wear Your Harness! PRODUCT MEETS INDUSTRY STANDARDS RECOGNIZED BY Get parts online at ©...
-
Page 2: Table Of Contents
Instructions should be kept in a safe place and reviewed at least annually. If for any reason you have a problem with your product, DO NOT return to the retailer, contact the Rivers Edge® customer service department at 800-450-EDGE (3343) for assistance. -
Page 3: Warnings
Operator's Manual XL Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE ASSEMBLY STOP MODEL RE648 WARNING MAXIMUM USE HEIGHT - 18' TO SHOOTING RAIL Never jump or bounce on a treestand to seat it to the tree. MAXIMUM OCCUPANCY - ONE (1) -
Page 4: Inspection And Maintenance
Operator's Manual XL Ladder Stand WARNING INSPECTION AND MAINTENANCE Always lean forward as you climb and attach your harness to the tree before securing the platform to the tree and BEFORE EACH USE PERFORM THE FOLLOWING: stepping onto the platform. -
Page 5: Hardware Identification Chart
Operator's Manual XL Ladder Stand Bolts shown are for size reference. HARDWARE IDENTIFICATION CHART Extra hardware may be included in the parts bag. 1/4-20 X 1-1/4" Bolt - Qty 1 1/4" Nut 5/16" Nut 5/16" Wing Nut Qty 8 Qty 24 Qty 1 1/4-20 X 2-1/4"... -
Page 6: Assembly Instructions
Operator's Manual XL Ladder Stand ASSEMBLY INSTRUCTIONS IMPORTANT ASSEMBLY TIP: Do not tighten any nut and bolt combinations completely until all parts are assembled together! Finger tighten plus one turn of a wrench only! This will temporarily hold the lock nut on the bolt while helping alignment of all parts! After all parts are assembled together, all nut &... - Page 7 Operator's Manual XL Ladder Stand 7. Slide the flared platform rails (8) into the seat side rails (9). Insert two 5/16-18 x 1-3/4" bolts (23) and finger tighten with two 5/16" nuts (32). SEE FIGURE 4 8. Attach the footrest (16) to the flared platform rails (8) and front platform (6) using two 5/16 x 18 x 3-1/4"...
- Page 8 Operator's Manual XL Ladder Stand 18. Assemble the horizontal stabilizer bar as follow: a. Slide the stabilizer bar (12) into stabilizer bar extension tube (13) and secure together with spring lock pin (30). SEE FIGURE 8 NOTE: Spring lock pin (30) must go through both the horizontal stabilizer bars at the appropriate hole to achieve the desired distance from the tree.
-
Page 9: Warnings
Operator's Manual XL Ladder Stand READ AND UNDERSTAND THE FOLLOWING WARNINGS BEFORE SETUP AND USE STOP WARNING WARNING Double check assembly steps to be certain you have Always maintain three (3) points of contact when correctly assembled this product. climbing a ladder treestand. Proper three-point contact... -
Page 10: Setup And Use Instructions
Operator's Manual XL Ladder Stand SETUP AND USE INSTRUCTIONS FIGURE 10 During installation and removal of ladder treestands, you must always and properly use the included Full Body Harness (Fall Arrest System). Refer to the Full Body Harness instructions included with this product for proper use. - Page 11 Operator's Manual XL Ladder Stand 4. a. Loop the d-loop end of the two 16' criss cross straps (42) through the loop end to form a cinch knot around the ladder rail tube. Secure beneath a step rung, at the stabilizer bar height location.
-
Page 12: Illustrated Parts Breakdown
Operator's Manual XL Ladder Stand ILLUSTRATED PARTS BREAKDOWN 18 23 7 Mesh Hidden for Clarity Mesh Hidden for Clarity Check for parts online at www.HuntRiversEdge.com or call 800-450-EDGE (3343) M-F 8-5... -
Page 13: Parts List
Operator's Manual XL Ladder Stand PARTS LIST ITEM # PART # DESCRIPTION QTY. ITEM # PART # DESCRIPTION QTY. 24146 TOP LADDER SECTION 19847 6MM X 50.8MM ROUND LOCKPIN 24145 LADDER SECTION 48752B 1/4 IN NUT 23703 TOP LADDER RUNG... - Page 14 WE ARE HUNTERS Rivers Edge® Treestands, Inc. Phone: 800-450-EDGE (3343) 1160 Eighth Avenue, PO Box 755 Fax: 715-822-2124 Cumberland, WI 54829 Email: info@huntriversedge.com *All weights, specifications and features are approximate and are subject to change without notice. Due to continuous product improvements, product images may not be exact. Warning labels in some product...
